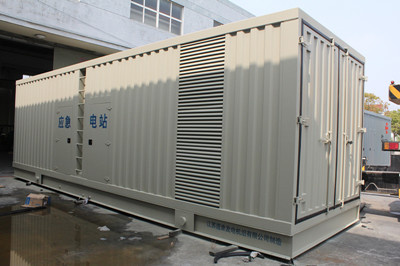

Super Silent 880kW/1100kVA Diesel Generator for Government (GDC1100*S)
Scope of Supply:
General Technical Data:
1. Engine: UK Perkins industrial diesel engine
2. Alternator: Leroy Somer, Stamford, Marathon
3. Output range: 7-2000kw prime
4. Frequency: 50 & 60Hz
5. Speed: 1500 or 1800rpm
6. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire
7. Voltage: 220/380V, 230/400V, 240/415V, etc
8. Automatic digital control panel, auto start with AMF function
Genset Features:
1. UK Perkins industrial diesel engine
2. Radiator 40° C max, fans are driven by belt, with safety guard
3. Leroy Somer, Stamford, Marathon
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8.10-hour operation base tank
9. Mould case circuit breaker
10.24V DC start motor and storage battery
11.24V charge alternator
12.24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards.
15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Engine Features:
1. UK Perkins industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. Stamford, Leroy Somer, Marathon
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6.1m<80DBA / 7m<70DBA
Control Panel:
1. Automatic control panel (AMF), LCD display
Contact: Ms Vicki Yuan
| Perkins Diesel Generating Set |
|
| MODEL | GDP1100*s |
| Standby Power(50Hz) | 1375KVA |
| Prime Power(50Hz) | 1100KVA |
| ENGINE DATA |
| Brand and Model: | Perkins 4012-46TWG2 |
| Air Intake System: | Turbocharge |
| Fuel System: | AD type fuel pump |
| Cylinder Arrangement: | 4 in line |
| Displacement: | 3.9L |
| Bore and Stroke: | 102×120mm |
| Compression Ratio: | 17.5:1 |
| Rated RPM: | 1500rpm |
| Max. Standby Power at Rated RPM: | 1200KW |
| Governor Type: | Electronic |
| Exhaust System |
| Exhaust Gas Flow: | 14.8m3/min |
| Exhaust Temperature: | 497 |
| Max Back Pressure: | 10kPa |
| Air Intake System |
| Max Intake Restriction: | 6.2kPa |
| Burning Capacity: | 5.9m3/min |
| Fuel System |
| 110% Standby Load Consumption: | 14.7L/h |
| 100%(Prime Power) Load Consumption: | 13.1L/h |
| 75%(Prime Power) Load Consumption: | 9.8L/h |
| 50%(Prime Power) Load Consumption: | 6.7L/h |
| 25%(Prime Power) Load Consumption: | 3.8L/h |
| Oil System |
| Oil Pan Capacity (Max/Min): | 9.5/8.5L |
| Max. Oil Temp. Permitted in Oil Pan: | 121 |
| Cooling System |
| Total Coolant Capacity: | 24L |
| Thermostat: | 83-95 |
| Max Water Temperature: | 100 |
| ALTERNATOR DATA |
| Rated Power: | 60KW |
| Frequency and Speed: | 50HZ / 1500 RPM |
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
| Power Factor: | 0.8 |
| Protection Grade: | IP22 |
| Altitude: | ≤1000m |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| | | | | | | | | |
| GENERATING SET DATA |
| Certificate Approved: | Euro CE, ISO9001, ISO14001 |
| Voltage Regulation: | ≥±5% |
| Voltage Regulation, Stead State: | ≤±1% |
| Sudden VoltS Warp: | ≤-20%----+25% |
| Voltage Stable Time: | ≤6S |
| Frequency Regulation, Stead State: | ≤5% |
| Frequency Waving: | ≤0.5% |
| Sudden Frequency Warp: | ≤-10%---+12% |
| Silent Type Size: | 2440(mm)×1060(mm)×1680(mm) |
| Silent Type Weight: | 1450kg |
| Control Panel: | UK Deepsea Manual Control Panel (DSE501K) |
