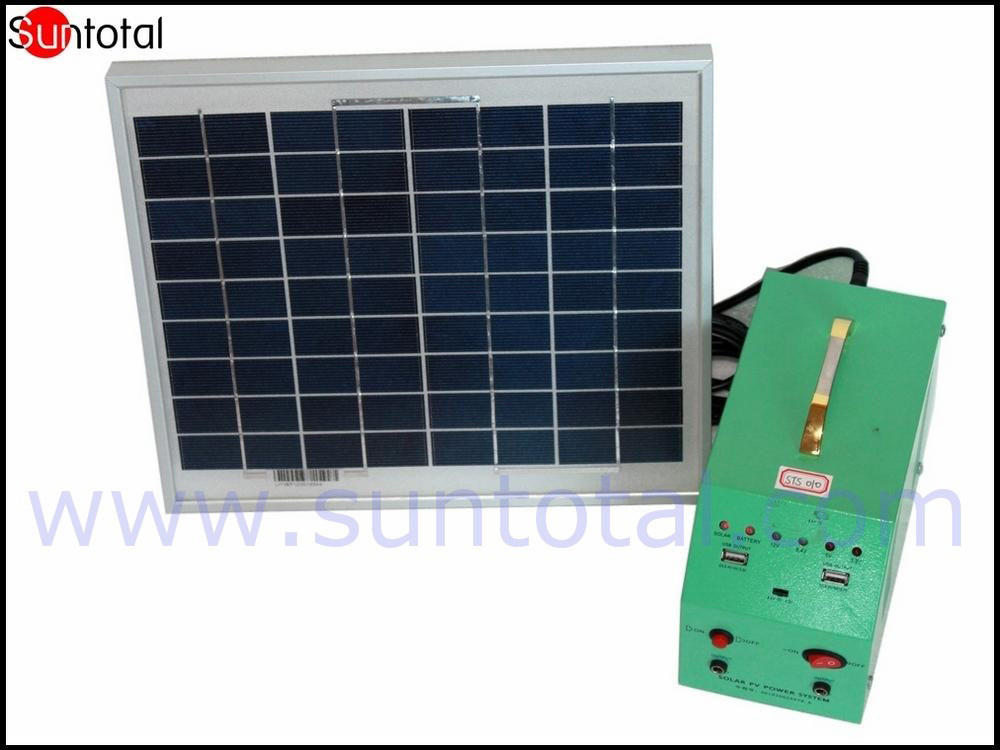

Sun Energy Solar Power Station 10W
Advantages:
Sun Energy Solar Power Station 10W the greenest and renewable energy in the world, it's more and more popular all over the world, and solar power system has many advantages:
1. Sun Energy Solar Power Station 10W operating cost is low, almost no maintenance, no spare parts, no additional fuel.
2. Sun Energy Solar Power Station 10W equipment can be run automatically, suitable for use in unattended stations.
3. Sun Energy Solar Power Station 10W
Does not contain any moving parts, the system can work continuously more than twenty years.
4. Sun Energy Solar Power Station 10W
Has good modularity, can be customized according to the specific needs of the load current, future expansion.
5. Sun Energy Solar Power Station 10W is very stable DC output voltage.
6. Sun Energy Solar Power Station 10W installation don't need power or road access, it's very easy to be installed in the off-grid area.
Model No. |
MOQ (unit) |
Solar Panel |
Battery capacity |
Controller |
Input |
Output |
Accessory |
Size (mm) |
Net weight (kg) |
STS005 |
20 |
5W; 5m wire |
12V
4.5AH |
12V
3A |
DC*1 |
USB*2 3.3V/5V/8.4V;
12V DC*2 |
12V 1W LED*2;
Lamp Holder *2;
Mobile charger adaptor*4 |
In one carton:
328*213*243 |
Carton Weight: 4.26Kg |
STS010 |
20 |
18V 10W; 5m wire |
12V
7AH |
12V
3A |
DC*1 |
USB*2 3.3V/5V/8.4V;
12V DC*2 |
12V 3W LED*2; Lamp Holder *2; Mobile charger adaptor*4 |
Solar panel:
280*365*25
System box:
196*167*288 |
Solar panel: 1.38Kg
System box: 4.30Kg |
STS018 |
20 |
18W |
12V
12AH |
12V
3A |
DC*1 |
USB 3.3V/ 5V8.4V *2;
DC 12V *2 |
12V 3W LED*1; Lamp Holder 1; |
Solar panel:
350*440*30
System box:
281*187*282 |
Solar panel: 2.08Kg
System box: 5.82Kg |
STS020 |
20 |
18V 20W; 5m wire |
12V
12AH |
12V
3A |
DC*1 |
USB*2 3.3V/5V/8.4V;
12V DC*2 |
12V 3W LED*2;
Lamp Holder *2;
Mobile charger adaptor*4 |
Solar panel:
350*440*30
System box:
281*187*282 |
Solar panel: 2.44Kg
System box: 5.88Kg |
STS030 |
20 |
18V 30W; 5m wire |
12V
17AH |
12V
3A |
DC*1 |
USB*2 3.3V/5V/8.4V;
12V DC*2 |
12V 5W LED*2;
Lamp Holder *2;
Mobile charger adaptor*4 |
Solar panel:
350*770*30
System box:
338*196*373 |
Solar panel: 3.52Kg
System box: 8.66Kg |
Item |
MOQ (unit) |
Solar Panel |
Battery capacity |
Controller |
Inverter |
Input |
Output |
Accessory |
Size (mm) |
Net weight (kg) |
STS060 |
20 |
18V 60W |
12V
38AH |
12V
6A |
350W,
modified sine wave |
DC*1
AC*1 |
USB*2; DC*2;
AC*3
3.3V 5.0V 8.4V 12V 110V 220V 240V |
12V 1W LED*2, 3W*1, 5W*1;
Lamp Holder *4;
Mobile charger adaptor*4 |
Solar panel:
530*1010*45
System box:
492*329*457 |
Solar panel: 7.20Kg
System box: 22.86Kg |
STS080 |
20 |
18V 80W |
12V
65AH |
12V
8A |
350W,
modified sine wave |
DC*1
AC*1 |
USB*2; DC*2; AC*3
3.3V 5.0V 8.4V 12V 110V 220V 240V |
12V 1W LED*1, 3W*1, 5W*2;
Lamp Holder *4;
Mobile charger adaptor*4 |
Solar panel:
530*1310*45
System box:
628*348*461 |
Solar panel: 9.37Kg
System box: 33.40Kg |
STS100 |
20 |
18V 100W |
12V
100AH |
12V
10A |
500W,
modified sine wave |
DC*1
AC*1 |
USB*2; DC*6; AC*3
3.3V 5.0V 8.4V 12V 16V 19V 24V
110V 220V 240V |
12V 1W LED*2, 3W*2, 5W*2;
Lamp Holder *4;
Mobile charger adaptor*4 |
Solar panel:
690*1155*45
System box:
625*351*549 |
Solar panel: 10.50Kg
System box: 47.04Kg |
STS160 |
20 |
18V 80W*2 |
12V
150AH |
12V 16A |
1000W,
modified sine wave |
DC*1
AC*1 |
USB*2; DC*6; AC*3
3.3V 5.0V 8.4V 12V 16V 19V 24V 110V 220V 240V |
12V 1W LED*2, 3W*2, 5W*2;
Lamp Holder *4;
Mobile charger adaptor*4 |
Solar panel:
530*1310*80
System box:
748*351*549 |
Solar panel: 18.55Kg
System box: 68.50Kg |
STS200 |
20 |
18V 100W*2 |
12V
200AH |
12V 40A |
1000W,
modified sine wave |
DC*1
AC*1 |
USB*2; DC*6; AC*3
3.3V 5.0V 8.4V 12V 16V 19V 24V 110V 220V 240V |
12V 1W LED*2, 3W*2, 5W*2;
Lamp Holder *4;
Mobile charger adaptor*4 |
Solar panel:
690*1155*80
System box:
826*400*488 |
Solar panel: 20.8Kg
System box: 91.70Kg |
Guangzhou Suntotal Group Co., Ltd. Integrates in developing and producing solar LED street light. Our solar LED street light is specially good for the area where enjoys a lot of sunshine but lacks of electricity. Plenty of our products have been exported to Bangladesh, Burma, Vietnam, Africa, Middle East, and so on.
Guangzhou Suntotal Group Co., Ltd. Invested 50 million RMB to build up a 207 ha industial zone in Dongguan City in 2004, which includes the product research and production. Suntotal Group Limited subsidiary, Guangzhou Suntotal Engergy Technology Co. Ltd. Is established in 2008, which is responsible for domestic and overseas business development.
We are committed to create a green living environment, always stand in the forefront of world science and technology, and always to principal of developing new energy source course as our own mission. We lead and promote the development of solar energy business, and promise to contribute a force to promote China new energy and healty living environment.
