Features
High surge current capability

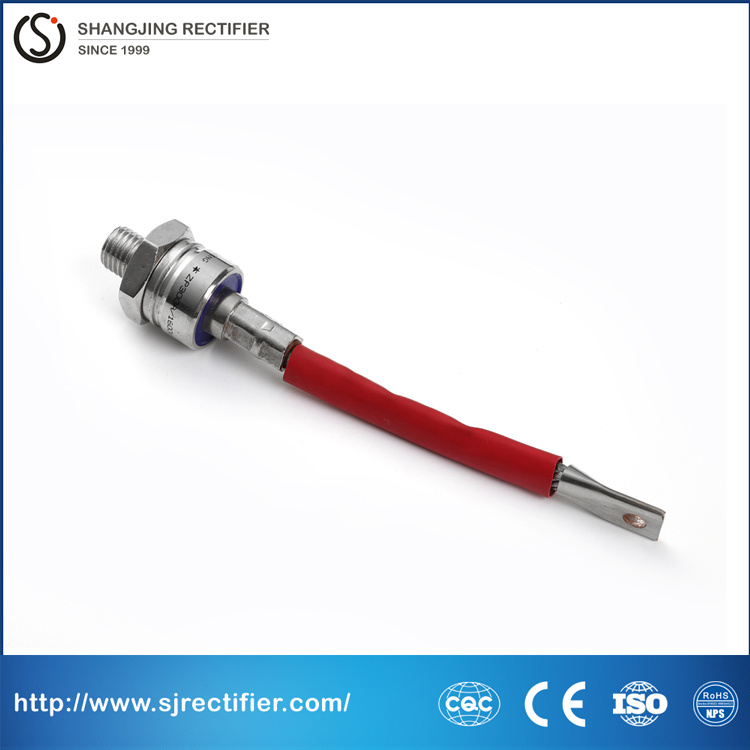

Stud cathode and stud anode version
Wide current range
Inch device version available
Typical Applications
Battery charges
Converters
Power supply
Machine tool controls
Welders
Motor controls
Lighting circuits
| Type | VRRM | IRRM | IF(AV) | IF(RMS) | IFSM | VFM/IFM | Tj | Rjc | M2 | Wt | Outline |
|
| Tc55° C |
| 10ms | 25° C |
|
|
|
|
| V | mA | A | A | kA | V/A | ° C | ° C /W | kN | kg |
| D212-10(X) | 100-1200 | 3 | 10 | 15 | 0.25 | 1.25/31 | -40
~
+150 | 2.700 | 0.9-1.1 | 0.006 | RSD1 |
| D212-16(X) | 100-1200 | 3 | 16 | 25 | 0.27 | 1.25/50 | 2.000 | 0.9-1.1 | 0.006 |
| D212-25(X) | 100-1200 | 3 | 25 | 39 | 0.34 | 1.25/78 | 1.250 | 0.9-1.1 | 0.006 |
| D222-32(X) | 100-1200 | 5 | 32 | 50 | 0.46 | 1.25/100 | 1.000 | 1.4-1.8 | 0.015 | RSD2 |
| D222-40(X) | 100-1200 | 5 | 40 | 62 | 0.55 | 1.25/125 | 0.800 | 1.4-1.8 | 0.015 |
| D232-50(X) | 100-1600 | 6 | 50 | 76 | 1.20 | 1.25/157 | 0.600 | 5.0-6.2 | 0.027 | RSD3 |
| D232-63(X) | 100-1600 | 6 | 63 | 96 | 1.40 | 1.25/198 | 0.500 | 5.0-6.2 | 0.027 |
| D232-80(X) | 100-1600 | 5 | 80 | 125 | 1.50 | 1.25/250 | 0.400 | 5.0-6.2 | 0.027 |
| D141-100(X) | 100-1600 | 20 | 100 | 180 | 2.20 | 1.25/314 | 0.400 | 6-10 | 0.090 | RSD4 |
| D151-125(X) | 100-1600 | 20 | 125 | 195 | 3.00 | 1.25/392 | 0.300 | 10-20 | 0.165 | RSD5 |
| D151-160(X) | 100-1600 | 20 | 160 | 300 | 4.50 | 1.25/502 | 0.240 | 10-20 | 0.165 |
| D161-200(X) | 100-1800 | 40 | 200 | 400 | 5.50 | 1.25/602 | 0.150 | 20-30 | 0.250 | RSD6 |
| D161-250(X) | 100-1800 | 40 | 250 | 480 | 6.40 | 1.25/785 | 0.140 | 20-30 | 0.250 |
| D161-320(X) | 100-1800 | 40 | 320 | 520 | 7.50 | 1.25/1005 | 0.130 | 20-30 | 0.250 |
| D171-400(X) | 100-2400 | 50 | 400 | 725 | 14.25 | 1.25/1256 | 0.085 | 20-30 | 0.465 | RSD7 |
| D171-500(X) | 100-2400 | 50 | 500 | 760 | 14.0 | 1.25/1500 | 0.080 | 25-35 | 0.465 |
