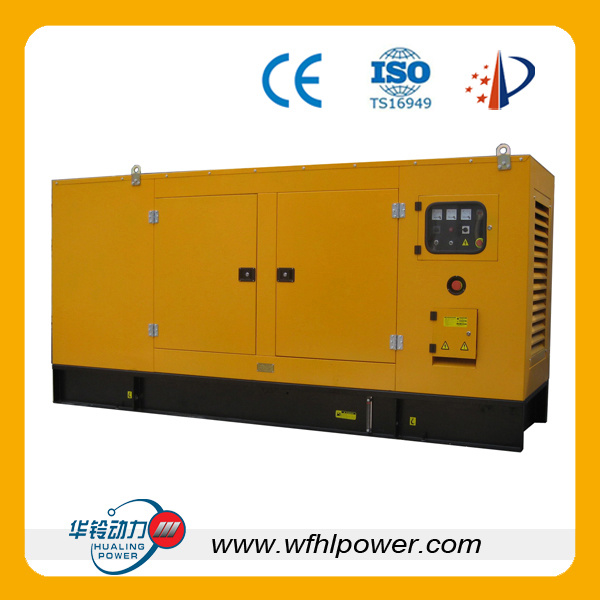

STEYR Diesel Generator
1.12 years experience
2. STEYR, Stamford etc famous brand
3.CE, ISO
Control panel is simple and intuitive to operate.
Highly efficient alarms and pre-set protections notify the operator of daily checks.
A digital control panel (optional on many competitor models) is standard on all generators, offering excellent functionality and simplicity of use.
Designed for simple serviceability
Fully bunded basetank as standard on all generators throughout the range.
Generator base will hold 110% of total generator fluids (fuels, lubricants and coolants).
All service items (filters, radiator, oil change, battery) are easily accessible through large
Doors or dismountable panels in the bodywork.
Large doors provide comfortable access for mechanical or electrical checks.
Easy access for cleaning and a fast-draining fuel tank.
Service interval guaranteed at 400 hours, dependent upon the quality of fuel used.
|
Output range |
20kw ----800kw |
|
Noise level |
Below 65/75db at 7m (soundproof type) |
|
Engine brand |
Cummins ,perkins ,ricardo , detuz, weichai, jichai etc |
|
Engine type |
Water cooling, 4 stroke, direct injection |
|
Alternator |
Stamford , marathon , leroy somer, Yidaneng etc |
|
type |
Brushless , insulation class: H |
|
Frequency |
3% |
|
Frequency at stable state |
0.5% |
|
Frequency deviation at instantaneous state |
≤+10% |
|
Frequency return time |
≤3s |
|
Voltage deviation at stable state |
≤±1% |
|
Voltage deviation at instantaneous state |
≤±20% |
|
Voltage return time |
≤4s |
|
Voltage modulation |
≤0.3% |
|
Starting system |
Dc alternator |
|
Short circuit protection |
MCCB air switch |
|
Cooling system |
Water cooling |
|
Automatic alarm system |
High water temperature |
|
Low oil pressure |
|
Over load |
|
Battery charging failure |
|
Operating display |
Unit voltage, tri-phase load current and frequency display |
|
Water temperature ,oil pressure display |
|
Fuel level, fuel temperature display |
|
Fuel tank |
For 8 hours using |

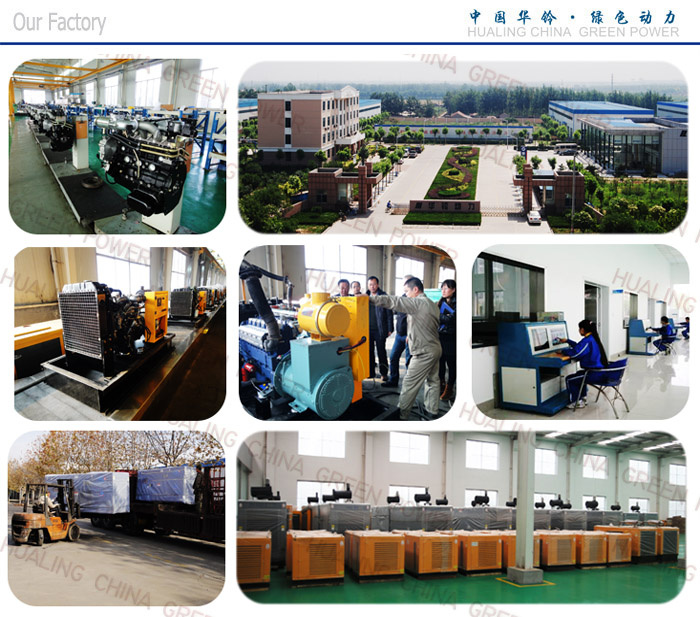

Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
