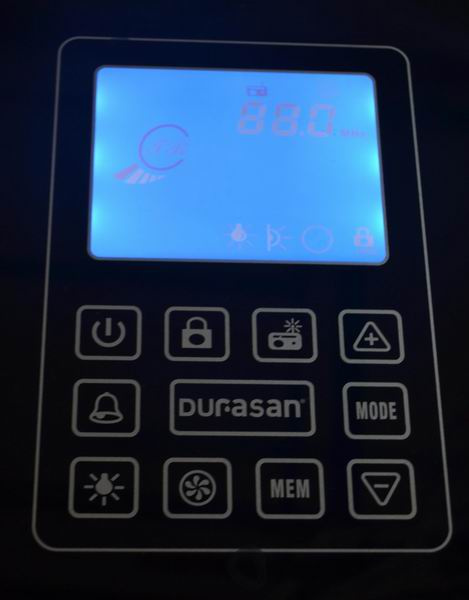

Model No.: TR088N steam room control panel
Features: touch screen, ceiling light, background light, fan, louspeaker, ozone generator, steam generator, FM radio, CD, telephone answer, remote control.
| Model No. | TR088N steam room control panel. |
Specification
| Functions | Parameters |
| Operation interface | Touch screen |
| Light | AC12V/10W |
| Fan | DC12V/0.29A |
| FM radio | Loudspeaker 8Ω/10w |
| Ozone | O zone generator AC12/8W |
| Phone receiver | --- |
| Steam | Steam generator AC220V/1-3KW |
| Remote | Remote controller |
| Rated voltage | AC220V/50Hz or AC110V/60Hz |
| Rated Power | 2.5-3.2KW |
| Waterproof | IPX5 |
| Hole size | --- |
| Package size | carton size:390x265x245mm |
| Packing volume | 0.025 CBM |
| Gross weight | 8 KG |
Working and programs:
A. Steam time and temperature setting: Time setting range from 1 to 99 minutes(default 45minutes), temperature setting range 25 to 60 degree(default 45 degree).
B. The ozone generator will be automatic turn on after system turn off, and it will be shut down after 10 minutes.
C. The steamer boiler tank will be drain after 3 minutes after system is off.
D. Radio chaneel automatic search and storage.
E. Fan and top light on and off control.
