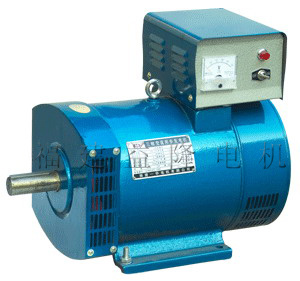

This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. Power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.
Operating Conditions:
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15ºC ~ 40ºC)
Relative air damping: Not exceed 90%
Fujian Yilong Electrical Machinery Co., Ltd. Blessing in motor & electricity s east- City in Fuan Fujian China. It is a company that gathers development, manufacture, marketing, engineering, service is an integral whole of individual proprietorship business enterprise, existing employee's more than two hundred, gathering the talented person, who own high character, high technique and high resume in the generators profession.
Having well-trained managers with more that 10 years' experience and the producing empirical the employee's troops, the strong professional technical the deluxe engineer, who has the employee's 10%. Providing with the forerunner's examination facilities and dependable examination means, and the import for improvement equipments of high accuracy and assemble - production line. Promote the ISO9001 certificate with" make people the center" of management style, doing famous brands' strategic, insisting science and technology frontier spirit, taking market as to leading, developing a new product continuously, carrying out the product machine electricity integral whole to turn, expanding bravely a domestic and international market, becoming diversified exit outlet.
Main production: Diesel generating set, gasoline generating set, power stage of trail car, low noise generating set and automatic generating set, long range intelligence supervision system various model motors, sand wheel machine, water pump, the STC? ST and FKX-H series compound excitation, FTW-H series single-phase brushless generator.
