Standby Power 1250kVA/1000kw Big Power Plant Generator

Standby Power 1250kVA/1000kw Big Power Plant Generator
Price: US $ 108000/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

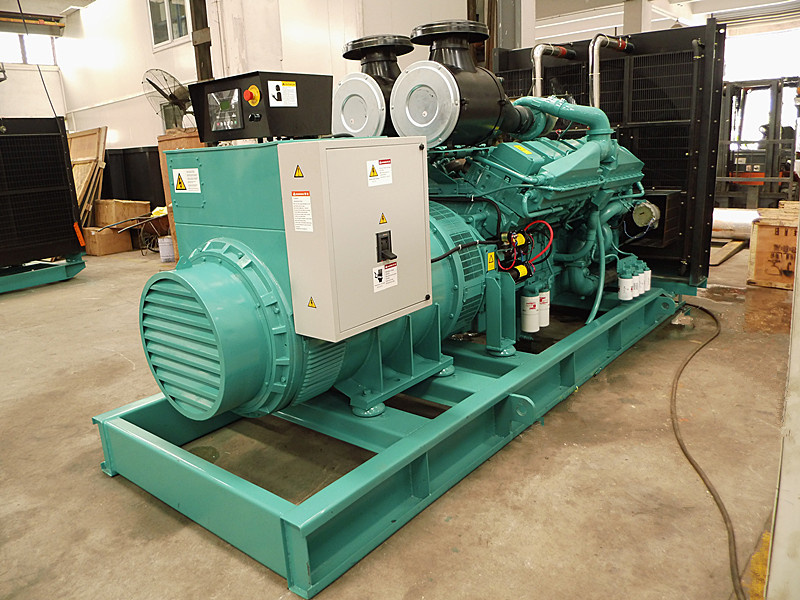

Product Description-1000KW Diesel Generator Set With Cummins Engine

1.Strict Test program which includes 50% load, 75%load,100% load, 110% load and all protection function (overspeed stop, high water  temperature, low oil pressure, battery charging fail, emergency stop)
2.Automatic controller and safety shut-down functions.
3.Battery charger and 24V starting batteries and connecting with cables.
4.Industrial silencer and flexible exhaust hose.
5.8-hours operation base tank.
6. Brushless, Self-excited, IP23, insulation class H alternator

Model No.STANDBY POWERPRIME POWERENGINEALTERNATORCONTROLLER
KVAKWKVAKW
OCL-125012501000N/AKTA38-G9LTG404G16110
230/400VAC,50Hz,0.8PF (lag),Three phase four wire

Generator set specifications

Governor ClassISO8528 G3
Potential Drop1%
Steady Voltage Regulation1%
Frequency DropSynchronous(0%)
Steady-state Frequency0.25%
R.R.I.SuppressionBS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)256 (231.40)
Starting Battery Capacity ,A/hrhhr200*4
Total Coolant Capacity ,L280
Fuel Capacity (base tank),LN/A
Engine Data
ModelKTA38-G9
Type"V" Type 12 Cylinder,4 Cycle
Displacement ,L37.8
Compression Ration13.9:1
AspirationTurbo, Water / Air Cooling
Fuel SystemPT type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)159*159
Rated Speed ,rpm1500
Governor TypeElectronic
Starting Voltage24V ,Negative ground
Battery Charging System24V 35A
Lubricant Capacity ,L135
Coolant Capacity, L280
Alternator Data
Protection ClassIP21
Insulation ClassClass H
Temperature Rise in Standard125 ºC(When Ambient Temp.is 40 ºC)
Excitation TypeBrushless & Self-excited
Waveform DistortionNo load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)<50
Telephone Interference(THF)<2%



SMARTGEN CONTROLLER
6110 Controller6120 Controller
CHARACTERISTICS:
·LCD DISPLAYStarting up can accumulate Max.999999 times
Using microprocessor as a core, Symbol LCD with backlight·Control protection: Automatic crank/stop of diesel engine, load
  Display, two languages display, key touch operation  Transfer(ATS control) and completely faults display protection
·RS485 PORT·With ETS, idle control, pre-eat control, raises speed control
Have a RS485 port with Modus communication protocol  functions and all types of them are belong to relay output
·Adapt to 3 phase- 4 wires, single phase-2 wires or ·Parameters setting: Allow user to modify setting and store
2 phase- 3 wires(120/240V),50/60Hz AC power system.  Them by inside internal FLASH memory, the parameters can
·Measure and display 3 phase voltage, 3 phase current,not be lost even with power off. All of parameters can be set
  frequency, power,etc.parameter of mains and gens:  not only from the front panel, but by PC via SG72(an adaptor,
MAINS                       GENSUSB-LINK-RS485) module; or, through RS485 port via PC
Line voltage(Uab,Ubc,Uca)   Line voltage(Uab,Ubc,Uca)·Most of temperature, pressure, oil level sensor can be directly
Phase voltage(Ua,Ub,Uc)    Phase voltage(Ua,Ub,Uc)  Used, and also user can define sensor curve by themselves
Frequency   Hz              Frequency   Hz·Multiple crank disconnection conditions can be selected.
   (Speed sensor, oil pressure, gens)
  LOAD·Power supply range is wide(8~35) VDC, accommodating to
  Power current(IA,IB,IC)   Apparent power     kVA  Different starting battery voltage environments
  Active power Kw         Power factors      Cos·All parameters use digital modulation, abandoning analog
  Inactive power kVar      Accumulate total gens power kWh  Modulation using conventional electronic potentiometer, more
·Mains have over voltage, under voltage, loss phase function  Reliability and stability
 ;Gens have over voltage, under voltage, over frequency, under·Modular configuration design, Flame Retardant ABS plastic
frequency, over current function  Shell, inserted type connection terminals, flush type
·Precision measure and display parameters about Engine,  installation, compact structure, easy installation
Temp. (WT),             ºC/ºF both are display
  Oil pressure(OP)         kPa/Psi/Bar all be display
  Fuel oil level(FL)         %(unit)
  Speed(SPD)             RPM(unit)
  Voltage of Battery(VB)    V(unit)
  Voltage of chargert(VD)   V(unit)
  Hour count(HC) can accumulate Max.999999 hours

Service gurantee:

BEFORE SERVICE:
According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds ofinformation.including drawings,specifications and offical offer.

AFTER SERVICE:
Guarantee for one year or 1000 running hours (accord to whichever reach first) from installed date. During the guaranteeperiod, such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide,you can contact yourcountry's after-sale or contact us for repairment;When replacing spare parts,please take some pics to describe the problems,we will solve it a.s.a.p.

maintenance:

1) Do the full power load test for five hours before package.

2) One year or 1000 working hours, whichever comes first.

3) After expiration, we provide spare parts maintenance with low price.

Prod Model: OCL-1250
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension: 4400*2100*2200mm
Alternator: Leateck/Stamford
Controller: Smartgen/Deep Sea
Insulation Grade: H
Protection Grade: IP22
Start System: Electric Start
Type: Micro-Computer Control Automatic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.

Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.

During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
