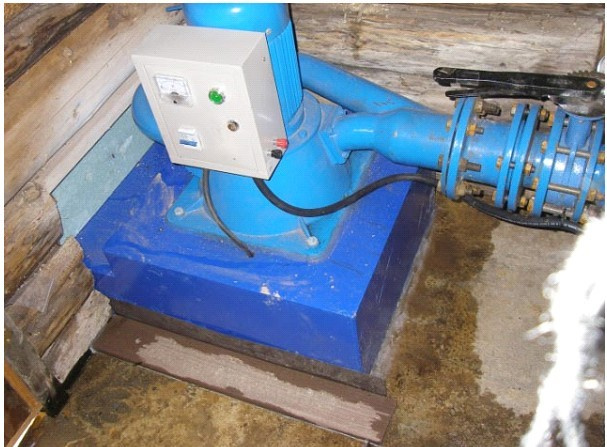

Stand Alone System/ Box-Type Micro Hydraulic Turbine

Stand Alone System/Box-type Micro Hydraulic Turbine

Type: XJ18-0.75DCT4-Z
Reted Head: 14-18m
Rated Flow: 5-8 l/s
Power: 0.75KW
Type: SF-0.75-4
Rated Power: 0.75KW
Rated Rotational: 1500r/min

Description

It is applicable under low head conditions from 12meters to 100meters with middle and small
Power 10KW to 100KW. Double jet Pelton wheel turbine generator, two water chamber, dual wheel, four-nozzle, a turbine generator to change the traditional one-way momentum, in the form of one-way transmission, like pulling a car from a cow becomes Two horse-drawn vehicles, more balanced, stable, efficient and durable. Changed the traditional image of hydro, basic engineering strength less demanding, construction, installation, commissioning a short duration; Unit operation, use, maintenance is simple, users generally low cost. Can replace the double-type, mixed flow, oblique percussive, Pelton, impact and other traditional models.
ListenRead phonetically

Model	power(K W)	fall head(M)	flow(M 3 /s)	speed(r/m)	Voltage	Frequency(Hz)	driveway
Dual wheel dual jet impact type water turbine generator	10	20-50	0.085-0.034	1000	380	50	indirect
	12	20-50	0.099-0.04	1000	380	50	indirect
	15	20-50	0.120-0.044	1000	380	50	indirect
	18	22-60	0.129-0.047	1000	380	50	indirect
	26	25-70	0.156-0.056	1000	380	50	indirect
	30	28-70	0.156-0.063	1000	380	50	indirect
	40	30-80	0.189_0.071	1000	380	50	indirect
	55	35-80	0.214-0.093	1000	380	50	indirect
	75	40-100	0.248-0.1	1000	380	50	indirect
	100	40-100	0.331-0.132	1000	380	50	indirect
