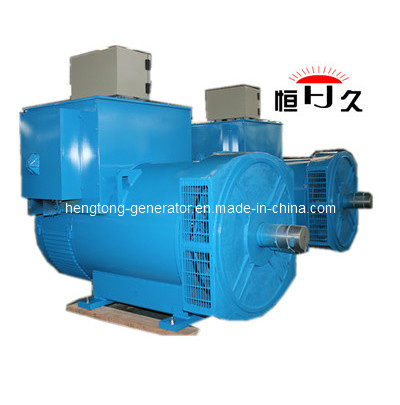

Stamford Power Alternator with Pmg (400KW)

Stamford Power Alternator with Pmg (400KW)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Stamford Power Alternator with PMG(400KW)
A: Our own brand "hengjiu" brushless alternator, it is double bearing AC alternator, (or single bearing alternator), Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee. 400kw Brushless Alternator
-Original Place: Jiangsu, China ( Mainland )
-Type: Stamford Brushless
-Brand Name: Hengjiu
-Model No.: HJI400/2
-Output Type: AC Three - Phase
-Frequency: 50/ 60Hz 1, 500RPM/ 1, 800RPM
-Phase/ Connecting method: Three - Phase, Four - Wires
-Rated Power: 500 kVA
-Rated Voltage: 120 - 690V
-Voltage Regulation: 0.5 % AVR
-Bearing: Double
-Insulation class: H
-Exciting system: Self-Excitation
-Protection Class: IP23-IP44
-Manufacturer: Jiangsu Hengtong Generator Manufacture Co., Ltd.
B: Packaging & Delivery:
-Packaging Details: Wooden, Plywood or as requirement.
-Delivery Time: Less than 25 days after receiving prepayment.
-Warranty: 15 Months or 1, 200 hours for Alternator
C: Price and Payment Term:
-Price Term: FOB Shanghai
-Minimum Quantity: 1 Set
-Supply Ability: 1000 Sets per month
-Payment Term: L/C or T/T
D: Specifications:
2/3 Pitch winding as standard to avoid excessive neutral currents
Single or two bearings construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
Standard maintenance-free sealed bearing
IP23 as standard or higher class for optional
Standard MX321 AVR and PMG Excitation
3 Phase sending detection and + 0.5% voltage regulation.
E: Options & Accessories:
-Winding temperature sensor RTD
-Thermal resistance and winding temperature protection relay
-Anti condensation heates
-Air filters
-Quadrature droop kit for parallel operation
-Rfi suppression to ec standards
-Power factor control module (PFC3)
-2 pipe damage detection module
-Fall excitation protection
-Manual voltage regulator
-Resistance temperature detector RTD
-Grease lubricated bearing
-IP 44 for option
F: SX460, SX440, SX421, MX341 or MX321 AVR
1. The main stator provides power for excitation of the exciter field via AVR
2. Output power of exciter's rotor is input to that of mains through 3-phase full wave rectifier. Two ends of the rectifier are 3. Connected with piezoresistance for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss.
4. Exciter's Stator is equipped with permanent magnetic steel, it can make generator starting smoothly in any occasions.
5. Voltage regulation (0.5 %) and low frequency protection, exterior voltage adjustment of SX440, MX341 and MX321 suitable for the generator with permanent magnetic generator (PMG).
G: FEATURES:
1. Any permanent magnetic generators, providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3. Balanced rotor with single or two sealed ball bearings
4. Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5. Wide range of Flange adaptor and single bearing coupling disc
6. All industrial standard generators is IP 23.
Prod Model: HJI400/2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Three Phase
Cooling Method: Air Cooling
Installation Method: Fixed
Power: 400kw/500kVA
Control: AVR
Jiangsu Hengtong Generator Manufacture Co., Ltd.Is located in Yangzhou city, (3 hours distance by car from Shanghai) which is established in 1986.As a manufacturer, we offer quality Brushless Alternator and Generator Set for Domestic and Overseas Market for more than 20 years.Up to now the total area of factories and offices is almost to 80, 000 M2 and 180 staffs work in our company.

Hengtong started the research and manufacture of 6.5-1760KW brushless AC Synchronous Alternator at 2004 and we've already developed the annual production to 10, 000 sets.Hengtong also produces quality Generator Sets with world class diesel engine such as Cummins, Volvo, Perkins, Daewoo, Styer, Deutz, Shangchai, Wudong, Paou, Jichai, Weichai and so on.Because of stronger research and engineers' hard working, Our Generator sets are applicable as normal and backup power source to communication project, oil industry, airport, air defense, highway and real estate industry.

Our brand "Hengjiu" has been awarded as a Yangzhou famous brand at 2006 which encourages all Hengtong people to offer a better service for our worldwide customers.

For advantaged equipment, standard workshop and high skilled workers, our company has got CE, ISO, CQC, CCS Certificates and other honors.Furthermore, Hengtong has professional sales and after-sales service team for Domestic and Overseas Markets.Under the guidance of the core philosophy "Customer and Service First", Hengtong Generator does provide top quality products and perfect service for all customers.
