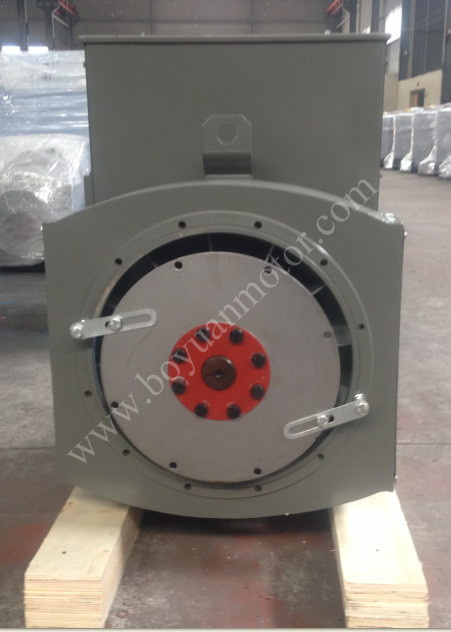

Stamford Copy Brushless Alternator with Single or Double Bearing

Stamford Copy Brushless Alternator with Single or Double Bearing
Price: US $ 120-500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union
BY series brushless alternator
FEATURE:
1-Can be coupled with any permanent magnetic generators, providing invariable excitation on all occasions.
2-Comply with the most common standard in terms of GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100.
3-Single or double bearings are available, options for all kinds of adaptors and disc plates.
4-12-end reconnectable winding terminals to get different voltages.
5-Standard H insulation class.
6-Covenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts.
7-Standard sealed maintenance-free bearingsj.
8-Standard IP23 protection, optional severe enviroment protection,

TECHNICAL PERFORMANCCE:
1-Adjusting rate of stable voltage ±0.5%
2-Adjusting rate of instant voltage: ≥-15% ~ ≤+20%
3-Adjusting range of voltage: ≥±25%
4-Insulation class: H
5-Constant working type: s1
6-Protection class: IP23

TECHNICAL DATE:
Technical Date for BY 164 series

Three phase H class temperature(125ºC)Single phase H class temperature(125ºC)
Voltage50HZ, 1500RPM60HZ, 1800RPM50HZ, 1500RPM60HZ, 1800RPM
Star series connection380400415440416440460480220230240220230240
Star PARALLEL CONNECTION190200208220208220230240110115120110115120
Triangle series connection220230240254240254--------
BY 164A rated capacity(KVA)8.18.18.18.19.610.210.210.25.45.45.46.46.46.4
Rated output(KW)6.56.56.56.57.78.28.28.24.34.34.35.15.15.1
Efficiency75.676.276.677.175.876.376.977469.669.67069.570.170.6
Input(kw)8.68.58.58.410.110.710.610.56.26.26.27.47.37.3
BY 164B rated capacity(KVA)111111111313.813.813.87.47.47.48.88.88.8
Rated output(KW)8.88.88.88.810.41111115.95.95.9777
Efficiency78.879.479.880.27979.48080.573.573.873.973.373.974.4
Input(kw)11.211.1111113.213.913.813.78.1889.69.59.5
BY 164C rated capacity(KVA)13.513.513.513.51616.916.916.999910.810.810.8
Rated output(KW)10.810.810.810.8912.813.513.513.57.27.27.28.68.68.6
Efficiency8080.78181.580.380.781.381.775.275.575.77575.676
Input(kw)13.513.413.313.315.916.716.616.59.69.59.511.511.411.4
BY 164D rated capacity(KVA)1616161618.920202010.71.710.713.513.513.5
Rated output(KW)12.812.812.812.815.11616168.68.68.610.810.810.8
Efficiency8181.681.982.481.281.782.282.776.576.776.976.476.977.4
Input(kw)15.815.715.615.518.619.619.519.411.211.111.113.11312.9
Technical Date for BY 184 series

Three phase H class temperature(125ºC)
Single phase H class temperature(125ºC)
Voltage50HZ, 1500RPM60HZ, 1800RPM50HZ, 1500RPM60HZ, 1800RPM
Star series connection380400415440416440460480600220230240220230240
Star PARALLEL CONNECTION190200208220208220230240300110115120110115120
Triangle series connection220230240254240254266277346------
BY 184E rated capacity(KVA)22.522.522.522.527.528.828.8303015151518.418.418.4
Rated output(KW)18181818222323242412121214.714.714.7
Efficiency84.384.985.385.883.884.384.985.285.681.381.781.979.980.681.1
Input(kw)21.421.221.12126.227.127.128.22814.814.714.618.418.318.1
BY 184F rated capacity(KVA)27.527.527.527.532.534.434.4353518.518.518.421.921.921.9
Rated output(KW)222222222627.527.5282814.814.814.817.517.517.5
Efficiency85.786.286.58785.585.986.486.78782.78383.381.981.982.8
Input(kw)25.725.525.425.330.43231.932.332.217.917.817.821.421.421.2
BY 184G rated capacity(KVA)31.331.331.331.33537.537.537.537.5212121252525
Rated output(KW)25252525283030303016.816.816.8202020
Efficiency86.68787.387.686.78787.387.687.883.783.983.9838383.8
Input(kw)28.928.828.728.632.334.534.434.234.220.1202024.124.123.9
BY 184H rated capacity(KVA)37.537.537.537.544.346.946.946.946.825252531.331.331.3
Rated output(KW)3030303035.437.537.537.537.4202020252525
Efficiency86.286.686.987.285.485.385.685.985.982.982.982.982.882.882.8
Input(kw)34.834.734.634.541.54443.943.743.724.224.224.230.230.230.2
BY 184J rated capacity(KVA)4042.5104047.350505055282828353535
Rated output(KW)3234323237.84040404422.422.422.4282828
Efficiency87.686.687.187.585.985.886.186.486.483838382.98383
Input(kw)3739.336.736.64446.746.546.346.327272733.833.833.8

Technical Date for BY 224 series

Generator Land
Generator Marine

50HZ 1500RPM60HZ 1800RPM50HZ 1500RPM60HZ 1800RPM
VoltageH Rank(125K)H Rank(125K)H Rank(125K)H Rank(125K)
Star series connection380400415440416440450460480380400415440416400450460480
Star PARALLEL CONNECTION190200208220208220225230240190200208220208220225230240
Triangle series connection220230240254240254260266277220230240254240254260266277
BY 224C rated capacity(KVA)42.542.542.5405052.552.552.55537.537.537.53543.843.843.843.843.8
Rated output(KW)343434324042424244303030283535353535
Efficiency86.587.187.488.286.887.287.587.787.987.187.687.888.587.68888.288.488.6
Input(kw)39.33938.936.346.148.24847.950.134.434.234.231.64039.839.739.639.5
BY 224D rated capacity(KVA)505050486062562.562.56543.843.843.8405052.556.356.356.3
Rated output(KW)40404038.44850505052353535324042454545
Efficiency87.888.288.58987.888.288.488.688.888.288.688.989.288.688.888.989.189.3
Input(kw)45.645.445.243.154.756.756.656.458.639.739.539.435.945.147.350.650.550.4
BY 224E rated capacity(KVA)6060605867.57071.372.5755050505062.562.562.562.562.5
Rated output(KW)48484846.45456575860404040405050505050
Efficiency88.188.688.989.588.588.989.189.289.488.989.289.589.888.989.389.689.889.9
Input(kw)54.554.25451.86163646567.14544.844.744.556.25655.855.755.6
BY 224F rated capacity(KVA)72.572.572.57083.887.587.587.593.862.562.562.562.57575757581.3
Rated output(KW)585858566770707075505050506060606065
Efficiency89.69090.290.689.990.290.490.590.59090.2390.690.790.290.8990.99191
Input(kw)64.764.464.361.874.677.677.577.382.955.655.455.255.166.566.16665.971.4
BY 224G rated capacity(KVA)8585857993.897.598.81001047575756587.587.587.593.893.8
Rated output(KW)68686863.27578798083606060527070707575
Efficiency89.990.290.490.890.490.690.790.89190.490.690.891.190.691919191.2
Input(kw)75.675.475.269.68386.187.188.191.366.466.266.157.177.376.976.982.482.2

Technical Date for BY 224 series

Generator Land
Generator Marine

50HZ 1500RPM60HZ 1800RPM50HZ 1500RPM60HZ 1800RPM
VoltageH Rank(125K)H Rank(125K)H Rank(125K)H Rank(125K)
Star series connection380400415440416440450460480380400415440416400450460480
Star PARALLEL CONNECTION190200208220208220225230240190200208220208220225230240
Triangle series connection220230240254240254260266277220230240254240254260266277
BY 274C rated capacity(KVA)10010010092.511311811811812581.381.381.37593.8106106106113
Rated output(KW)8080807490949494100656565607585858590
Efficiency89.890.490.791.49090.490.790.99190.891.191.391.890.889.989.989.991.3
Input(kw)98.188.588.28110010410410311071.671.471.265.482.694.594.594.598.6
BY 274D rated capacity(KVA)11411411410913113813813814610010010087.5119119125125125
Rated output(KW)91919187105110110110117808080709595100100100
Efficiency90.390.89191.690.490.790.991.191.290.791.191.49290.891.291.391.491.7
Input(kw)10.110010095.211612112112112888.287.887.576.1105104110109109
BY 274E rated capacity(KVA)140140140130160168168168179125125125113138138138144144
Rated output(KW)11211211210412813413413414310010010090110110110115115
Efficiency91.391.79292.591.491.791.99292.191.792.192.392.791.992.292.492.692.7
Input(kw)12312212211214014614614615510910910897.1120119119124124
BY 274F rated capacity(KVA)160160160150181190190190206144144144125163163169169169
Rated output(KW)128128128120145152152152165115115115100130130135135135
Efficiency91.992.392.5939292.392.592.692.692.292.692.89392.292.792.792.993.1
Input(kw)139139138129158165164164178125124124108141140146145145
BY 274G rated capacity(KVA)175175175171200213213213225156156156150188188188188200
Rated output(KW)140140140137160170170170180125125125120150150150150160
Efficiency92.292.592.79392.292.492.692.792.892.592.89393.292.392.792.99393
Input(kw)152151151147174184184183194135135134129163162162161172
BY 274h rated capacity(KVA)200200200190238245245245255175175175163219225225225231
Rated output(KW)160160160152190196196196204140140140130175180180180185
Efficiency9393.395.393.892.993.293.493.593.693.393.693.793.993.193.293.493.593.6
Input(kw)172171171162205210210210218150150149138188193193193198

Remark:
All land rate data: 40ºC(Attitude not exceed 1000m)
All listed voltages are obtained from a wide range of individual winding.I.E.from recombination from 12 outlet terminal(3 phase) and 4 outlet terminal(single phase)
Other optional voltage range according to customer demand.



Prod Model: BY
Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Power Range: 6kw~160kw
Bearing: Double Bearing or Single Bearing
Color: as Customers Requirements
Wire: Copper or Aluminum
Cooling Method: Fan Cooling
Brand: Xby or OEM

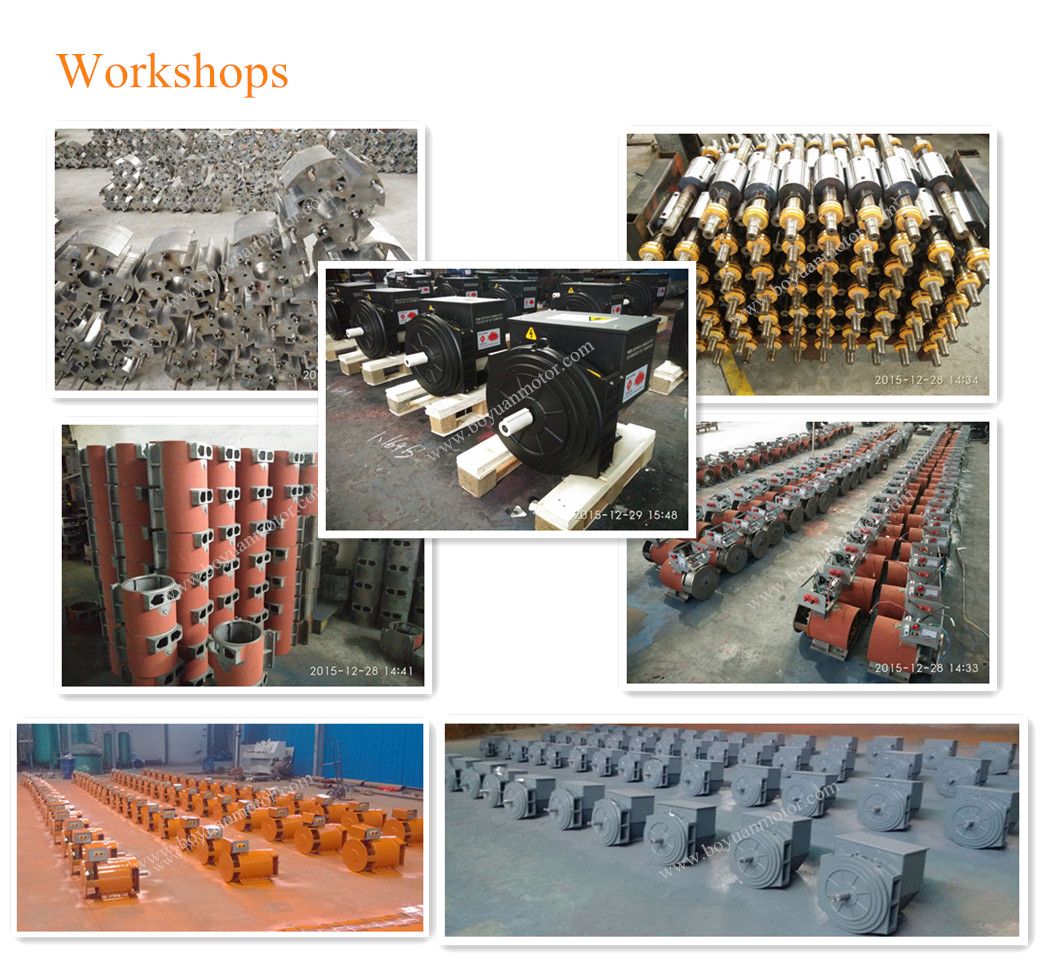

Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.

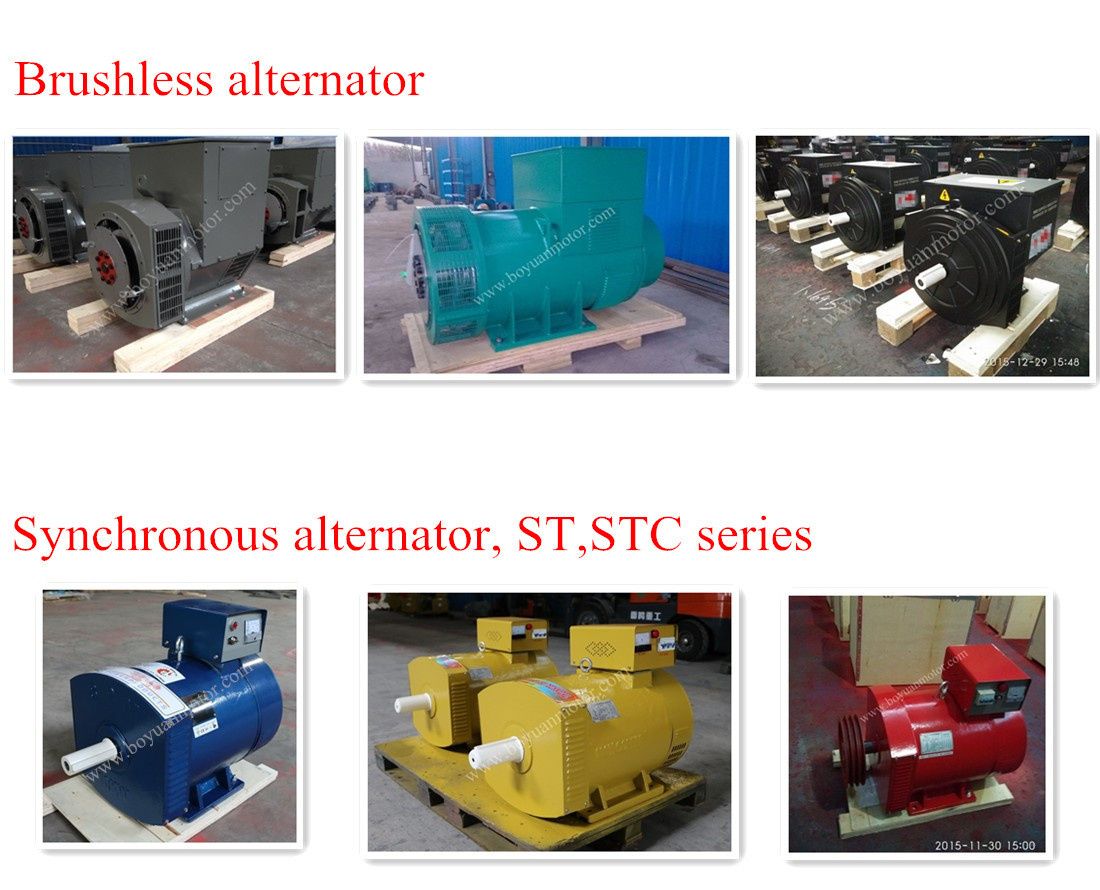

BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.

BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.

All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.

As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.

Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers' request

3. Polyester varnish for appearance protecting for shining and raining

4. Two hours testing before out factory

Warranty policy

The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
