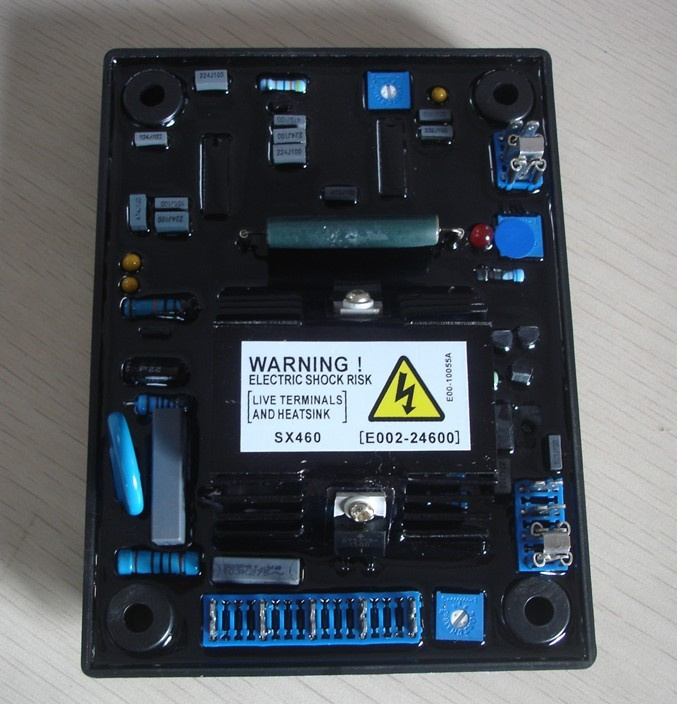

Voltage Regulator for Stamford Genset SX460
SX460 is single phase brushless AVR for < 150kw diesel generator.
SX460 is a harlf-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR) and forms parts of the excitation system for a brushless generator.
Features
Voltage Regulation < ± 1%
Soft Start Voltage Ramping
Sensing Voltage Loss Protection
120 or 240 VAC Sensing, Jumper Selectable
Under Frequency Roll Off Protection
With Under Frequency LED Indicator
Sensing Input
Voltage: Jumper selectable
120(95-132)VAC, 240(190-264)VAC, single phase 2wire
Frequency: 50-60Hz nominal
Phase: 1
Power Input (PMG)
Voltage: Max 90VDC at 207VAC input
Current: Continuous 4A, intermittent 6A for 10 secs
Resistance: 15 Ω Minimum
Regulation: +/-1% RMS with 4% engine governing
Thermal Drift: 0.05% per deg. C change in AVR ambient
Typical system response:
AVR reponse: 20ms
Field currnt to 90%: 80ms
Machine volts to 97%: 300ms
Voltage established: Residual voltage at AVR terminal >5VAC
External Voltage Adustament: +/-7% with 1k ohm 1 watt trimmer
Under frequency protection
Set point: 95%Hz
Slope: 170% down to 32Hz
Unit power dissipation: 10 watts maxinmum
Environmental
Vibration: 20-100Hz 500mm/sec
100Hz 2Hz 3.3G
Operating temperature: -40 to +70° C
Relative Humidity 0-70c: 95%
Storage temperature: -55 to +80° C.
Generator Automatic Voltage Regulator |
Stamford |
Leroy Somer |
Marathon
Basler |
Mecc-Alte |
Kutai |
Marelli
Cat. |
GAVR/CF/YH |
Others |
SX460 |
R230 |
SE350 |
UVR6 |
EA06A |
M40FA640A |
GAVR 8A |
ST/STC (Alu.case) |
SX440 |
R250 |
EA04C |
ST/STC(Plastic case) |
AS440 |
R438 |
EA05A |
GAVR 12A |
2~3.5 kw avr |
AS480 |
R448 |
AVC63-7 |
SR7-2G |
EA350 |
M16FA655A |
5~7.5 kw avr |
MX321 |
R449 |
EA08A |
GAVR 15A |
5~7.5 kw welder avr |
MX341 |
R450 |
AVC63-12 |
EA16 |
VR6 |
Lanzhou KXT-2WC avr |
EA15A |
10KW avr YX3DA 2DA |
Cummins Parts |
3044196 |
3044195 |
3030256 |
3062322 |
3098693 |
3037359 |
4913742 |
3408326 |
408324 |
3034572 |
GAC Parts |
ESD5500E |
ESD5111 |
ESD5120E |
ESD5522 |
ESD5221 |
ESD5220 |
ESD5330 |
MSP675 |
Generator/Genset Charger |
178A |
670 |
680 |
12~24V 5A |
12~24V 3A |
12/24V 6A~10A |
Other parts |
Leroy Somer Diode Kit 330-25777 |
Stamford Diode Bridge SSAYEC432 |
RSK1001 |
RSK2001 |
RSK5001 |
RSK6001 |
Stamford Varistor B |
Stamford Vaistor C |
