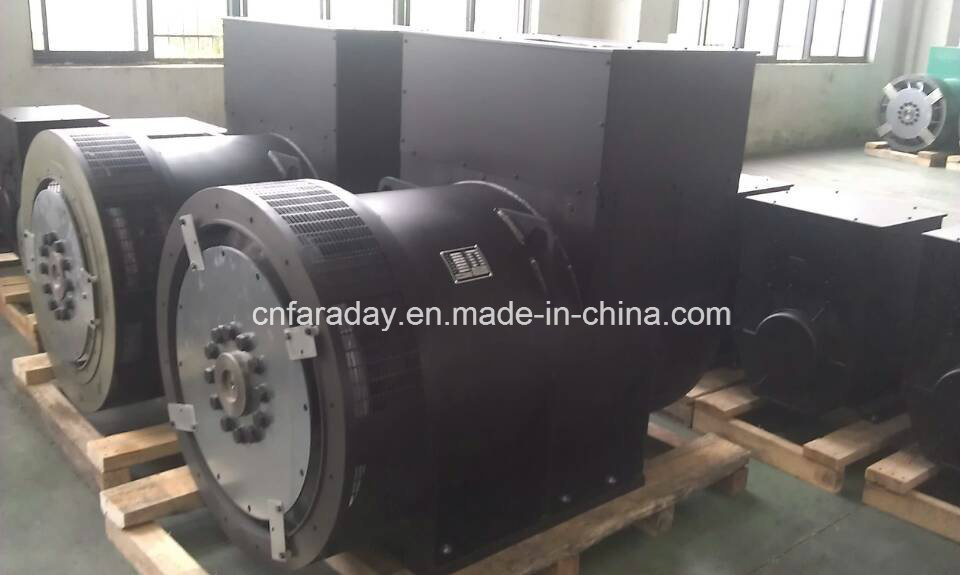

Home Generator Products Stamford 1500rpm 1563kVA 1250kw AC Diesel Brushless Generators Alternator Fd7b

Stamford 1500rpm 1563kVA 1250kw AC Diesel Brushless Generators Alternator Fd7b

Stamford 1500rpm 1563kVA 1250kw AC Diesel Brushless Generators Alternator Fd7b
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 3/Piece
Pay Type: L/C,T/T,Western Union
Fd7 series 1400-2750kVA/1120-2200KW 50Hz/60Hz Permanent Magnet Brushless Alternator Generator

Specification:
Model series: FD7F
Brushless synchronous AC alternator;
Range of power: 2750KVA/2200kw, 190V-690V;
Frequency: 50/60Hz Low frequency
Usage: Make Electrical
Phase: Three Phase
Certificate: Has passed CE, ISO9001: 2008
Export Markets: Global
Insulation class: H

Warranty period
Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.

Accordant Standard
GB755 National Standard for Rotating Electrical Machine.
IEC60034 (International Electrotechnical Commission).
BS5000, VDE0530, CSAC22.2-100 International Standard

Application Area:
Faraday alternators fit all different brands of engines, are extensively used as prime or standby power in various applications, such as
General industry, Mining, Military, Oil-field, Construction, Telecommunication, Hospital, Engineering Machinery, Building construction, CHP, Marine and other harsh environment applications etc.

Raw material:
1. Copper wire has passed UL certified class 200.
2. PMG and VPI are optional.
3. Insulation paper is Tyvek (Dupont paper).
4. Epoxy Resin from ALTANA in Germany.
5. Low iron-loss silicon steel are BS470 from Shanghai BAOSTEEL GROUP.

Product Description
FD7 brushless AC alternator, the range of power from 1120kw to 2200kw.
It includes FD7A, FD7B, FD7C, FD7D, FD7E, FD7F, FD7G, FD7H.
3 phase, 4 pole, 50Hz/60Hz, 1500rpm/1800rpm, 190-690V

Standard Feature of Product:
1: Comply with the most common standard in terms of GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100
2: Advanced Automatic-Voltage-Regulator
3: 2/3 pitch winding effectively eliminate harmonic waves, best fit for non-linear load
4: Single or double bearings are available, options for all kinds of adaptors and disc plates
5: Standard IP23 protection, optional severe environment protection
6. Alternative cable outputs on both sides
7: Standard PMG in excitation system

Note:
*The generators have been designed for use in a maximum ambient temperature of 40degree and
Altitude less than 1000m above sea level
*All generators are 4-pole ones

Electric Features:
1. Voltage accuracy is ± 1% in static condition with any power factor, with optional PMG and MX321 AVR, voltage accuracy will be± 0.5%.
2. Faraday alternators can function in parallel among themselves.
3. Radio interference suppression

Options:
1., Winding RTD and bearing RTD
2. Winding protection thermistor and relay
3. Anti-condensation heater
4. Air filter
5. Droop CT
6. IP44 protection
Prod Model: FD7B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Alternators
Rated Power: 1400-2750kVA/1120-2200kw
Class Of Insulation: H/H
Protection Grade: IP23
Warranty: Plywood Case
Certificate: CE,ISO9001
Package: Plywood Box
Original: Wuxi China (Mainland)
Power Factor: 0.8
Shipping Terms: by Sea
With world-leading technology and advanced management experience in operation, Wuxi Faraday Alternators Ltd is cooperating with American Basler Electric Company in excited system, being professionally engaged in the production and sales of "FARADAY" alternators, power ranged from 6.5kw to 2000kw.

BUSINESS PRINCIPLE:Carving out with integrity to pursue employee satisfaction, customer satisfaction as well as society satisfaction for life

DEVELOPMENT STRATEGY:Guaranteeing quality with criterion, building brand by quality, developing with brand

MANAGEMENT STAFF:Our senior management staffs are all professional talents who have ever worked in multinational company for so many years in alternators' production and sales, with extensive experience of marketing and service, production, material supplied chain management and quality control system.

PRODUCT FEATURE:Cooperating with American Basler Electric Co., innovating under the world-leading technology combined with the feedback from actual practice:Overcoming the AVR shortage of the usual domestic alternator, reasonable design, compact overall dimension, light weight, class "H" of all stators and rotors' insulation, stable and reliable even during bad working condition, etc., with patent registered already.

CUSTOMER SUPPORT:We have an excellent service and industry solution team who have been engaged in alternator field for over ten years, we can assure customers that complaint or help will get swift response, within 24 hours to be on the spot in Jiangsu province and 48 hours in nationwide is available if necessary.

CORE COMPETENCE:Topping employee, advanced ideas, leading technology, reliable quality and timely service are our core competence.
