| TYPE | Output | Current(A) | Pole Number | Sychronous Speed(r.p.m) |
| KVA | KW |
| Single phase 230V 50Hz/1500r/min |
| ST-2 | 2 | 2 | 8.7 | 4 | 1500 |
| ST-3 | 3 | 3 | 13 | 4 | 1500 |
| ST-5 | 5 | 5 | 21.8 | 4 | 1500 |
| ST-7.5 | 7.5 | 7.5 | 32.6 | 4 | 1500 |
| ST-10 | 10 | 10 | 43.3 | 4 | 1500 |
| ST-12 | 12 | 12 | 52.2 | 4 | 1500 |
| ST-15 | 15 | 15 | 65.3 | 4 | 1500 |
| ST-20 | 20 | 20 | 87 | 4 | 1500 |
| Three phase 400V 50Hz/1500r/min |
| STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
| STC-5 | 5 | 6.3 | 9 | 4 | 1500 |
| STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 |
| STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 |
| STC-12 | 12 | 15 | 21.7 | 4 | 1500 |
| STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 |
| STC-20 | 20 | 25 | 36.1 | 4 | 1500 |
| STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 |
| STC-40 | 40 | 50 | 72.2 | 4 | 1500 |
| STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 |
Product Description
Place of Origin: Fujian, China (Mainland)
Brand Name: EMEAN

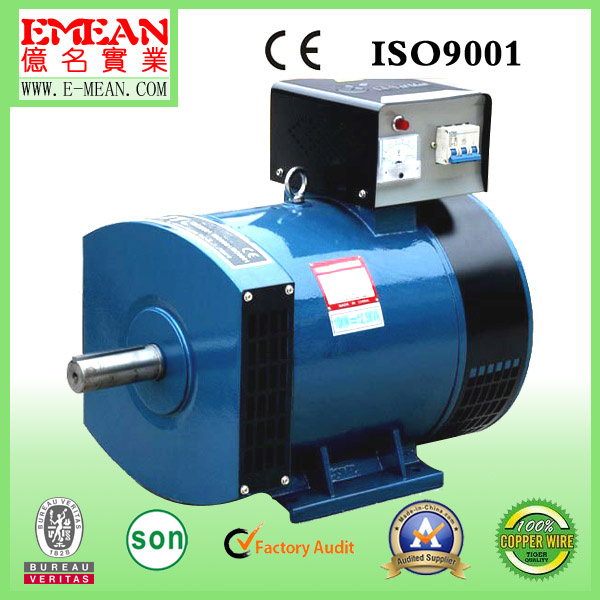

Model Number: ST /STC Alternator
Type: AC Synchronous generator Brush type
Phase No.: Three phase
Color: Blue / Green / Yellow / White / Black or according to customer's requirements
The ST series generators are mainly designed to serve as power source of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages. The generators are excellent in appearance, consolidate in construction and easy to maintain. Dimensions adopt IEC standard. They are suitable for Australia, Europe, America and other countries if the end covers are mabel B.
The generator adopt harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic characteristic performance, convenient and reliable in operation
AC Alternator
The generators are of drip-poof with rotary field type and with the adoption of harmonic excitation system, that allow your easy
The generators are to be used in town, the countryside, worksites, mountain and pasture lands as a electric power source for lighting purpose, It can also be used as a reserved power source for emergent case. The generators are of drip-poof with rotary field type and with the adoption of harmonic excitation system, that allow your easy operation and simple maintenance.
The generators are of three-phase four-wire type, making use of atar connection with neutral point. The rated line voltage is 400V. Phase voltage 230V. Frequency 50Hz. Power factor 0.8(lag). It can provide 60Hz and the other voltages generator according to necessary. They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed. When the revolution slip of prime mover is 3% and load varies in the range of 0 100% cos F 1.0 0.8 they give food constant voltage. After sudden change (increase or decrease)of load. The generators will soon return to their normal working state. Without any starting devices the generator can directly start an unloaded squirrel cage induction motor.
Operating conditions
Under the following environment, the generator could run continuously:
1. Altitude: Not exceed 1000m
2. Ambient temperature: -15° C-40° C
3. Relative air humidity: ≤ 90%
Operating Conditions:
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Relative air damping: Not exceed 90%
