INTORDUCTION

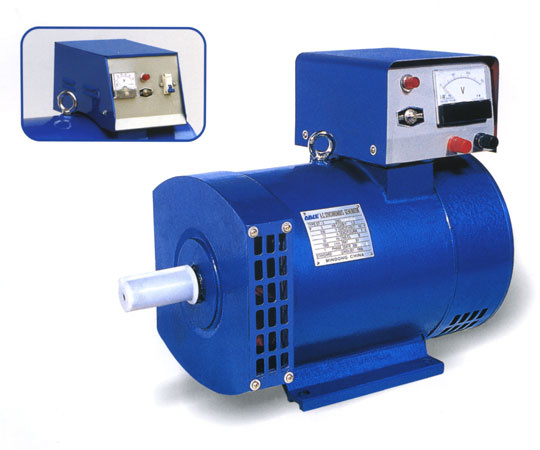

ST series generators are mainly designed to serve as power generating unit of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages.
The construction of the generators is of drop-proof type, salient pole rotating field self-excitation and constant voltage type. The alternator inside is used with high quality electric magnetic and electrical materials. Stator insulation is of Class E(or B). Rotor insulation is of Class B. These generators are excellent in appearance. They are consolidate in construction and easy to maintain. Europe, America and other countries if the end covers are model B.
The alternators are of harmonic wave self-ex-citation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic characteristic performance, convenient and reliable in operation.
ENVIRONMENT CONDITIONS
Under the following environment, the generator could run continuoulsy:
1. Altitude: Not exceed 1000m.
2. Cooling air temperature: 258-313K(15º C-40º C)
3. Relative air humidity: Not exceed 90%
| TECHNICAL DATA |
| Model | Output | Current(A) | Voltage(V) | Power factor(cosø) | Pole number | Speed (r.p.m) |
| (kw) | Series connection | Parallel connection | Series connection | Parallel connection |
| ST-2 | 2 | 8.7 | 17.4 | 230 | 115 | 1 | 4 | 1500 |
| ST-3 | 3 | 13 | 26 |
| ST-5 | 5 | 21.7 | 43.5 |
| ST-7.5 | 7.5 | 32.6 | 65.2 |
| ST-10 | 10 | 43.5 | 87 |
| ST-12 | 12 | 52.2 | 104.4 |
| ST-15 | 15 | 65.2 | 130.4 |
| ST-20 | 20 | 87 | 174 |
We are a leading manufacturer of Generator Set, Alternator, Electric Motors, Pumps etc. Our factory covers an area of 12, 000 square meters, and having 5 senior technological engineers and more than 200staffs now.
Main manufacture:
1. All kinds of Generator set, including Diesel Generator, from 2kw to 300kw; Gasoline Generator, from 450w to 12kw; LPG Generator, from 2kw to 80kw; Kerosene Generator etc. Our Generator sets not only adopt ourselves Engine, but also adopt famous engine just as BRIGGS & STRATTON, KOHLER, HONDA, PERKINS, CUMMINS etc. Holding the best solution method to meet different customers' demands.
2.4 pole alternators(2kw to 500kw), 2 pole alternators(2kw to 15kw);
3...Water pump, Welding& Generator double use machinery etc.
During these years we are constantly researching and developing new products, design different products according to customer's standard.
We have passed ISO9001: 2000 certificate. And carrying out this quality control system strictly, containing strict process control and final test, and increasing lots of advanced equipment such as digital control machine tool, microcomputer testing machine, pulse magnetizing apparatus etc. Our products are approved by CE, EPA, CARB, CCC certificate.
We believe that 'quality is the life of factory', We insist on supply excellent quality, best services to all of our customer. Welcome customers all over the world to visit our factory and negotiate business.
