Detailed Product Description

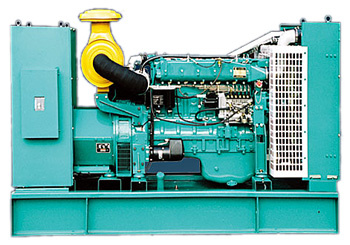

The sound-proof type genset has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability. Special noise elimination setting restrains machinery noise to be lowered below 75dB.
Specifications:
1) Output range: 8kW (10kVA) - 400kW (500kVA)
2) Noise level: Below to 75dB by 7 meters distance
3) Sound attenuated enclosure: Special noise elimination setting restrains
The machinery noise and the unit has perfect all-weather service property
And the outside steel material features preferable corrosion prevention
Capability
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
Alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: Be less than+10%
12) Frequency return time: Be less than3s
13) Voltage deviation at stable state: Be less than 1%
14) Voltage deviation at instantaneous state: Be less than+20%
15) Voltage return time: Be less than 4s
16) Voltage modulation: Be less than 0.3%
17) Standard configuration of gensets:
A) Engine: Deutz, Steyr, Cummins and Weichai series diesel engine
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner,
Direct injection
C) Alternator: Marathon brushless alternator
18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm
System and arrestor for any situation as the start defeat, the water
Is over temperature, the oil pulls down, over speed, over load and
Over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the
Requirement of radiation at ambient temperature 40
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler
24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer
Weifang Huaxin Engine Co., Ltd., established in the year of 1985, covers an area of 6, 000 s. Q. M. And has more than 20 engineers and technicians, mainly engaged in production of 3KW-500KW for power generating engines, 3KW-500KW for generating diesel engines and 30KW-500KW for generating gas engines. The company has a complete production lines, machines and equipments for generating engines as well as inspecting and testing machines.
Weifang Huaxin Engine Co., Ltd. Is a famous enterprise in Shandong Province and rewound brand in Weifang Power Town. The company wins the market with an honest working style, outstanding service attitude as well as business idea of good quality and low price. Its products are deeply renowned and welcome among customers.
Mr. Wang Zhenping, the general manager from the company, warmly welcomes new and old customers' visiting for business and seeking development.
