Home Generator Products Soundproof Type Diesel Generator Set

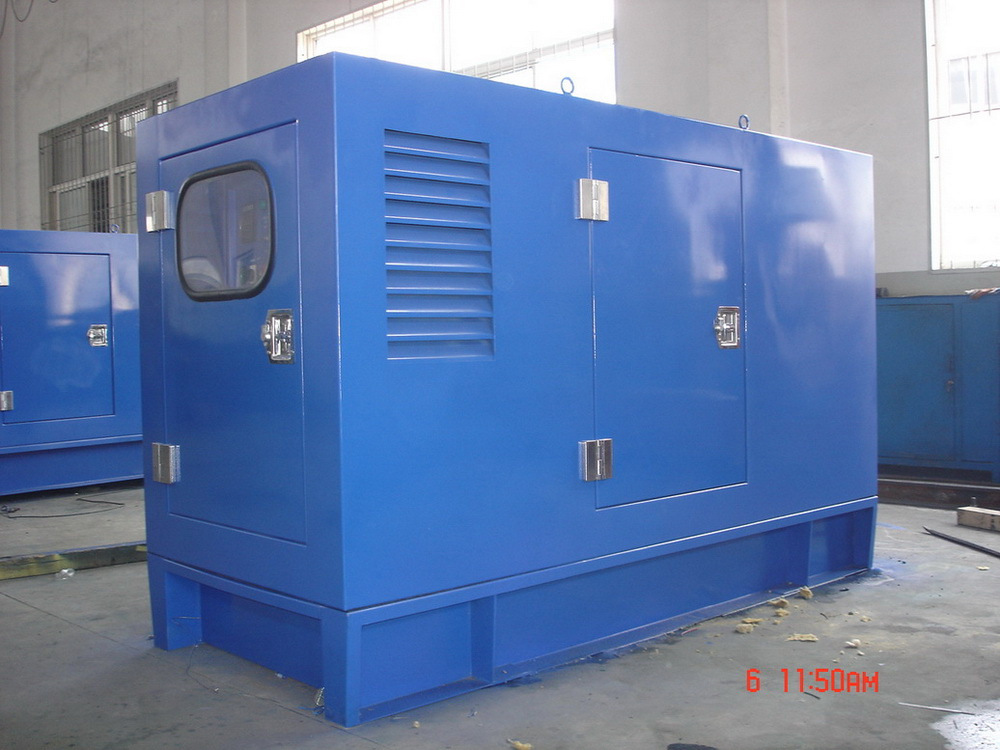

Soundproof Type Diesel Generator Set

Soundproof Type Diesel Generator Set
Price: Negotiable
Min Order: 1
THE SPECIFICATIONS OF THE GENERATING SET:
1. Model: TLR8GF to TLR1000GF
2. Rated output: 8KW(12.5KVA) to 1000KW(1250KVA)
3. Basic specifications: 230 / 400V AC, 50Hz / 60Hz, 0.8Pf, three phase four wires
4. Character: Base fuel tank for 8 hours
5. Use: Can be used for the open type and the soundproof type, automatic type
6. The level of noise: 75dB/meter
7. Control system:

A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
8. Supply standard collocation:

A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
9. The delivery: Within 15 days
10. Package: Wooden case

THE SPECIFICATIONS OF THE ENGINE:
1. The rated speed: 1500rpm, four strokes, inline. Fan and water tank cooling system, up to the ISO3046 standard
2. The rated output: From 8kw(10KVA) to 1000kw (1250KVA)
3. The engine Brand: CUMMINS/PERKINS/DEUTZ/DAWOO/RICARDO/STEYR
4. The character of the engine:
1) High efficiency. Low exhaust, good start eddiciency
2) 24V DC start motor
3) Egnine driven alternator
4) High pressure oil pump
5) Turbine charge
6) Three filters
7) SAE flywheel shell

THE SPECIFICATIONS OF THE ALTERNATOR:
The world first class alternator, up to the GB755, BS5000, VDE0530, IEC34-1, CSA22.2, AS2359 standard, brushless and self-excitation, it be can supply excitation in many cases:

1) STAMFORD/ MARATHON/ LEROY SOMER/ QIANGHUI
2) Standard pitch winding can be inhibit current's nterruption
3) Insulation Class: H Protection class: H
4) Frequency at stable state: ≤ ± 1.0%;
5) Telephone's interference: THF < 2%, TIF < 50.
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Weifang Dilate diesel engine Co., Ltd, located in the Economic Technique Development Area of "Chinese power city" -Weifang City, is a comprehensive company which engaged in the development, manufacture and management of 8kw-1000kw diesel engine and generating sets.

For the generating set and automatic water pump set, we select Weifang Dilate diesel engine Co., Ltd, located in the Economic Technique Development Area of "Chinese power city" -Weifang City, is a comprehensive company which engaged in the development, manufacture and management of 8kw-1000kw diesel engine and generating sets.

For the generating set and automatic water pump set, we select international diesel engines such as CUMMINS, DEUTZ, 135, WEICHAI series engines to collocate MARATHON and STAMFORD and other international brand alternators. With reasonable design, advanced craft, low noise, weak librations, quick startup and creditable capability, our products have been widely used in such fields as industry, mine, bank, hospital, ship, post office and telecommunications, oil, high-rise and field construction.

For the diesel engine, the main product series is 295, 2100, 495, 4100, 4102, ZR4105 and ZR6105 series, with the low fuel consuption, the strong reliability. These engines are easy to operate, convenient to repair. These kinds of products are suitable to be used to the power set, the medium tractor, the project machinery, the air compressor and so on.

Weifang Dilate diesel engine Co., Ltd owning the domestic advanced workshop and production line, first-class assembly line, well-equipped testing platform; We also have the abundant technical teams, and have forced the international department, technical department, project department and other specific departments which make the production more specialized and excellent. Now we have solden our products to more than twenty countries, and have been set up the long term business with more than ten countries.

Weifang Dilate diesel engine Co., Ltd also provides excellent sales service and techinical support while provide the high quanlity product. If you are interested in any series of our products, please feel free to contact us. Hope we have chance to cooperate and let's open a bright future based on the mutual benefit!
