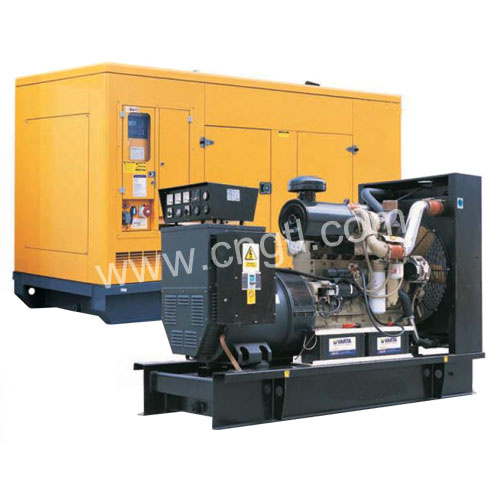

Soundproof genset/Soundproof generator/Soundproof diesel generator/Soundproof generating set/
Features:
1.Canopy: soundproof type, weatherproof type or container type for you choice
2.Noise level:below to 62- 75Db by 7m distance
3.Sound attenuated enclosure:special noise elimination setting restrains the machinery noise and the unit has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability
4.Sound-absorbing fire-retardant cotton
5. Metal parts are coated with electrostatic powder paint
6. Canopy material:1.6-2.0mm Cold-rolled sheet
7. Engine: Cummins or as per customers requirements
8. Alternator: Leroy Somer, Stamford or Marathon
9. Rated Frequency:50HZ/60HZ
10. Rated Speed: 1500 RPM/1800RPM
11.3PH:star or delta
12. Protection: IP23
13.Insulation Class: H
14. Water-cooled
15. 8hrs operation base tank
16. Key start/Auto start
17. Sound-proof/weather-proof canopy is optional
18. Control system:
a) Automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature dieplay
iv) Audible and visual alarm lamps and buzzers
19. Starting system: DC alternator is used to start engine
20. Short circuit protection:MCCB ari switch
21. Cooling system: combined cooling water tank fittled to meet the requirement of radiation at ambient temperature
22. Filter system: oil, fuel and air filter
23. Accessories: exhaust elbow, bellow, muffler
24. Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12/24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12/24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencerlnner
Keywords: Soundproof generator, soundproof diesel generator, silent generator, silent generator set, soundproof generator set, power generator,diesel generator,generator set,generator,silent diesel generator,soundproof diesel generator set,silent diesel engine generator, silent diesel generator,silent power generator,soudproof generating set, silent diesel genset, silent gen-set, soudproof power generator,soudproof power generating set
Model Number | GS |
Speed | 1500/1800 |
Frequency | 50Hz/60Hz |
Rated Power | 8kw~800kw |
Rated Voltage | 220/380v, 230/400v, 240/415v,120/240v |
Place of Origin | China (Mainland) |
Output Type | AC Three Phase |
Brand Name | GTL |
Engine | Cummins, Yanmar, Deutz, Perkins etc. |
Alternator | Leroy Somer, Stamford, Marathon etc. |
Standard | CE, ISO9001,14001 |
Protection & Insulation | IP23 & H |
Advantage 1 | Lowest price ,Best quality |
Advantage 2 | Convenient spare parts supply .best after service |
Advantage 3 | Long term warranty |
Advantage 4 | Could make special full power solution for you |
Advantage 5 | Could make parallel connection |
After 10 years of development, GTL company in energy generator industry has accumulated rich experience in manufacturing, the leading status. Headquarters is located in Xiamen, China.
Here, design, manufacture and sales of GTL brand series products and related technologies, and through the agency of global each country dealer network to provide customers with technical service. Products are widely used in office building, hospital, factories, municipal, power plants, university, entertainment. Besides, GTL can also according to customer special power needs to provide specific solutions for various industries and provide efficient and reliable electricity.
GTL production base in xiamen strictly enforce the ISO9000 quality and the industry standard, in order to ensure product outstanding quality.
