Soundproof
Features:
1) Models: FDG26, FDG38, FDG52, FDG85, FDG100, FDG110

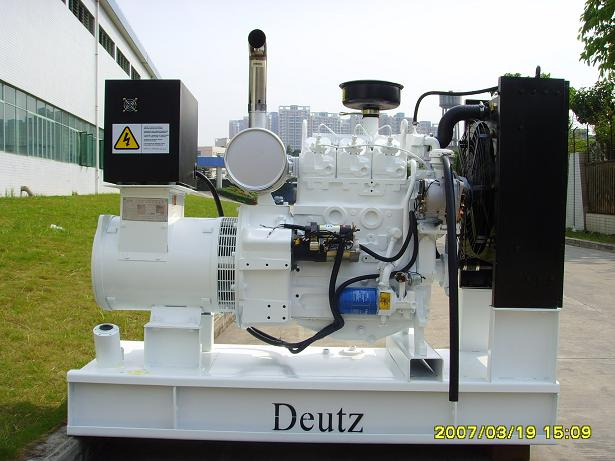

2) Composed of DEUZT series diesel engines and Marathon / Stamford / Engge Alternators
3) Output range: 30 - 44 - 60 - 98 - 113 - 125KVA)
4) Engine model: D226B-3D, TD226B-3D, TD226B-4D, TD226B-6D, TBD226B-6D, TDB226B-6D
5) Rated voltage: 400 / 230V
6) Rated frequency: 50Hz
7) Mode of connection: 3 phases, 4 lines
8) Rated power factor: 0.8 (lagging)
9) Wave distort: Less than 10%
10) Power supply voltage: 24V
11) Volt fluctuating: <0.5%
12) Volt / frequency fluctuating: (&le) 1/ 0.5
13) Small volume, light weight, low noise, low fuel consumption
14) Water-cooling with water tank and fan
15) Key start / auto start
16) Monitoring meters and control switches
17) Protection provided for short-circuiting over-current, over-speed, high water Temperature and low oil pressure
18) Soundproof / weatherproof canopy is optional
19) Supply scope of standard parts: Industrial type silencer, exhaust pipe, flexible Exhaust bellows, vibration-damping rubber, lead-acid battery, connecting cables Of battery, users' manual and technical papers
Specifications:
1) Engine:
A) Multi-cylinder in-line or VEE engine, 4-stroke, direct injection
B) Naturally aspirated, turbocharged, water cooled or turbocharged with air Intercooler
C) B&C series mechanical governor, others electronic governor
D) PT fuel injection pump
E) Electric motor starting system
F) Forge steel crankshaft, cast iron cylinder and replaceable wet type cylinder Liner
G) Low discharge, and low fuel consumption
H) Installing conveniently, and maintaining easily
2) Alternator (marathon / Stamford / Engge):
A) Brushless, self-ex cited, 4-pole, single bearing
B) AVR self-regulated
C) IP21 protection grade, class H insulation
D) Voltage regulation rate &le 1%
E) Radio interference restraining accords with the stipulations of VDE0875-N And GB/T2820
F) Moisture-proof, sand-proof, dust-proof, salt-proof and vibration-proof
G) Small volume
H) Light weight
