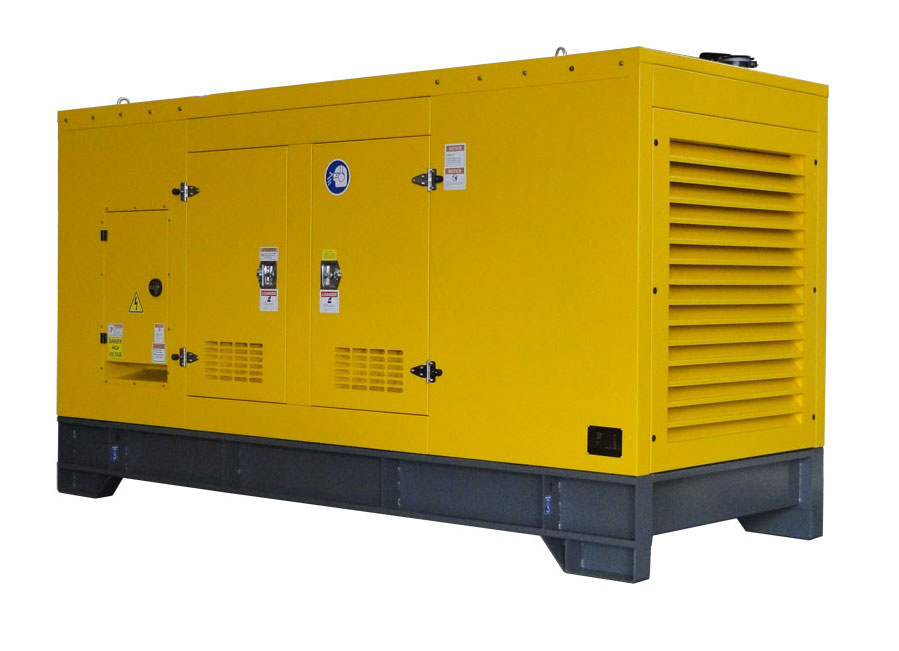

Detailed Product Description
High Performance
1. Multi-way air intake and exhaust guarantee the power performance of genset.
2. Large-scale impedance combined type silencer effectively reduce noise of the genset.
3. Internal high performance rubber damper and flexible materials reduce vibration.
4. Fuel tank supports the genset running for 8 hours.
Construction features
1. Cold steel materials.
2. Metal parts are coated with electrostatic Powder paint.
3. Stainless steel locks and hinges.
4. Access to all weather conditions.
5. Fireproof, waterproof and dustproof.
6. Sound-absorbing, fire-retardant cotton
7. High quality soundproof materials could efficiently reduce noise.
Security and Safety
1. Transparent viewing window make the control panel clear at a glance.
2. Emergency stop button mounted on the canopy exterior.
3. Cooling fluid injection hole is kept on the ceiling crust.
4. Pipe of lube oil and cooling fluid is mounted on the tottom of genset for easy let.
5. Fuel fill and battery can easy beaccessed by lockable door.
6. Cooling fan and battery are fully guarded.
7. Heat insulation of exhaust smoke system inside the canopy.
8. Key/Automatic Start
9. Fire extinguishers are easily got at the door.
Transportation
1. Liftng ear is mounted in the base frame.
2. Forkman slot for choice.
Packing: Standard export packaging or as customers requirement
1. Canopy: Soundproof, waterproof
2. Noise level: Below to 62- 75Db by 7m distance
3. Soud attenuated enclosure: Special noise elimination setting restrains the machinery noise and the unit has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability
4. Sound-absorbing fire-retardant cotton
5. Metal parts are coated with electrostatic powder paint
6. Canopy material: 1.6-2.0 mmCold rolled sheet
7. Engine: Cummins or clients enquiry
8. Alternator: Leroy Somer, Stamford or Marathon
9. Rated Frequency: 50HZ/60HZ
10. Rated Speed: 1500 RPM/1800RPM
11.3PH: Star or delta
12. Protection: IP23
13. Insulation Class: H
14. Water-cooled
15.8hrs operation base tank
16. Key start/auto start
17. Sound-proof/weather-proof canopy is optional
18. Control system:
A)Automatic alarm system: The unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current
B) Operation display:
I)Unit voltage, tri-phase load current and frequency display
Ii)Water temperature, oil pressure display
Iii)Fuel level, fuel temperature dieplay
Iv)Audible and visual alarm lamps and buzzers
19. Starting system: DC alternator is used to start engine
20. Short circuit protection: MCCB ari switch
21. Cooling system: Combined cooling water tank fittled to meet the requirement of radiation at ambient temperature
22. Filter system: Oil, fuel and air filter
23. Accessories: Exhaust elbow, bellow, muffler
24. Supply standard collocation:
A)Diesel engine with all accessories, 3 filter, electric systems
B)Alternator
C)Steel structure
D)Fan and water tank cooling system
E)Flange connector
F)12/24 V starting motor and charge engine
G)Air cleaner, fuel cleaner, oil cleaner
H)On-board control panel
I)MCCB air conservation switch
J)12/24V starting accumulator and Battery line
K)Set shock absorber
L)High-efficient silencerlnner
25. Packing: Standard export packaging or as customers requirement
Brand Name |
GTL |
Model Number |
GS series |
Speed |
1500/1800RPM |
Frequency |
50/60Hz |
Output Type |
AC Three Phase |
Place of Origin |
Fujian, China (Mainland) |
Rated Power |
10kva-5000kva |
Rated Voltage |
220/230/380/400/480V |
Engine |
Cummins, Deutz, Perkins etc. |
Alternator |
Stamford, Leroy somer, Maraton etc. |
Certificate |
CE |
Color |
Red,white |
Insulation |
IP23 |
Advantage 1 |
Make full power solution for you |
Advantage 2 |
Could be made parallel connection |
Advantage 4 |
Best quality,low price |
Advantage 3 |
best after service |
After 10 years of development, GTL company in energy generator industry has accumulated rich experience in manufacturing, the leading status. Headquarters is located in Xiamen, China.
Here, design, manufacture and sales of GTL brand series products and related technologies, and through the agency of global each country dealer network to provide customers with technical service. Products are widely used in office building, hospital, factories, municipal, power plants, university, entertainment. Besides, GTL can also according to customer special power needs to provide specific solutions for various industries and provide efficient and reliable electricity.
GTL production base in xiamen strictly enforce the ISO9000 quality and the industry standard, in order to ensure product outstanding quality.
