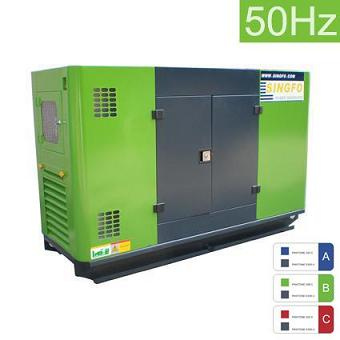

Soundproof Diesel Generator Set
Design Characteristic
Belt drive system: Belt drive system with tensioner offering automatic belt tension.
Maintenance: Both cylinder bore and cylinder head valve guide tube can be repaired by resisting.
Connecting rod: Alloy steel with high strength and inclined cutting.
Crankshaft: Alloy steel with whole bearing supporting and bearing and round corner harden.
Cylinder block: Dragon door style cylinder block without liner and with water pump turbo house resisted.
Fuel system: AD fuel injection pump with electrical governor.
Garret turbocharger: Bypass high efficient turbocharger.
Piston: Silicon- aluminium alloy piston with dual Ni-resist and oil cooling.
Starting function: Be started at without assistant installation; Be started at -with assistant installation.
Fuel consumption: Excellent fuel consumption with B. S. F. C 215g/kw. H.
Construction characteristic: Simple and compact construction, fewer components and light weight.
Attachment equipment:
Attachment equipment can be offered according to customer requirements. For sufficiently unleashing engine performance, whole engine attachments from our company, evaluated by Dongfeng Cummins Engine Company, be recommended.
|
Model: |
|
SFCJ 50KW |
|
Engine model: 4BTA3.9-G2 |
|
In-line, 4 Cylinder, 4 Cycle, Turbo Intercooler Diesel Engine |
|
Displacement |
3.9 Liters |
|
Rated Speed |
1500r/min (1800r/min) |
|
Rated Power |
50kW(60kW) |
|
Standby Power |
55kW(65kW) |
|
Fuel Injection Pump |
A Injection Pump |
|
Governor |
Electrical Governor |
|
Steady Speed Droop |
≤ 1% |
|
Lubricant Capacity |
11 Liters |
|
|
Coolant Capacity |
8 LitersNet Weight |
320kg |
|
Wet Weight |
340kg |
|
|
Coolant Intake Size |
Φ58mm |
|
|
Coolant Outlet Size |
Φ45mm |
|
|
Flywheel/Flywheel Housing |
SAE3#/SAE3# |
|
Cooling Way |
Positive Water Cooling Cycle |
|
Technical Datasheet |
|
|
Speed |
1500r/min(50Hz) |
1800r/min(60Hz) |
|
Output Power |
Engine Output |
Engine Output |
|
Standby Power |
55kW |
65kW |
|
Prime Power |
50kW |
60kW |
|
Test Condition |
|
|
Air Intake Pressure |
100kPa |
|
|
Standard Light Diesel |
0# Light Diesel |
|
Fuel Intake Temperature |
40Air Intake Restriction |
251mmHg |
|
Exhaust Back Pressure |
76mmHg |
|
|
Lubricant Oil |
15W40-CF4 Upgrade |
