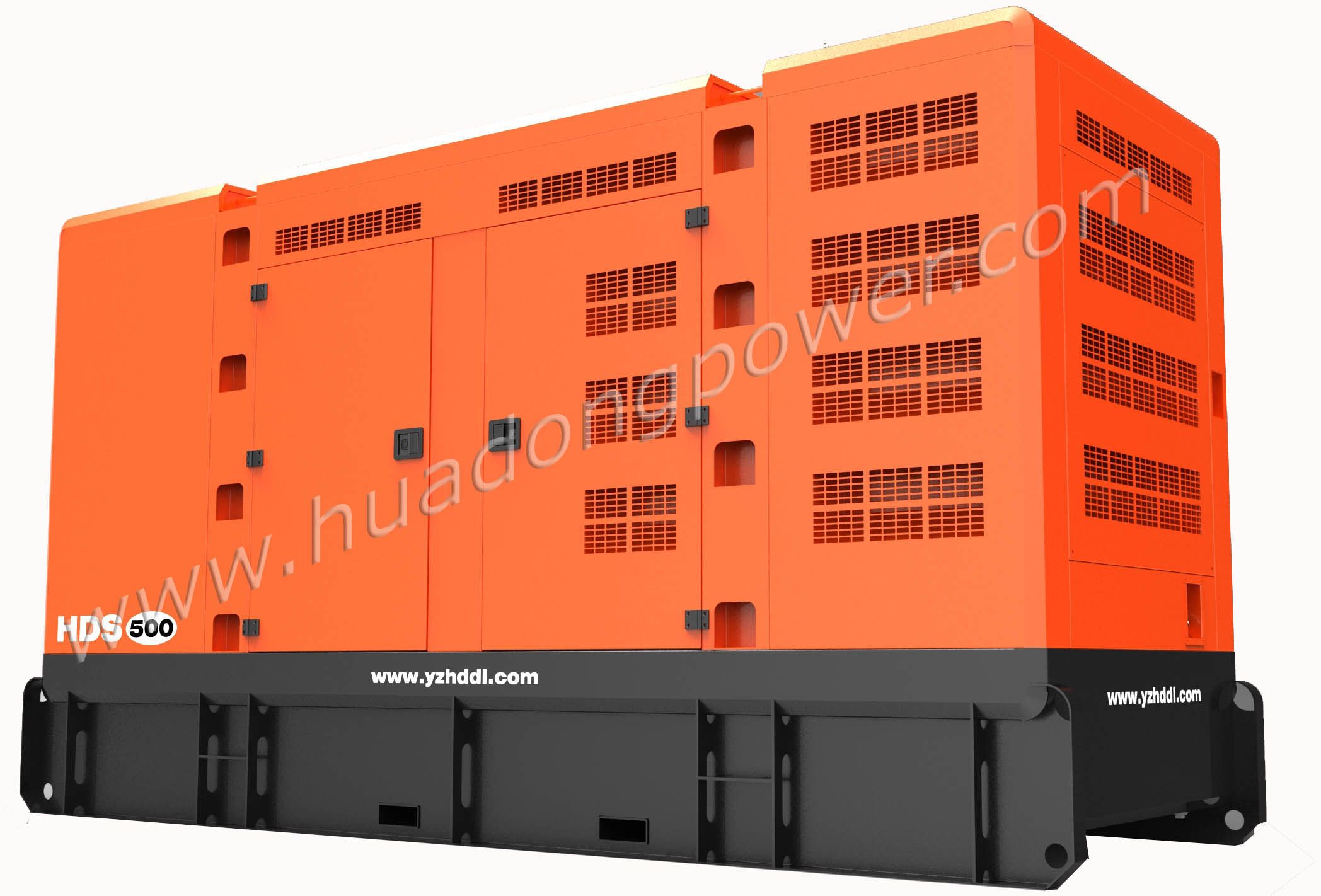

Cummins diesel generator set remain the number-one choice for standby and emergency power systems, worldwide.
Features and benefits:
As a mature technology, cummins clean and modern diesel-powered generators offer these key benefits:
Rapid product availability
Proven reliability and low life-cycle costs
High efficiency and operational flexibility
High quality electrical performance
Well-established service and fuel supply infrastructure
Optional factory-integrated exhaust after treatments reduces emissions for high-hour use in environmentally sensitive locations.
Alternator
Stamford / marathon alternators have been carefully selected to match the overload performance of the engine and incorporate the following: Screen protected and drip proof, self exciting, self regulating brushless alternator with fully interconnected damper windings, IC06 cooling system and sealed for life bearings, pmg fitted as standard on bcp 1000 models and above. Other brand alternators are available on request
Control system
1)manual type
Adopts 501k control module of deepsea in u. K, key start, over speedy lubrication oil with low pressure, high temperature of cooling water, free of charge voltage, and other protection functions. There are emergency stop button, current meter, voltage meter, running time meter, frequency meter, oil pressure meter, water temperature mete, etc on the control box.
2)amf type
Adopts 7220, 5320 control modules of deepsea in u. K. In case of stop of supply of network, or other signals requiring start of the set, after confirmation of delay (0-30 seconds adjustable), the set shall self start (1-8 times adjustable, completion rate of the first start more than 99%), after self confirmation of normal supply of the set, supply power. After recover of the network, after delay confirmation (0-30 seconds adjustable), self cooling and stop of the set (0-300 seconds adjustable ). Meanwhile, this type has protection functions of the basic type, digit display of parameters of voltage, current, frequency, running time, battery, voltage, rotary speed, etc.
3)ATS type
Inside installation of socomec transfer switch. The panel of the control electrical has indicators. Fitted with the automatic type control cabinet, the auto supply system between the urban power and the generator can be achieved. Under normal operation, the control cabinet is connected with the urban power, the inside electrical auto charged to ensure normal operation of the storage battery for start. In case of stop of supply of urban power, insufficient voltage, lack of phase, the generator will auto start, after completion of start, the change switch inside the auto change cabinet will cut off the urban supply. After normal supply of the urban power, the switch will change into the supply of urban power, and control the set run freely until balance and decrease of engine, auto stop.
Yangzhou Huadong Power Machine Co., Ltd., located in Xiancheng industrial zone, Jiangdu district, Yangzhou city, Jiangsu province, P. R. China, is a high-tech private enterprise specializing in generators, diesel and gas generator sets' R & D, manufacturing, sales and service. The company covers an area of 100, 000 square meters, in which plant and office covers an area of 52, 000 square meters. The company is the designated manufacturing unit of diesel generator sets for the General Armament Department and General Logistics Department of PLA.
With over 30 years of R & D and manufacturing experience, Huadong power established the competitiveness to be involved in domestic and international market and the solid foundation in designing and providing power solutions for high-end customers and special user. 10 sets automatic, intelligent inspection platform with total capacity of 11600KW (the largest single testing capacity is 6500KW), can achieve multiple sets running in parallel, active and reactive detection and remote control, remote signaling detection. That provides a strong guarantee for the final inspection before products delivery.
The corporate culture--"Conduct and quality", is the criteria of every employee in life and work; The business philosophy --"strive to be the best instead of the biggest", always reminds each decision-maker that only step by step and pragmatic style of work enable enterprises to the steady and healthy development; The design concept-- "meticulous and reliable, low-carbon and environmental protection", is the eternal pursuit of the goal of our technology team; The service concept-- " fast, superb, standardized ", requires every employee to have a quick reaction speed, superb skills and standardized style of service and to spare no effort to solve the problem for each user.
Yangzhou Huadong Power Machine Co., Ltd. Has established a long-term strategic partnership with the world famous engine and generator manufactures such as CUMMINS, Volvo, SCANIA, MTU, PERKINS and STAMFORD etc. The "HUADONG" brand diesel generator set ranges from 24-2000KW and covers basic type, auto-starting type, auto-switching type, parallel running type, weather-proof type, trailer type, sound proof type and vehicle power station type etc. Nowadays, "HUADONG" brand generator sets play an irreplaceable role in key projects in domestic and international market in a variety of areas.
