ZTF automatic tracking system consists of Tracking mechanical transmission system and photoelectric automatic control system. The new advanced mechanical transmission assembles with automatic photoelectric control, ensuring our ZTF power generation efficiency increase more than 50% and reducing power generation cost more than 40%; And has other advanced performance.
Mechanical transmission system of ZTF is controlled by automatic photoelectric control system, and driving the gird of photovoltaic panels (Solar cell matrix), likes sunflower towards sunshine to obtain the most effective tracking works.
ZTF has single axis tracking and dual-axis tracking models. Single type is tracking sunshine by horizontal rotation of grid photovoltaic panel, it can increase power generation more than 40%. Dual-axis type is driven by the angle change of horizontal rotation and prone, so that the grid photovoltaic panel can focus on the sun at any time. The Dual -axis model can operate in the nonlinear movement of the sun light tracking, ensures that the sunlight axis is always vertical exposure on photovoltaic panels array. Therefore, the photovoltaic array can absorb sunshine anytime to maximize the power efficiency
The ZTF generates power 1.4 times more than fixed power generation system. To raise the power efficiency more1.7 times, adding prone and tracking device is absolute solution.
Because of the difference of the sunlight angle, the effective time of general fixed solar power generation system is just 3 hours, but ZTF end on sun at anytime, lengthened the effective generation time, about 12 hours in summer, even 8 hours in winter, so that greatly increases the generation efficiency
Photoelectric control system of ZTF is a commander and control center for tracking movement of grid photovoltaic panel. It can follow the different position of sunlight, giving command to the driving mechanism to move the grid photovoltaic panel on time. Adjusting the horizontal and prone angle automatically, to ensure the photovoltaic array can always perpendicular to the light axis of sunlight in the movement of tracking sun from sunrise to sunset. It also gives command grid photovoltaic panel automatic return to origin at night. For class 10 wind speed, it can drive grid automatic return to the horizontal position on time, ensuring the safety of equipment.
Our company can design and produce any type of dual-axis tracking solar power system equipment as your request. If you are interested in our product, please contact us.
|

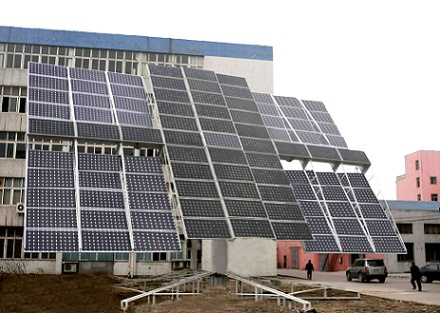

Type |
SHSZTF-S-18 |
Type of pv panels |
180w,
1580*808*45mm |
|
Network area |
132.53M² |
Quantity of panels |
99 |
|
Tracking method |
2-axes |
Arrangement of panels |
11rows*9columns |
|
Motor power |
≤ 20W |
Rotational angle
(Horzontal) |
360° |
|
Size of tracker(mm) |
14468*9160*5800 |
Rotational angle(vertical) |
180° |
|
Mechanical life |
30 years |
Mas anti-wind spdde |
34m/s |
N. W. (not include
panels) |
4000kg |
Load bearing weight |
1600kg |
|
Tracking accuracy |
≤ 0.1° |
Working temperature |
-40º C~+70º C |
|
Ambient humidity |
RH≤ 80% |
Material |
Hot-dipped Zinc |
Comparing with the traditional fixed solar power, the tracking solar photovoltaic power equipment has significant advantages in increasing power generation efficiency, decreasing power generation cost, and reducing land use. This equipment is a new advanced technology product, and is highly acceptance by local and foreign solar power industry for application nowadays.
The ZTF automatic tracking solar photovoltaic power equipment (ZTF) is consisted of our own designed automatic tracking system. The mechanical tracking system is a new advanced technology in the world and has a patent controlling by our company. It assembles with solar photovoltaic cell module array (photovoltaic panels), and inverter system to form the ZTF. Hence, the photovoltaic cell module array (photovoltaic panels) is installed at the top of equipment, like sunflower, and rotating in accordance with the sunshine direction from sunrise to sunset. The tracking accuracy is less than 0.05 degrees/sec and directly facing towards the axis of sunshine so as to maximize solar energy at any time. Therefore, the ZTF has advantages of increase power generation efficiency more than 50%; Decreasing power generation cost more than 40%. Moreover, the tracking power is less than 0.5% of peak power, and equipment can work under Class 10 wind speed. The ZTF has excellent performance in energy saving and less pollutant; And has mechanical life as long as 30 years. The price is reasonable and is a high quality product up to international standard; ZTF would be the first in the China market. Furthermore, our product has examined by Wuhan Product Quality Supervision and Inspection Department, in fully compliance with the local technical standard Q/WSHS01-2009.
Since the launching of our ZTF, the product is deeply focused by the industry, both local and external markets. We had invited to participate in "World Photovoltaic Exhibition", which organized in Germany on April, 2008. Our products were appreciated by the participating merchants. In November, 2009, ZTF was selected by the organizer of 2010 Expo Shanghai as one of power supply, providing green energy and being a displayed product at the exhibition. Moreover, the ZTF was installed as permanent displayed unit at the Future Hall of 2010 Expo Shanghai...
To fulfill the requirement of customer need, our company has accredited ISO9001 International Quality Management System Certification; And the technical standards passed the export products requirements, both Q/WSHS01-2009 test and CE certification. Recently, our 2KW-20KW ZTF products have been sold to Beijing, Shanghai, Wuhan, Baoding, Wuxi, Changsha, Lhasa, Hebei, Henan, Jiangsu and etc.; And also exported to Europe, Australia and other countries and etc...From the customer feedback survey, our products were well accepted.
Our company is willing to cooperate with local or foreign enterprise and individual for development of our business, and is working continuous to research and develop new products for promoting of photovoltaic power green energy in the world.
