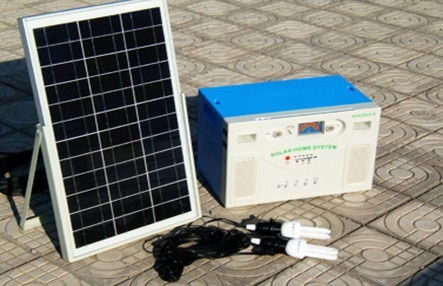

50W Solar Home System
Item: SEHS-50W Main Components
Solar Panel Model SEM-50Wp 1* Solar Panel(50W/18V) 1* solar charge controller(10A/12V) 1* Inverter (150W/12V) 1* storage battery (40AH/12V)
1* User Systemcabine
1*panel bracket
Power 50W
Operating Voltage 17.2V
Operating Current 2.9A
Storage battery Model lead-acid battery (free maintenance)
System Voltage 12V
Capacity 40AH
Solar charge controller System Voltage 12V
Rated Current 10A
Inverter Type wine wave inverter
Rated Power 150W
Peak pPower 300W
Output Voltage 110V to 240V/50Hz/60Hz
User Systemcabine Material iron and steel, zincing, sprayed with plastic
Load-bearing Ability Load Specification Load Power Quantity Operating time/day Power Consumption/day
Energy Saving Lamp 7W/12V 7W 1 9 63Wh
Air fan 50W/220V 50W 1 3 150Wh
TV 21" 40W 1 1 40Wh
Total: 97 253Wh
Established in 2006, Sunny Energy is a professional high-tech photovoltaic application study and manufacture enterprise, and specialized in researching, producing, sales and after sales service of solar module, system & consumer products. We have obtained the international quality system certification such as ISO9000: 2000, TUV, IEC, CE, UL. We are the strategical partner of Taiwan Motech. This relationship strongly assures high quality & fast delivery for us.
We have two factories, one in Dongguan, the other in Wuxi, with annual production capacity 40MW.
