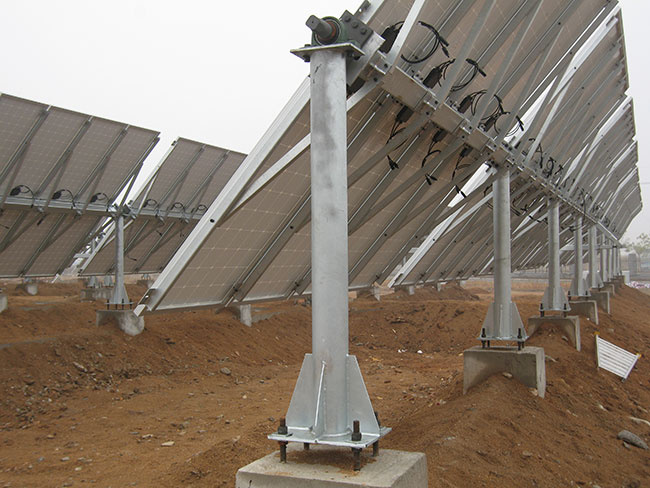

Horizontal Single Axis Solar Tracker
1. Control system: Time control tracker ( Accuracy: ≤ 0.5. )
2. Azimuth angle: -45. ~45.
3. Unit Power: Horizontal single axis: 50~200W; Tilted single axis: 50~150W
4. Material: Q235 Hot galvanizing Steel
5. Maximum Anti-wind: 42 m/ s
6. Mechanical lifetime/guarantee: 20/1 Year
Structure features:
1. Driven by four-rod linkage, more reliable and stable.
2. Driven by slewing bearing reducer, low failure rate and easily to be maintained
3. Simple structure, modular assembling, more convenient for transportation and installation.
4. The vulnerability of consumable parts made of standard products, a simple substitution. Making vulnerable and consumable parts be standard products, easily to be replaced.
Features of control
1. Without shadow block among adjacent systems in the whole tracking process.
2. The tracking system has self-return function at night.
3. Apply close-loop timing control mode, high tracking precision, atomatic system error correction.
4. Perfect human-computer interaction, fault self-diagnosis and feedback function.
5. Natural disaster (strong wind, heavy snow, hailstrom)resistant function.
Improve the safety performance of the power station.
6. With network monitoring function, achieve centralized control, suitable for large power station. Driven by four-rod linkage, more reliable and stable.
Established in 2006, Zhejiang Jin PU Sen New Energy Technology Co., Ltd., is a science and technology enterprise that combines research, development, manufacture and marketing of solar thermal comprehensive. With registered capital of 20, 08 million, the research and development center of new energy enterprise was set up at the same year. In 2010, it was recognized as Hangzhou High and New Technology Enterprise and Hangzhou Eyas Project Enterprise. While the company is conducting self technology innovation, it also actively seeks long-term cooperation with large numbers of both domestic and foreign research institutes, and has established Fuyang Enterprise High-tech Research and Development Center and the Sino-America Enterprise High-tech Research and Development Center in succession, which enhances the company's continuity of research and development ability. At present, the company has owned 46 national patents, including 6 patents of invention.
The company mainly produces flat-plate solar water heaters, efficient micro-porous superconducting solar water heaters, vacuum tube collectors, heat pump-four dimensional integrated units, solar gas wall mounted integrated systems, solar steam generators, high efficient solar air-conditioners and other series products. Relying on our strong research and development strength, we have developed a series of efficient solar thermal comprehensive utilization products with wide applications, and have become one of the earliest domestic manufacturers that have realized the independent research, development and production of pressurized solar water heaters. The products are widely exported to the United States, Europe, Middle East, Southeast Asia, and other countries.
As "science and technology reshape life, and energy saving creates wealth", the company adheres to the enterprise tenet of "technology first, caring for people, green energy and benefiting the society", takes "to build a new energy industry and to create a technology-based brand" as the goal, and strictly enforces the ISO9001: 2008 quality system, the ISO14001CE and other international standards, striving to create a first-class "new energy" enterprise and create a new "green home full of golden sunlight".
