Function:
1. Provide 2 ways of DC 12V for home lighting
2. Provide two ways of DC5.5V 0.5A to charger
Various digital products

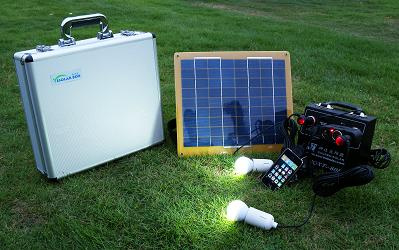

1. Solar panel: 10W, 12V, with 5m connected cable
2. Maintenance-free lead-acid batteries: 7Ah, 12V
3. LED lamps: 2W, 12V with 5m connecting cable
4. AC adapter: Output DC1000mA15V
5. 10 in 1 output cable with 10 different connectors
6. Package: Aluminium box
II. Features & benefits
1. Charging and protection functions: The red LED on the panel, said charging. When the power switches opens under the sun, the red LED lights means charging. When the battery is full, LED lights automatically switch off;
2. Discharge and protection functions: The green LED on the panel shows a normal discharge, when the battery voltage is higher than the start voltage, the green LED is lighting, 12V lighting and 5.5V charge both output; When the battery voltage is lower than the protection voltage, the green LED extinguished, 12V lighting and 5.5V output of charging has no output, all need to charge to be used
3. Electric quantity indication function: 3 segment yellow LED respectively indicate30%, 60%, and 100% of the battery electric quantity
4.12V lighting and 5.5V charging function: Control panel has two cigarette
Lighter output port, output voltage 12V, current 10A MAX, do not overload use;
Two USB output port, output voltage of 5.5V, current of 500mA MAX, do not
Overload use; All of the above output comes with overload protection.
