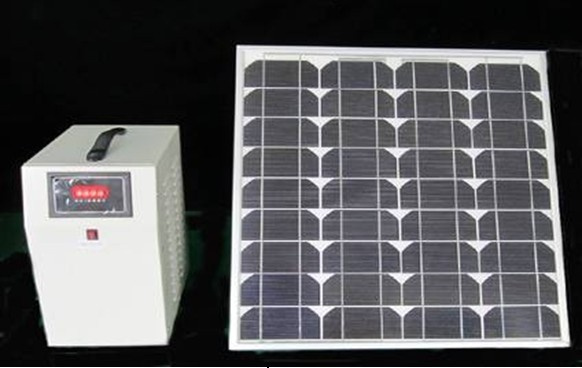

Solar Panel System
Inverter, controller & all accessories
CE, TUV, IEC certificate
Limited warranty 25 yrs
|
Technical data |
|
|
|
|
|
|
|
|
|
|
Capacity |
200W |
|
System voltage |
12VDC |
|
Best output power everyday |
200WH |
Inverter
and controller integrated(LCD function) |
Output wave |
Modified sine wave |
|
Output voltage |
AC220V |
|
Output frequency |
50HZ/60HZ |
|
Precision of output frequency |
± 6% |
|
Solar panel |
Pmax |
60W |
|
Vmp |
17.5V |
|
Imp |
3.44A |
|
Battery |
Capacity |
12V38AH |
|
Solar panel bracket: Aluminium-alloy |
|
Attachment: Fuse 2pcs, Manual 1pcs, 3W LED: 2pcs |
|
Package data: |
|
|
|
|
|
Part |
Size (L*W*H mm) |
Weight (kg) |
20' (pcs) |
40' (pcs) |
|
Power box |
310*190*310 |
18.58 |
250 |
520 |
|
Solar panel |
450*575*65 |
7.42 |
|
Name of Load |
Working Time (H) |
|
35W Color TV Only |
10 |
|
6W Energy-saving Lamp Only |
65 |
|
26W Fan Only |
14 |
Shenzhen Xuyuan Technology Co., Ltd is a high-tech company combining product design, development, manufacture and sales, which specializes in new green energy products of two main areas. One is high-quality Solar Modules and Solar Application System, and provide technology services. One is LED lighting and LED combined with solar energy.
Solar products include high efficiency Mono Crystalline & Poly crystalline Solar Panel ranging between 10 Watts and 310 Watts; Solar Power Generation Systems for home & commercial establishments for use with different appliance. Our products have been certified by bodies such as: TUV, CEC, CE. Recently, we launched the 3W-120W folding solar panel kit to meet the demand of various customers.
Our LED products include LED Headlight, LED Flashlight, LED Bulb, LED Multi-function Emergency Light etc. We has made brilliant achievements in LED portable lighting and small power emergency system with the most avant-garde and fashionable design.
"Good Faith, Quality, Innovation" is our enterprise spirit. We consider it as our prime responsibility to create an environment with green energy for the betterment of the world. Xuyuan can provide customized products according to specific requirements. We are committed to establish long-term relationships with worldwide customers.
