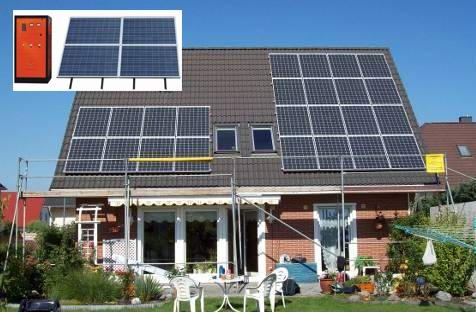

Off-Grid of complete Solar System including Mono-crystalline Solar Panels, Off Grid Hybrid Inverter and charger controller, battery, solar panel shelf and cables with accessories.
| Solar system 1000w |
| Technical data: |
| Capacity | 2000VA |
| Rate Output Power | 1000W |
| Output wave | Pure sine wave |
| Output current | 3.6A(220V) / 7.3A(110V) |
| PREcision of output voltage | ±3% |
| Precision of output frequency | ±0.1% |
| False output wave of AC | less than 3% |
| Power factor | 0.8 |
| Overload ability | 120%,30 seconds |
| Invert efficiency | More than 85% |
| Output voltage | AC110/220V |
| Output frequency | 50HZ/60HZ |
| Maximum output power of Solar Module | 1000W |
| Maximum output voltage of solar module | 70V |
| Maximum output current of solar module | 13.8A |
| Battery capacity | 48V240AH |
| Best output power everyday | 3768WH |
| Package data: | | | | |
| Package Measure of power box | 50*50*70CM |
| G.W.of power box | 25KG |
| Package Measure of solar Module | 152*70*100CM |
| G.W. of solar Module | 175KG |
| Battery capacity/box | 50*40*90CM |
| G.W. of battery bracket /box | 410KG |
| 20' | 14 |
| 40' | 30 |
| Reference: Max Power Supply Capacity Reference | | | |
| Name of Load | Model | Power | Quantity | Working Time per Day (H) | Continued Working Days |
| Color TV | 21 inch | 65W | 1 | 8 | 3 continued overcast and raining days |
| Satellite TV Receivers | | 25W | 1 | 8 |
| LCD Computer | | 100W | 1 | 10 |
| Energy-saving lamp | | 11W | 12 | 6 |
| Printer | | 30W | 1 | 2 |
| Electrograph | | 150W | 1 | 2 |
| Water Pump | | 200W | 1 | 5 |
| Refrigeratory | 150L | 100W | 1 | 24 |
Our company primarily working on the manufacturing and sales of amorphous silicon thin film solar module & accessories, as well as the PV construction integration, research, develop and construct on the big power station.
So far, two production lines with output of 10MW already founded and began to work. With the commencement of the third line, the production of annual output of 5MW, then 15MW will be completed at the end of the year.
Amorphous silicon cells have been widely concered in the market, relying on advantage of less material of silicon, making simple &easy to large volume production, better translucent, larger generating capacity of unit power, and low system cost.
As a professional production of amorphous silicon solar battery production enterprises, the Company owns domestic advanced technology and equipment, as well as a speciality team of famous expect & scholar, senior engineer.
