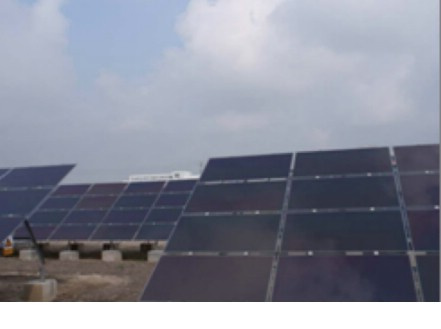

Solar Cell Module Max power 500 W( 170W*3)
Converting efficiency ≥16% mono-crystalline silicon with 125*125 standard square
Electrical data Open circuit voltage 44.5V Max voltage 35.9V
Short circuit current 15.36A Max current 14.22A
Type and Size Type A 1 array*3modules in series 2464*1580 mm Module size 808*1580*35 mm
Type B 1 array*3modules in series 2464*1580 mm
Installation angle Install at 0~ 60degree from the horizontal
Battery Pack Rated capacity 300AH Combined mode 150AH/12V2PCS as a array and 3 arrays in parallel
Rated voltage 24V
Battery type Maintenance-free lead-acid Discharging rate ≤50%
Ambient temperature -30c~+60c Weight 250Kg
Lifetime 25 years
Charge Charge/Discharge controller Model CML40
Discharge Controller Size 20A( 12/24 adaptable )
Input output Manufacturer Phocos
DC output 12V 4 outlets for 4 PCS DC 12 V /11 W CFL
24V 4 outlets for 4 PCS DC 12 V /11 W CFL
AC out-A 50/60Hz Inverted output of standard electricity wave Rated output power 500W for group-adaptive loads e. G. Lights, TV, electrical heaters
AC output-B50/60Hz inverted output of pure electricity wave Rated output power 500W for geist electrical machines loads e. G.: Fridges\fans\water pumps
P e r f o r m a n c e
Max Output DC 12V 100W Rated output(100%) DC 12V 60W
24V 100W 24V 60W
AC Standard electricity wave 400W AC Standard electricity wave 500W
Pure electricity wave 400W Pure electricity wave 400W
Power ability for 50% loads Available Power for a sunny day's charge 6_8 hours
Available power for full battery 25 hours
We are a professional company to design and produce the solar lights and all of the correlative products. The following is ours major products list pls find it;
1)Solar home lighting system
2)Solar camping lantern
3)Solar street lighting system
4)Solar table lamp
5)Solar torch/flaslights.
6)Solar cell Phone charger
7)Solar road stud
8)Solar charger bag
9)Solar car charger
We hope to cooperate with you and your company, if you also interested in our products pls feel feel free to contact us, will appreciate for yours any help.
