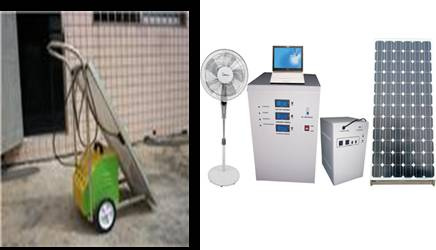

Off-grid Solar PV Home System
Solar PV Home Systems are mainly used for separate electricity supply to the areas where extending a utility power line is very expensive, where have no moving parts and require little maintenance, or where produce electricity without polluting the environment, such as plateau, island, pastoral areas, frontier posts etc.
|
The 400 w Solar Home System |
|
Specification |
Available loads |
|
Solar panel: 400Wp |
Load Name |
Load power |
Continual work time |
|
Storage battery: 12V/300AH |
|
Inverter (sine wave): 500w |
|
Rated load power: 200w |
21 " color TV |
70-80w |
5 |
|
Rated voltage: 220V/50HZ and DC 12V |
Energy-saving lamps |
2*7W(DC 12V) |
6 |
|
Rated charging current: 5.7 A |
Energy-saving lamps |
2*5W |
5 |
|
Over discharging voltage: 10.5 V± 0.2 V |
Electricity fan |
40W |
4 |
|
Recovery voltage: 12.6 V + /-0.2 V |
Satellite receiver |
24W |
10 |
|
Intelligent controller |
Others |
|
|
|
Note: |
|
1. All the loads can be used at the same time but the total power should not be more than 200w. |
|
2. The system has the protection device to over-charge, over-discharge and short circuit. |
|
3. The inverter and storage battery can be installed separately or integrally. |
|
4. The system can work in 3 consecutive raining or cloudy days |
|
|
|
|
|
|
The 800 w Solar Home System |
|
Specification |
Available loads |
|
Solar panel: 800Wp |
Load Name |
Load power |
Continual work time |
|
Storage battery: 12V/450AH |
|
Inverter (sine wave): 1000w |
25 " color TV |
80-100w |
5 |
|
Rated load power: 600w |
Energy-saving lamps |
3*11W |
6 |
|
Rated voltage: 220V/50HZ and DC 12V |
Electricity fan |
40W |
8 |
|
Rated charging current: 5.7 A |
Satellite receiver |
24W |
10 |
|
Over discharging voltage: 10.5 V± 0.2 V |
Washing machine |
350W |
3 |
|
Recovery voltage: 12.6 V + /-0.2 V |
Others |
|
|
|
Intelligent controller |
|
|
|
|
Note: |
|
1. All the loads can be used at the same time but the total power should not be more than 600w. |
|
2. The system has the protection device to over-charge, over-discharge and short circuit. |
|
3. The inverter and storage battery can be installed separately or integrally. |
|
4. The system can work in 4 consecutive raining or cloudy days |
|
|
|
|
|
|
The 1000 w Solar Home System |
|
Specification |
Available loads |
|
Solar panel: 1000Wp |
Load Name |
Load power |
Continual work time |
|
Storage battery: 12V/600AH |
|
Inverter (sine wave): 1200w |
29 " color TV |
100-120w |
5 |
|
Rated load power: 800w |
Energy-saving lamps |
4*11W |
6 |
|
Rated voltage: 220V/50HZ and DC 12V |
Electricity fan |
40W |
8 |
|
Rated charging current: 5.7 A |
Satellite receiver |
24W |
10 |
|
Over discharging voltage: 10.5 V± 0.2 V |
Washing machine |
350W |
4 |
|
Recovery voltage: 12.6 V + /-0.2 V |
50L/refrigerator |
85W |
continue |
|
Intelligent controller |
Others |
|
|
|
Note: |
|
1. All the loads can be used at the same time but the total power should not be more than 600w. |
|
2. The system has the protection device to over-charge, over-discharge and short circuit. |
|
3. The inverter and storage battery can be installed separately or integrally. |
|
4. The system can work in 5 consecutive raining or cloudy days |
