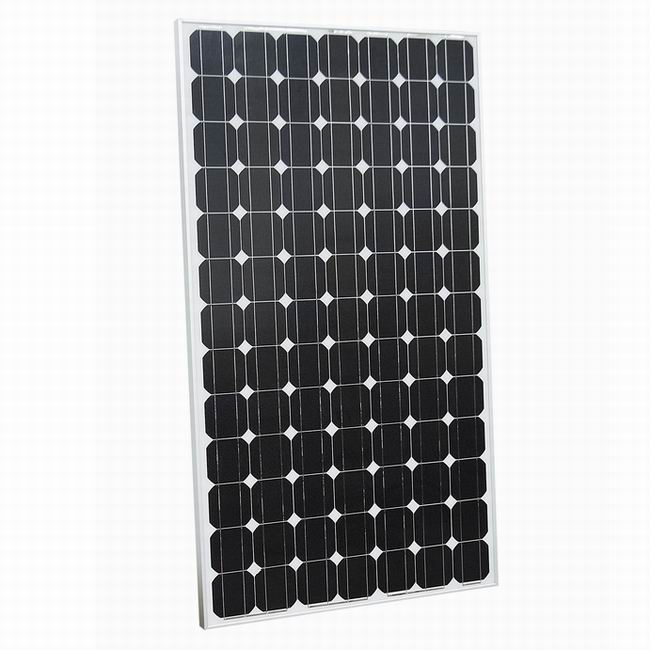

Monocrystalline solar module, 45watt, TUV, CEC, IEC, ISO, CE, RoHS Certified, 25Year Warranty,
1) High Efficiency
2) 12V DC standard output
3) CE, TUV junction box
4) Lifetime: 25 years
5) Warranty: 5 years
6) 90% power 10 years
7) 80% power 20 years
Model QC-M30W
Nominal power Pm 30W
Power allowance ± 10%
Optimized working voltage Vm 17.6V
Optimized working current Im 1.87A
Open circuit voltage Voc 21.7V
Short circuit current Isc 1.70A
Module efficiency 11.30%
Withstanding voltage DC715V
Dimension of module (mm) 640*306*18
Net weight (kg) 2.5
Packing (PCS/carton) 10
Volume (m3) 0.067
Gross weight (kg/ carton) 30
Dimension of pallet (mm) 1382*950*1825
Quantity in a 20' container 30carton/pallet× 8 pallet =240 carton (2400PCS)
Time returnable and replaceable 3 year
Power attenuation 10year≤ 10%, 20 year≤ 20%
Shandong new energy seven colors Limited, located in a very convenient Dezhou City, Shandong Province Economic Development Zone. Close to Beijing-Fuzhou and 314 provincial highway interchange, the environment elegant. Company Sets R & D, design, production in a body, the main products are solar cell components, Gaogan Deng, road lamps, Jingguan Deng, Ting Yuandeng, Caoping Deng, the power-transmission, for Light, buried lights, lights and moisture-proof Solar lighting, and other types of more than 1, 000 varieties, and to undertake large-scale solar photovoltaic project.
Company covers an area of 10, 000 square meters, and strong technical force, well-equipped and advanced technology. "Technological innovation, refinement and pragmatic" for the development of philosophy, as "good faith" for the soul of business. Products are exported to Europe and the United States, Southeast Asia, the Middle East and other countries and regions. Enjoy high reputation and visibility. A green, energy saving, lamps and cultural harmony, Ltd. is a new energy to remain out of the ideals and pursuit. We sincerely hope that close cooperation with clients, go hand in hand to create a splendid tomorrow!
