Solar Home System
Solar Home System consists of the solar modules, the solar controller, the storage battery (ies). If the output power is 220 VAC or 110VAC, the inverter will be needed too. Function of each basic part is:

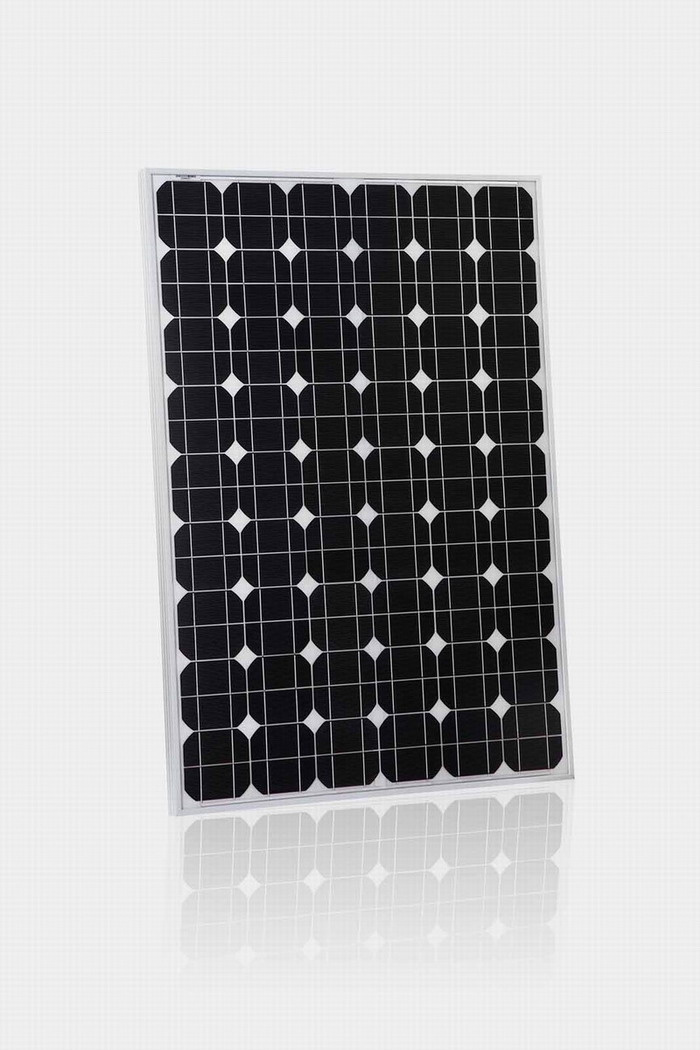

1. The Solar Modules: The solar module is the core and the most valuable part of the solar electricity generating system. The function is to convert the radiation of the sun into electricity or send it to the storage battery, or promote the workloads.
2. Solar Controller: The function of the solar controller is to control the working status of the whole system, and provide the charging protection and over-discharge protection for the storage battery. In places where differences in temperature are too high, the qualified controller shall have the function to compensate the temperature. Other additional functions such as the light-operated switch or the time-operated switch are all option for the controller.
3. Storage Battery: Normally the lead-acid battery. In small and micro systems, nickel-hydrogen cell, nickel-cadmium cell or lithium cell can be used too. The function is to storage all electricity emitted by the solar modules when there is the sunlight, and to release the electricity when necessary.
4. Inverter: The direct output solar energy is normally 12VDC, 24VDC, and 48VDC. To provide power for apparatus of 220VAC, DC-AC inverters are required.
Can track sunshine to concentrate on and collect sun power into electricity easily.
Model No.: TDS-10000W
|
Capacity |
9000VA |
|
Rate Output Power |
10080W |
|
Output wave |
Pure sine wave |
|
Output current |
36.6A(220V) /73.3A(110V) |
|
PREcision of output voltage |
± 3% |
|
Precision of output frequency |
± 0.1% |
|
False output wave of AC |
less than 3% |
|
Power factor |
0.8 |
|
Overload ability |
160%, 30 seconds |
|
Invert efficiency |
More than 88% |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Maximum output power of Solar Module |
10080W |
|
Maximum output voltage of solar module |
70V |
|
Maximum output current of solar module |
144.0A |
|
Battery capacity |
48V2400AH |
|
Best output power everyday |
39600WH |
Anhui Tianding new energy technology Co., LTD is specialized in the production of single or more crystal wafer solar panels, and generating system, for the users to offer long-term stable quality, reasonable price of solar panels.
Founded in early 2009, we are a hopeful private high-tech enterprise in the lower reaches of Changjiang River. As a new young menber of China PV industry, committed to developing, manufacturing, and delivering reliable and cost-effective solar panels and solar street light systems etc. Solar PV technical products.
We offer clean-power for various application and market, from off-grid systems, to homes, to public facilities lighting system etc., with high quality and beautiful appearances. Our solar modules are installed in many areas in Anhui province and some other zones nearby.
Our company have gotten products certifications as CE and ISO9001, in addition we are getting up TUV certification. so we can promise the quality of our products.
Now our new production workshop is going to be completed soon, it covers more than 3000 squares, we have standarded production line and excellent first-line workers.
Advanced enterprise culture leads us pursuing China's clean energy'bright tomorrow.
