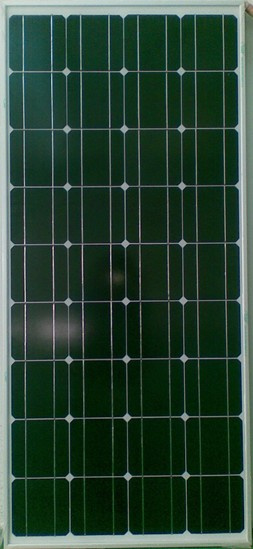

Model type: Monocrystalline silicon, 125 x 125mm, 36PCS
Maximum output power (Pmax): 80W
Maximum output voltage (Vmp): 17.64V
Maximum output current (Imp): 4.54A
Open-circuit voltage (Voc): 21.96V
Short-circuit current (Isc): 5.1A
Optimized cell efficiency (η): 15%
Wattage tolerance: ± 3%
Number of bypass diodes: 3PCS
Maximum system voltage: 1, 000V DC
Physical data:
Glass: 3mm thickness, high transmission and low iron tempered glass
Encapsulation: EVA laminated water proof helps make modules long lifespan
Backsheet: Rigid white TPT
Frame: Anodized aluminum alloy
Junction box: IP65 rated
Weight: 19.6kg
Dimensions: 1, 650 x 992 x 50mm
Number of drainage holes: 4
Test parameters:
Standard testing condition: AM1.5, 1, 000W/m² , 25° C
Dielectric insulation voltage: 3, 000V DC maximum
Allowed operating temperature: -40 to 85
Maximum load: 5, 400Pa
Impact resistance: 25mm (1 inch) at 23m/s
Warranty: Power output will be at least 90% after 10 years and more than 80% after 25 years
Package type: In carton; Customized packing ways are accepted
Shandong blpv new energy technology Co., Ltd was established in 2010, which is located at naoshan economic development zone in qingzhou, shandong province. The company covers an area of 80 acres. The first stage investment is 120 million RMB.
Shandong bl-PV new energy Co., Ltd is a highly recommended brand company of solar panel on golden exhibition booth by CCTV. Under the guidance of the construction of China's energy program, our company's priority is to save and protect unrenewable energy and develop promotion of green energy. We are dedicated to the environmental protection and clean renewable energy of research, production and popularization. The main business of our company is about the solar photovoltaic power generation series products, energy conservation and environmental protection products. It is the collection of scientific research, development production and the integration of sales and installation of high-tech enterprises.
Our company uses national energy application of new technology research and development center as the technical research and development platform. The company uses diversified products and excellent service to win the customers' satisfaction. The aim of our company is to make contributions to improve our common survival environment and construction of harmonious society.
