FEATURES
`Long Service Life, 25 years warranty;
`ISO9001, CE, TUV, IEC, UL certified
`High Efficiency Solar Cells
`Special Aluminum Frame Design
`High Transmission, Low Iron Tempered Glass
`Advanced Cell Encapsulation
APPLICATIONS
`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications

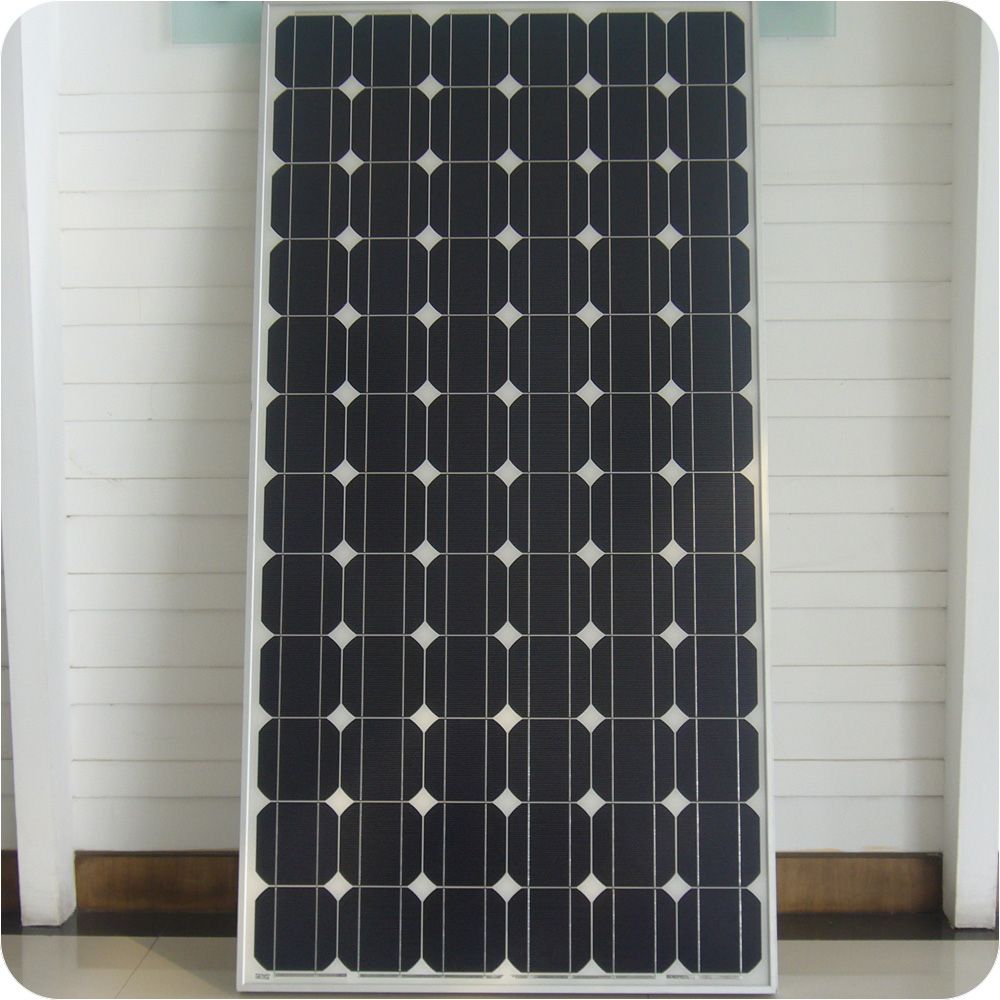

Item No |
YMH250W-72M |
Mono or Poly |
Mono |
Maximum Power(Wp) |
250w |
Maximum Power Voltage(V) |
34.40 |
Maximum Power Current(A) |
7.26 |
Open Circuit Voltage(V) |
43.20 |
Short Circuit Voltage(A) |
7.82 |
Number of Cells(Pcs) |
72 pcs(6*12) |
Size of Module(mm) |
1956*992*50 |
Size of Solar Cells(mm) |
156*156 |
Brand Name of Solar Cells |
CEEG or JA SOLAR |
Maximum System Voltage(V) |
1000 |
Temperature Coefficients of Isc(%) |
+0.1/degree |
Temperature Coefficients of Voc(%) |
-0.38/degree |
Temperature Coefficients of Pm(%) |
-0.47/degree |
Temperature Coefficients of Im(%) |
+0.1/degree |
Temperature Coefficients of Vm(%) |
-0.38/degree |
Temperature Range |
-40degree~+85degree |
Surface Maximum Load Capacity |
60 m/s(200kg/sq.m) |
Allowable Hail Load |
Similar to a steel ball that falls down from 1 m height |
Weight per Piece(kg) |
23 |
Junction Box Type |
With TUV certificate |
Length of Cables(mm) |
900 |
Cell Efficiency(%) |
>14.60 |
Module Efficiency(%) |
>13.00 |
Output Tolerance(%) |
±3% |
Frame(Material,Corners,etc.) |
Aluminum |
Standard Test Conditions |
AM 1.5,1000W/m2, 25degree |
Warranty |
5 years product warranty, 20 years 80% of power,25 years lifetime |
FF(%) |
74 |
Packing |
2 pcs/carton-330 pcs/40’FCL |
