Additional features of haq Grid-Connected Solar Micro Inverter Reference Design include:
. Peak efficiency of 95%.
. Power factor of >0.95.
. Output Current THD <3%.
. Maximum power point tracking of 99.5%.
. Nighttime power consumption of <1W.
. Full Digital Control.

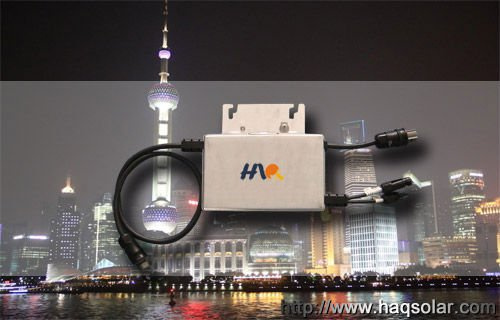

Solar Micro Inverter Reference Design
The solar power industry is evolving to meet the requirements of a changing landscape, as it moves from a cottage industry to mass production. Solar design engineers are being challenged to optimize energy harvesting, reduce installation costs, and improve system reliability and efficiency while standardizing their designs. This reference design enables them to achieve these goals through digital power conversion techniques, supported by the unique features of haq of digital-power Digital Signal Controllers (DSCs). The reference design connects to any standard solar panel and converts the panel's DC output into AC power, which can then be fed into the public power grid. In a real-world application, multiple units can be connected together to achieve the desired power output.
What is Solar Micro Inverter
A solar power system for your home is a great way for you to generate a good amount of free electricity and can help you lower or eliminate your electricity bill each month. Over the years, improvements in these systems have made them less expensive, more efficient and easier to install than older systems and the innovations still continue. One of the latest technological improvements being offered in several solar panel systems is a device called a solar micro inverter and this may prove to be a major upgrade to the standard solar panel.
Solar Micro-inverter can significantly increase the efficiency of solar power systems.
Recently, HAQ also announced a new solar collection development kit, it can be very weak ambient light into the power required for various applications. Now, developers can create self-powered solar energy-based wireless sensor network, eliminating the need to adopt a regular basis to spend time and money to replace the system battery, which is especially useful for remote areas.
|
Type |
YC200-EU |
|
Input Data(DC) |
|
|
Maximum input power(STC) |
280 |
|
MPPT Voltage Range |
25V-55V |
|
Maximum Input DC Voltage |
55V |
|
Maximum Input Current |
12A |
|
Output Data(AC) |
|
|
Maximum Output Power |
200W |
|
Maximum Output Current |
1.2A |
|
Nominal Output Voltage/Range |
230/180V~270V1 |
|
Nominal Output Frequency/Range |
50Hz/47Hz~52Hz1 |
|
Maximum units per branch |
15 |
|
Performance |
|
|
Peak inverter efficiency |
95% |
|
Euro Efficiency |
94% |
|
Nominal MPP tracking efficiency |
99% |
|
Power factor |
>0.99 |
|
Total Harmonic Distortion |
<5% |
|
Night time power consumption |
30mW |
|
Mechanical Data |
|
|
Operating temperature range |
-40ºC to+65ºC |
|
Storage temperature range |
-40ºC to+65ºC |
|
Dimensions(WxHxD) |
218mmX137mmX35mm |
|
Weight |
2.5kg |
|
Enclosure Rating |
IP65 |
|
Cooling |
Natural Convection |
|
Features&Compliance |
|
|
EMC(emissions&immunity)compliance |
EN61000-6-3,EN61000-6-1 |
|
Safety class compliance |
prEN 62109-1,IEC62116 |
|
Communication |
Powerline |
|
Warranty |
15yrs |
|
1Detailed parameter please see local grid standard |
NINGBO HAQSOLAR Co., Ltd. is a high-tech manufacturer specializing in solar panel and solar lighting products.
Our products are mainly for export, including garden lighting, lawn lighting, art and craft lighting, road lighting and solar chargers. All these products are for outdoor use. For many years, we have pursued the goal of being a leading manufacturer and marketer in the solar lighting industry. We have gained a good reputation by offering innovative designs, quality products and excellent customer services.
As an inexhaustible source of energy, solar energy has been regarded with more and more favor. Striving to serve our fellow humans with our energy-saving and environmentally friendly products, you are welcome to contact us for further information and our company details.
