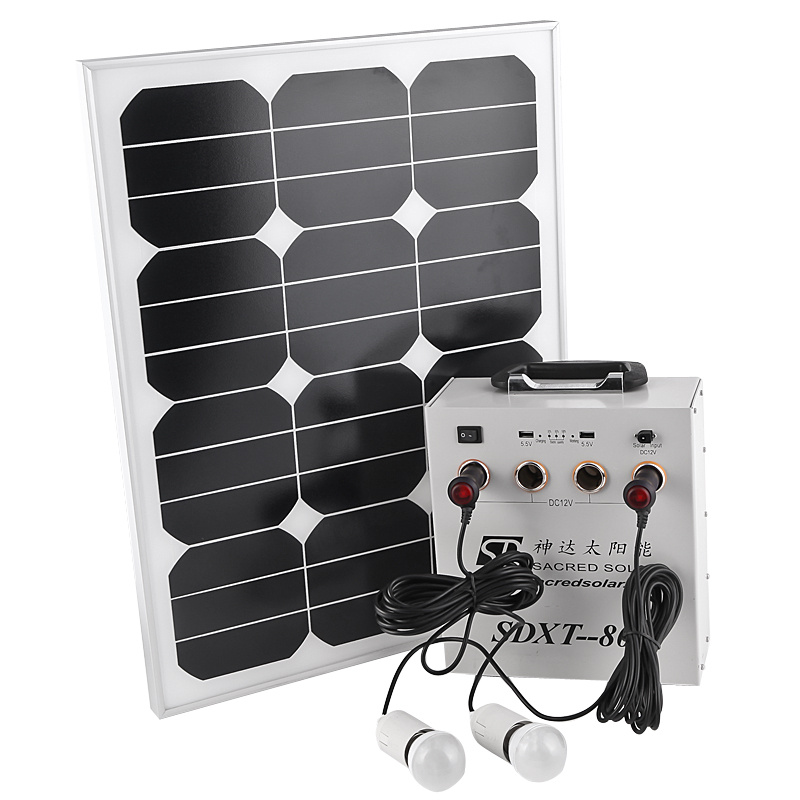

Model: SD-805I
System Function:
1. Lighting function: In the daytime, solar panels recharge the battery, then at night battery makes energy-saving light lighting
2. Charge for common digital products (including mobile phones, digital cameras, MP3, MP4, etc. )
II. System Parameter:
1. Mono high-efficiency solar panel: 30W, 18V, 5m connected cable, life for 25years
2. Maintenance-free lead-acid batteries: 18Ah, 12V, life for three years;
3. Energy-saving LED lamps: 5W, 12V, 2 PCS: Luminous flux can reach 450 lumens or more; 5m connecting cable.
4. Controller details: Rated working current: 3A; PWM charge control makes high efficiency and little heating; Back to differential discharge control without oscillation phenomenon; 3 segment LED indicate the battery electric quantity: 30%, 60%, 100%.
III. Use Manual
1. Install solar panels:
Placed solar panels in a place and in a tilt angle where sunlight directly to the front of the panel, tilt angle can be adjusted according to the local latitude, so that the solar panel can get maximum absorption of sunshine, solar. Lead-out plug of the solar panels plugs into the charging input of control box.
2. The proper use of control box:
Switching on the control box, will automatically activate all the features.
1). Power switch: Simultaneous control of charge and discharge, and only when this switch is opened to the charge and discharge; Usually do not need to switch off, as long as the turn-off energy-saving lamps line switches; If no use for a long time, the switch should be turned off to prevent battery shorting.
2). Charging and protection functions: The red LED on the panel, said charging. When the power switches opens under the sun, the red LED lights means charging. When the battery is full, LED lights automatically switch off;
3). Discharge and protection functions: The green LED on the panel shows a normal discharge, when the battery voltage is higher than the start voltage, the green LED is lighting, 12V lighting and 5.5V charge both output; When the battery voltage is lower than the protection voltage, the green LED extinguished, 12V lighting and 5.5V output of charging has no output, all need to charge to be used
4). 12V lighting and 5.5V charging function: Control panel has 4 cigarette lighter output port, output voltage 12V, current 1.5A MAX, do not overload use; Two USB output port, output voltage of 5.5V, current of 500mA MAX. Do not overload use; All of the above output comes with overload protection.
IV. Notes
1. This control metal box for indoor use products which are not water-resistant and waterproof;
2. For the first use, you need to charge for 1 day before re-use. When first get the products may occur non-working, do not worry about product quality, because the long transportation process, the battery self-discharge of the controller into the low-voltage protection, charge can go into a normal use;
3. These controllers can only use solar panels and our AC adapter when charging, can not be charged by the purchased AC adapter charger or DC power, or may damage the control system;
4. The use of this product other than lighting or other loads, please refer to the parameters using the method, do not overload, or damage the control system;
5. If necessary to replace the batteries by you, please note: Battery cable should prohibit reverse; Correct wiring method: Red line is battery positive, black to battery negative.
