Specifications
1. Copper transformer
2. Charge current adjustable
3. With inside solar charge controller optional
4. Generator compatible
5, all can be uesd in solar system, wind system
6, dc or ac priority can be controlled
7, adapt to all kinds of inductive load solar inverter

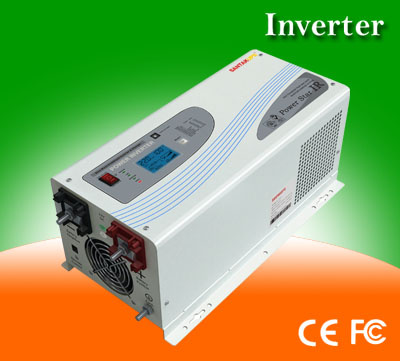

Solar inverter system1kw to 6kw compatible electric generator solar
Features
1. Pure sine-wave out put, can be used with different domestic appliance TV, Refrigerator, Fan, Air conditioner, Induction cooker, micro-wave oven etc.
2. Supperior performance from CPU control technology
3. Wide range of input voltage, accurate output, AVR function.
4. Inner-equipped protection fro over-load, shout-circuit, over-voltage, low-voltage and over-heating
5. Easy to check with inverter condition with LED indication that can be upgraded to LCD
6. Generator compatibly and external battery connection achievable.
7. Intelligent battery management with protection against over-charged and over-discharged etc.
8. Generator compatible
|
Model |
|
IR1000 |
IR2000 |
IR3000 |
IR3000 |
IR4000 |
IR5000 |
IR6000 |
|
Capacity |
W |
1000W |
2000W |
3000W |
3000W |
4000W |
5000W |
6000W |
|
Battery |
DC Voltage (Optional) |
12V |
24V or 12 |
24V |
48V |
48V |
48V |
48V |
|
Recharge current |
35+/-5A |
35+/-5A |
45+/-5A |
35+/-5A |
35+/-5A |
40+/-5A |
50+/-5A |
|
3 - stage charge |
Boost CC → Boost CV → Float |
|
Input |
Nominal Voltage |
120VAC or 230VAC |
|
voltage trip range |
90v+-4% to 140v+-4% or 184v/154v +-4% to 253v+-4% |
|
Voltage re engage range |
100v+-4% -135v+-4% or 194v/164v+-4% to 243v+-4% |
|
Max input AC voltage |
150VAC or 270VAC |
|
|
Frequency |
50Hz or 60Hz(Auto detect) |
|
|
|
|
|
|
|
|
|
|
Current |
25 Amps in maximum |
|
Efficiency |
95% |
|
Output |
Voltage |
120V or 230V AC ±5% |
|
Wave form |
Pure Sine wave |
|
Frequency |
50/60Hz |
|
voltage range |
Depends on battery type |
|
Transfer time |
≤5ms |
|
Protection |
Overload |
15 mins for 125%, 60s for 150%, 20s for over 150s |
|
Short circuit protection |
Fault after 10 secs |
|
|
|
Electric Fans |
|
Thermo -controlling |
|
Static Consumption |
|
< 10 Watts |
|
Surroundings |
Temperature, humidity |
0-50 °C ,90%, no condensing |
|
Surge rating (10s) |
3000W |
6000W |
9000W |
9000W |
8000W |
10000W |
12000W |
|
capable of starting electric moto |
1HP |
2HP |
3HP |
3HP |
4HP |
5HP |
6HP |
|
Physical |
Mount |
Horizontal wall mount |
|
Size CM (H x W x D) |
44.2 x 21.8 x 17.9 |
63.0 x 21.8 x 17.9 |
|
Carton CM (H x W x D) |
58.0x32.0x31.0 |
75.5 x32.0x31.0 |
|
N.W ( KGS) |
19 |
21 |
25 |
25 |
35 |
38 |
40 |
|
G.W (KGS) |
21 |
23 |
27 |
27 |
37 |
40 |
42 |
|
Remark |
Specification for reference , subject to change without prior notification |
|
We accept order with special specifications |
Shenzhen Must Energy Technology Co., Ltd. Established in Shenzhen in 1998, Which is leading manufacturer of power protection produtcs & service solutions including UPS, power inverters, Solar inverters, charge controllers, Batteries, AVR for more than ten years, with a strong R&D team, internal automation equipment design and manufacturing capability, as well as continuous quality improvement, Santakups Electronic Company has become the leading supplier for long backup time power solution in the new world of information technology.
We' Ve kept our defect rate well under 0.5 percent. Logo printing service is available on request.
