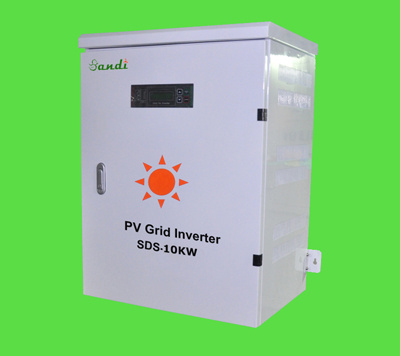

Solar Inverter (SDS-10KW)
| Price: |
Negotiable |
| Min Order: |
1 |
PV grid-connected power system includes PV modules, grid-connected inverter, meter and power switch board. The PV modules convert the solar energy to the DC power, then the grid-connected inverter the DC power to the sine wave AC power which has the same frequency and phase with the grid voltage.
The AC power feed in the grid partly and the other powers supply the local Loads.
|
Model |
SDS 10KW |
DC Input |
MPPT Voltage Range |
DC100 ~500V |
Recommend PV Array
Open Circuit Voltage |
200~400V |
|
Control System |
MPPT |
AC Output |
Output Power |
10K W |
|
Rate voltage |
AC220 |
AC380 |
|
V oltage range |
AC 185V ~264V (1 phase) |
AC 342V ~418V(3 phase) |
|
Normal Grid Frequency |
50/60Hz (Grid frequency) |
|
Phases |
1 phase 2 wire |
3 phase 4 wire |
|
Power Factor |
> 0.95 |
|
Current THD |
At rated power and in the sine wave < 5% |
|
Control System |
PWM |
|
Anti-islanding |
≤ 0.5 sec |
|
Max. Current |
45.2A |
26.7A |
|
Max. Efficiency |
97% |
|
Euro Efficiency |
96.4% |
Structure |
Protection Class |
IP20 |
|
Cooling system |
Natural cooling |
| Prod Model: |
SDS-10KW |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
