Home Generator Products Solar Inverter, CE Approved, Power Inverter for Solar&Wind Hybrid

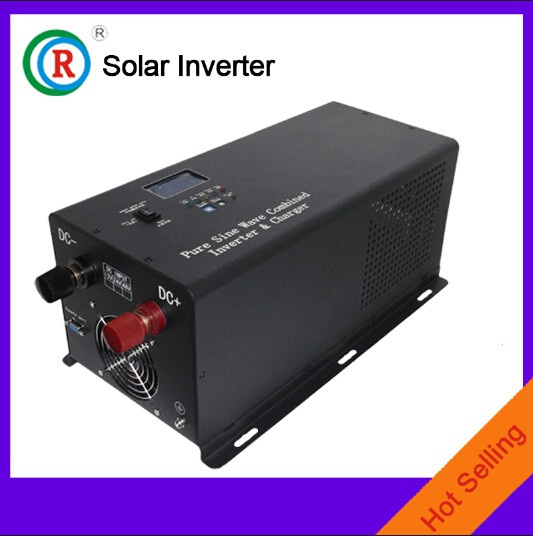

Solar Inverter, CE Approved, Power Inverter for Solar&Wind Hybrid

Solar Inverter, CE Approved, Power Inverter for Solar&Wind Hybrid
Price: US $ 30/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Solar Inverter, CE Approved, Power Inverter for Solar&Wind Hybrid


1.INV-A1 series solar inverter controller integrated machine introduced

This kind of solar inverter upgraded and promote completely according to the adavantages and disadvantages of old one,use latest power efficiency technology.With high convert efficiency,stable performance,low no load consumption,strong overload capacity,strong anti-jamming
Capability;Supply pure sine wave AC power for commercial,industry,communication,civilian,
Army.It is suitable for DC12V 24V 48V 72V Solar power system,power air condition,TV set,cash register,fridge,washing machine,computer,electrical tool,lighting,industry equipment,communication equipment.Etc.
Built-in solar controller, with short circuit, overload,unique anti-reverse protection, defence the
Recoil charging protection function at night, full charge, over-discharge automatic shutdown,
Resume and other full-featured protection measures.

2:Product Rationale(AC main supply/DC main supply, you can choose the panel)

A,Give priority to the use of AC
Step1:When commercial power input is normal,AC power take the load directly and recharge battery.

Step2:When commercial power shut off,the system will switch to give priority to the use of DC in 5ms automatically, ensuring normal working.

Step3:When commercial power is recovery, system will switch to give priority to use of AC and recharge battery.

Description:PV panels will charging the battery untill it is full, under the power generation situation,

B,Give priority to the use of DC
Recharge battery mainly from solar energy,commercial power assist recharging.

Step1:When commercial power is normal,voltage of battery higher than 11V,DC turn into AC through inverter and power load.

Step2:When the voltage of battery is lower than 11V,the system switch to commercial power automatically and recharging battery.

Step3:When the voltage of battery up to 13.5V, system switch to photovoltaic power and power the load.

Step4:When both commercial power and photovoltaic power broke down, battey will shut off with voltage lower than 10v

If commercial power is normal,AC will power load and recharge battery.

If commercial power still broke down, photovoltaic power recharge battery until voltage up to 12v and turn on with conversion mode.

Three,The advantages of product
1,Pure sine wave output;Do not harm electrical equipment, effective protection of the load;Comes with UPS conversion function, high-speed conversion, the conversion time less than 5ms;Ensure uninterrupted electricity;
2,CPU management, intelligent control, modular composition, which is more convenient for after-sale maintenance;
3,LED + LCD display, a visual display of all operating parameters of the machine, including the PV voltage and current;
4,High conversion efficiency,in half load situation the conversion efficiency is 90-95%;Commercial situation is more than 99%;Low-consumption, under the save power mode,the consumption is between 1W ~ 6W;High efficiency and energy conservation.
5,Increased electricity auxiliary charging function;Powerful charging function, three-stage intelligent charging for different types of batteries, such as sealed lead-acid batteries, open lead acid batteries, gel batteries, seven kinds of batteries,Note:Lithium batteries need to setting as customers use specifications before the delivery.
6,This series of products with a carrying capacity, superior anti-load capacity, it can take water pumps, air conditioners, refrigerators, etc.Rated power 1KW inverter can drive 1P air conditioning, rated power 2KW inverter can drive 2P air conditioning, 3KW inverter 3P can drive air conditioning
7,Using the most advanced frequency circuit design, with a new top-level electronic material, good stability, low failure rate, long life, normal use life can reach more than eight years;
Solar inverter parameters specifications
Power Specifications300W~12KW
DC Input Specifications
Rated Voltage SpecificationsDC12/24/48/72V-AC220VDC12/24/48/72V-AC110V
Operating Voltage Range(Normal Operating Battery Voltage)10V-16V  (DC12V Power Supply)
20V-32V  (DC24V Power Supply)
40V-64V  (DC48V Power Supply)
60V-96V  (DC72V Power Supply)
Low Voltage Alarm(beep alarm to alert users when battery's voltage is too low)10.5Vdc ± 0.3Vdc (12V Power Supply)
21.0Vdc ± 0.6Vdc (24V Power Supply)
42.0Vdc ± 1.2Vdc (48V Power Supply)
63.0vdc ± 1.8Vdc (72V Power Supply)
Low Voltage Shut off (shut off when battery's voltage is too low)10.0Vdc ± 0.3Vdc (12V Power Supply)
20.0Vdc ± 0.6Vdc (24V Power Supply)
40.0Vdc ± 1.2Vdc (48V Power Supply)
60.0Vdc ± 1.8Vdc (72V Power Supply)
Low Voltage Recovery (Automatic Boot when battery's voltage returns to normal)12.0Vdc ± 0.3Vdc  (12V Power Supply)
24.0Vdc ± 0.3Vdc  (24V Power Supply)
48.0Vdc ± 0.3Vdc  (48V Power Supply)
72.0Vdc ± 0.3Vdc  (72V Power Supply)
High Voltage Alarm and shut off (beep alarms and shut off when the battery's voltage is over high)16Vdc ± 0.3Vdc (12V Power Supply)
32Vdc ± 0.6Vdc (24V Power Supply)
64Vdc ± 1.2Vdc (48V Power Supply)
96Vdc ± 1.8Vdc (72V Power Supply)
High Voltage Recovery (Automatic boot when battery's voltage returns to normal)15.5Vdc ± 0.3Vdc (12V Power Supply)
31.0Vdc ± 0.6Vdc (24V Power Supply)
62.0Vdc ± 1.2Vdc (48V Power Supply)
93.0Vdc ± 1.8Vdc (72V Power Supply)
Inverter Efficiency≥90%
DC-priority type, battery low voltage conversion point when there is utility electricity  ( turn to utility electricity to supply when battery voltage is lower than these)11Vdc ± 0.3Vdc (12V Power Supply)
22Vdc ± 0.6Vdc (24V Power Supply)
44Vdc ± 1.2Vdc (48V Power Supply)
66Vdc ± 1.8Vdc (72V Power Supply)
DC-priority type, battery low voltage recovery point after turning to utility electricity to supply,  (turn to battery to supply electricity when the battery's voltage is higher than these)13.5Vdc ± 0.3Vdc (12V Power Supply)
27.0Vdc ± 0.6Vdc (24V Power Supply)
54.0Vdc ± 1.2Vdc (48V Power Supply)
81.0Vdc ± 1.8Vdc (72V Power Supply)
AC Input Specifications
Rated Voltage Specifications220VAC System110VAC System
Input Voltage WaveformPure Sine wave (utility electricity or generator)Pure Sine wave (utility electricity or generator)
Rated Input Voltage220Vac/230Vac/240Vac110Vac/120Vac/130Vac
Low Voltage Shut off180Vac±4%85Vac±4%
Low Voltage Recovery195Vac ±4%90Vac ±4%
High Voltage Shut off260Vac±4%135Vac±4%
High Voltage Recovery255Vac±4%130Vac±4%
Charging rules of  Utility ElectricityThree Stages:
Constant current charging (constant current stage)→constant voltage(constant voltage stage)→float (constant voltage stage)
Utility Electricity Supply Efficiency≥98%
Conversion Time (AC to DC)<4ms
Conversion Time (DC to AC)<8ms
AC output specifications
Rated output voltage (V)220Vac/230Vac/240Vac110Vac/120Vac/130Vac
OutputVoltage Range±10% rms
Rated output frequency(Hz)50Hz ± 0.3Hz/60Hz ± 0.3Hz(selectable)
Power Factor1.0
Output Wave formPure sine wave
Waveform distortion rate( THD )≤3% ( Linear load )
Dynamic Response( 0~100% )5%
Peak Factor ( CF )3:1
Overload Protection
(SMPS load)
(110% after 15 minutes
 (125% after 1 minute
      (Load>150%) ±10% :disconnecting the output voltage after 20 seconds
Other notes
Continuous operation timeCan Continuous operation
Comsuption when Normal Boot ,no-load ≤Rated Power×2.5%
Comsuption of energy-saving mode≤6W
Safety CertificationCE(EN62040-1)     EMC :EN62040-2, C2
Communication InterfaceRS232 / (Customizable)
CoolingTemperature-controlled variable speed cooling-fan (Ventilation condition)
Noise( dB\1 meter )<60dB
operate temperature ( ºC)-10~+45
Storage Temperature( ºC)-20~+55
Using Environment Humidity0-95% relative humidity(No condensation)
Altitude( m ) ≤5000( More than 1000 m, derating )
Display WayLED lights +LCD screen
Alarm WayBuzzer sounds alarm
Protection FunctionsLow voltage protection, high voltage protection, high temperature protection, short circuit protection, leakage protection, overcurrent protection, overload protection, low voltage  recovery, high voltage recovery, intelligent temperature control, solid barrier alarm
Protection LevelIP20 / Customizable
Parameter Specifications of Solar Charge Controller
Specifications12V/10A12V/20A12V/30A12V/40A12V/50A12V/80A12V/100A
Rated Power (W)1202403604806009601200
Rated Charging Current(A)102030405080100
Rated DC Voltage (V)12
PV Highest Voltage(V)<25
PV Maximum Power (W)120240360480600480×2 ways600×2 ways
Battery Overcharge Protection Voltage(V)14.3
Battery Overcharge Recovery Voltage(V)13.7
Battery Constant Voltage charging Voltage(V)13.5
Battery Over-discharging alarm Voltage(V)10
Protection FunctionNight: anti-reverse charging, solar reversed
Control ModePWM or MPPT
Other NotesPlease refer to solar controller manual
Specifications24V/10A24V/20A24V/30A24V/40A24V/50A24V/60A24V/100A
Rated Power(W)240480720960120014402400
Rated Charging Current(A)102030405060100
Rated DC Voltage(V)24
PV Highest Voltage(V)<50
PV Maximum Power (W)240480720960120014401200×2 ways
Battery Overcharge Protection Voltage(V)28.6
Battery Overcharge Recovery Voltage(V)27.4
Battery Constant Voltage charging Voltage(V)27.0
Battery Over-discharging alarm Voltage(V)20
Protection FunctionNight: anti-reverse charging, solar reversed
Control ModePWM or MPPT
Other NotesPlease refer to  solar controller manual
Specifications48V/20A48V/30A48V/40A48V/50A48V/60A48V/80A48V/100A
Rated Power(W)960144019202400288038404800
Rated Charging Current(A)203040506080100
Rated DC Voltage(V)48
PV Highest Voltage(V)<100
PV Maximum Power (W)9601440192024001440×2 ways1920×2 ways2400×2 ways
Battery Overcharge Protection Voltage(V)28.657.2
Battery Overcharge Recovery Voltage(V)54.8
Battery Constant Voltage charging Voltage(V)54.0
Battery Over-discharging alarm Voltage(V)40
Protection FunctionNight: anti-reverse charging, solar reversed
Control ModePWM or MPPT
Other NotesPlease refer to  solar controller manual


Prod Model: INV-A1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 1 Year
Service: OEM/ODM Welcome
Package: Export Carton Packing
MOQ: 1set
Delivery Time: 7days
Brandname: Oro
System: Off-Grid system
ORO-power was established in 2009 to provide affordable. Clean. Modern and sustainable renewable energy product. It aims to improve people living standards and to protect the environment. We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.

We started to do power business since 1990 with specializing in OEM and OEM production. Now we have our own brand and domestic, foreign sale centre. Our team is with advanced idea and good performance. So the product can fit for a kind of standards and national certification requirements for advanced power product. There are many different kinds of product. The product has sold to over 30 provinces in China. It involves in lectric power, fire protection, telecommunications, airports, highways, subways, radio and television, railways, the force, finance, hospitals, tunnels, construction, petrochemical and other industries.

The product has pass the ISO9001: 2000, CE, SGS and modern enterprise management standards. We have set up the specialized pre-sale, sale, after-sale technical support and services. The perfect solution will meet with customer's specific requirements after fully communication with customers. With strong technical force and advanced production management concept, we can timely provide customer with thoughtful services and creat well-known top brand in the industry.
