Solar Home Lighting System1000W-5000W (STS1000-5000)
Suntotal Group Limited can design Solar Home Lighting System1000W-5000W according to your specific requirements, which can provide power for commercial, industrial, and residential purposes.

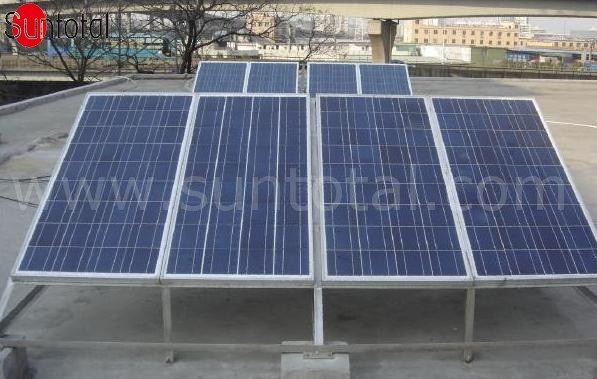

Solar Panel:
1. CE & Roths;
2. 90% efficiency in 10 years, 80% in 20 year, >17% conversation rate;
3. 25 years life span;
3. 2400PA/m2 impact resistance.
Inverter:
1. Pure sine wave;
2. High convert efficiency with high frequency conversion and PWM technology;
3. Over-voltage and low-voltage protection for battery;
4. Over-loading, short circuit, overvoltage and high temperature protection for output;
5. Wrong connection protect for solar panels anode and cathode;
6. Charge and discharge at the same time. Stable output voltage and frequency.
Battery:
1. Colloid Battery;
2. Stable Battery;
3. 7 year spend life.
|
Configuration |
|
|
Description |
Specification |
QTY |
Price(USD) |
Remark |
|
Solar Panel |
250w, 90% efficiency in 10 years, 80% in 20 year, 25 years life span, 2400pa/m2 impact resistance. |
250w |
8 |
|
|
|
Inverter |
High quality pure sine wave inverter, controller and inverter all-in-one. |
96V/5000w |
1 |
|
|
|
Solar Batteries |
Colloid battery, 6 years life span |
12V 120Ah |
8 |
|
|
|
Bracket |
Iron |
|
|
|
|
|
Cable |
|
|
|
|
|
|
Technic Service |
|
|
Average Capacity of System |
10.24kw |
|
Max Consumption of System |
7.17kw |
|
Full-charging Time of Battery |
2.6 days |
|
Warranty |
3 years |
|
2000wp Home Solar Power System |
|
Item |
Model |
Power(w) |
Quantity |
Load Power(w) |
Working Hour/day(h) |
Consumption/day(wh) |
|
Light1 |
LED Lamp |
11 |
3 |
33 |
6 |
198 |
|
Light2 |
LED Lamp |
8 |
2 |
16 |
6 |
96 |
|
Computer |
Led Screen |
100 |
1 |
100 |
2 |
200 |
|
Printer |
Jet |
30 |
1 |
30 |
1 |
30 |
|
Color TV Set |
21' |
75 |
1 |
75 |
5 |
375 |
|
Refrigirator |
150L |
100 |
1 |
100 |
24 |
2400 |
|
Washing Machine |
|
300 |
1 |
300 |
1 |
300 |
|
Micro-wave Oven |
|
1000 |
1 |
1000 |
0.25 |
250 |
|
Air-condition 1P |
1 P |
1100 |
1 |
1100 |
3 |
3300 |
|
Sum |
|
|
|
2754 |
|
7149 |
