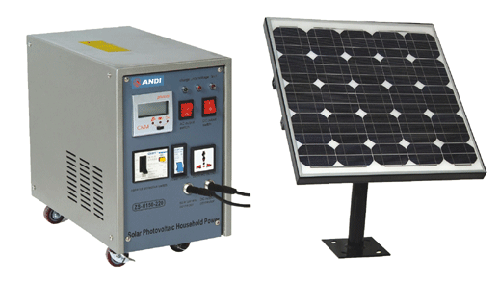

Technical parameters AD-H150L AD-H150H
Output voltage AC110V/AC220V AC110V/AC220V
Output power 150W 150W
Output frequency 50±3Hz 50±3Hz
The peak value of solar cell output power 50W 100W
The peak value of solar cell output voltage 17.5V 17.5V
The peak value of solar cell output current 2.86A 5.72A
Battery capacity 12V75AH 12V120AH
Best output power everyday 213WH 426WH
Case dimension 300mm*530mm*500mm 300mm*530mm*500mm
Solar dimension 710mm*670mm 710mm*670mm
H&D (China) HOLDINGS Co., Ltd, is a high-tech enterprise engaged in the research and development and applilication of solar energy resources with a combination of various solar energy technology and professional staff. The company uses advanced international machine, strict quality control process and complete production process and produces all kinds of models and specification of mono-crystalline silicon and polycrystalline silicon solar energy components and its quality conforms to the standard completely. The company also use core material solar energy components from own production to produce other particular application products and projects.
Certificate: ISO 9001, TUV, CE, IEC61730, CQC, SGS
