Solar Generator System 1000W
SYK-RU-1000
Brief Introduction:

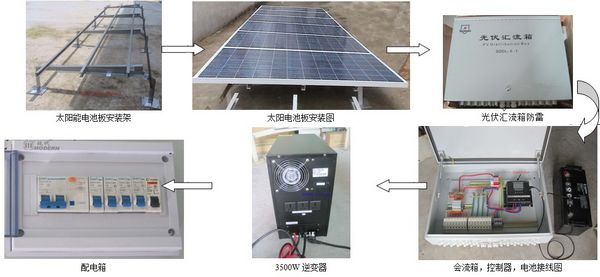

This is one individual household solar generating system. The inverter, controller, lightening protection device, junction, solar battery integrated as one unit named controlling box. And also have the solar panel supporting frame for option, if taking the transport cost into consideration this also can be made in local. It's so much easy in installation and operation for all the system. The system including 250w Solar panle 4PCS, one controlling box. 1-4PCS Lead-acid batteries (Quantity of the battery for unser's choice). In the daytime, the batteries are fully recharged with the power produced with the solar panels. And the inverter converts the DC power 12v/24v to AC power 220v/50Hz which can be used on all the home applicances. Morever the batteries also can be fully recharged with electricity if needed.
1. PV Modules 250W(Poly)*4PCS/1000W (2PCS/PKG)
Voc: 43.6 Isc: 31.4 Vmp: 35 Imp: 28.6
Total G. W: 116KGS Total N. W: 104KGS Volume: 0.63CBM
Cell size: 156*156 PCS of cell: 72 Connection: 6*12
Module size(MM): 1950*995*50 Packing size(CM): 200*105*15
2. Controlling Box(inverter, controller, junction and lightening device )
Inverter1000W/24V*1PC&Controller 45A/24V*1PC
External Dimensions580X600X200(mm) Out Package: 585*605*205(mm)
G. W: 29.5KGS/PC N. W: 27.5KGS/PC Volume: 0.07
3. Controlling Box And Battery Box integrated as one unit
Battery Cabinet with 4PCS of 200AH/12V batteries
1. Battery Cabinet: External Dimensions580X600X650(mm)
Out Package: 585*605*655(mm) G. W: 23.5KGS/PC N. W: 21.5KGS/PC
2. AGM Lead-Acid Storage Battery 200AH/12V*4PCS
G. W: 259.2KGS N. W: 251.2KGS /(4PCS)
Total G. W: 282.7KGS Total Volume: 0.48CBM
Sumyok Solar Power Technology Co., Ltd. located in GUANGZHOU city Guangdong province is a high and new-tech enterprise mainly engaged in R&D, production, sales and service of photovoltaic cells, photovoltaic modules and photovoltaic power generation system.
Since foundation in 2006 years, Sumyok has been engaged in developing to meet the various demands for the solar products and solutions from various markets all over the world. Our devotion in introducing new inventions and new technology into the marketplace and our commitment to our customers and continued investment in facilities and equipment has allowed Sumyok to develop into a market leader in the green energy field. With the advanced machine and exquisite solar energy technology, the company professionally manufactures high quality products under strict quality control system.
Our products include:
(1) Solar cells in multifarious dimensions
(2) Photovoltaic Panel: 5W-280W mono-crystalline and poly-crystalline silicon solar modules
(3) Solar On-grid Power Station
(4) Solar Off-grid Independent Power Generating System
(5) Solar Off-grid Street lamp system
(6) Solar Lamps, Solar Chargers etc.
Which are widely sold into both domestic and overseas markets. More than 80% sold into Africa, Europe and America and have gained high reputation. For global market, we are an exporter and also offer OEM, ODM, OBM service and supply sources.
Guangzhou is an international commercial center which is characterized with diversification and internationalization which providing us with big opportunities as well as big challenges in doing business.
Volume quantities available for immediate shipment with best quality and best price is our solemnly commitment.
