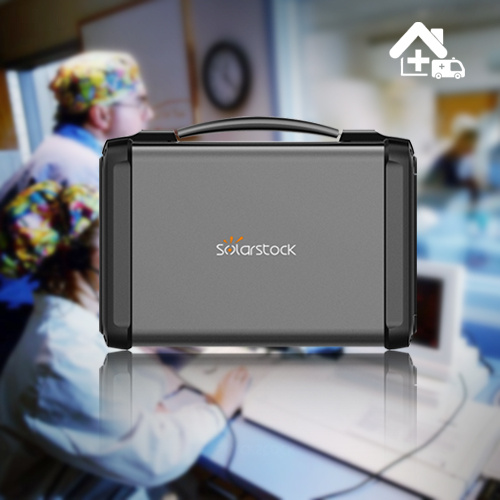

Solar Electricity Generator 400W Design concept
Solar stock's solar power system can be applied to the villa, household, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, hills, villages, island, highway and any regions to generate electricity, it can charge cell phones, notebook computers, lights, digital camera, fans, TV set, electric tools, music CDS, DVDS, etc. It is ideal equipment for army, fire protection, scientific, industrial and mining, tourism, grazing field and other outdoor activities long time used. It also has the function of starting the car engine.
Specifications:
| Model No. | SS-PPS400W |
| Battery | Polymer lithium-ion battery 12V 50Ah |
| Car socket charging | Voltage: 13.5V-18V Current: 5A |
| Solar charging | Voltage: 18V Current: 10A |
| AC adaptor charging | Voltage: 13.5V Current: 6A |
| AC output | Max. output power: 400W |
| Output voltage: AC110~240V / 50~60Hz |
| Output waveform: Pure sine wave |
| DC12V output | Output voltage: DC12V |
| Max. output current: 8A |
| USB DC5V output | Output voltage: DC5V |
| Max. output current: 3A |
| Jump starter | 12V battery car engine start |
| Protection | Overcurrent protection;
Under-voltage protection;
Overvoltage protection;
Overload protection;
Short-circuit protection;
Overheating protection. |
| Size | 385mm*280mm*150mm (15.16"*11"*5.91") |
| Net Weight | 9KG ( 20lbs ) |
BMS ( Battery Management System)
1. Overcurrent Protection: when the charging current is >10A, the BMS would automatically cut off the charging process, indicator light turns red.
2. Under-voltage Protection: when the battery voltage is <9.2V, the BMS would automatically cut off the powering process, indicator light turns red. You need to turn off the master On/Off switch, then turn on the switch to restart the process.
3. Overvoltage Protection: when the battery voltage is >12.5V, the BMS would automatically cut off all the charging process.
4. Overload protection: when the output load power or startup power is too large, the BMS would automatically cut off, indicator light turns red. You need to turn off the master On/Off switch, then turn on the switch to restart the process.
5. Short-circuit protection: when the AC / DC outputs meet short circuit, the BMS would automatically cut off, indicator light turns red. You need to turn off the master On/Off switch, then turn on the switch to restart the process.
6. Overheating protection: when the product temperature > 140ºF (60ºC), the BMS would automatically cut off, indicator light turns red. You need to wait for a while for air cooling down the temperature, turn off the master On/Off switch, then turn on the switch to restart the process.
Guangdong Solarstock New Energy Technology Co., Ltd was established in February of 2012 with a 20 million CNY registered fund. The company is located in the north district of Nanshan Science and Technology park of Shenzhen, which has gathered many creative scientific talents and strives to be one of the most innovative new energy high-tech enterprises that provides photovoltaic power station technology and develop storage products with lithium battery.
The company continuously invests and promotes scientific research; It has developed a series of lithium battery energy storage and solar power generator products like LK and pH series, which have different configurations and performance. The product's performance and technical standards have reached the international advanced level, with FCC, CE, UL, RoHS and other certifications, and has also obtained many patents.
The company innovate operation ideas and explores markets. There are branches in Hong Kong and the USA. Our products are sold in South Africa, European, Australia, the Middle East, South East Asia and Africa-more than 40 countries and regions. They are mainly used in emergency power supply markets; Widely used in the outdoors; Travel and exploration; Disaster, military, medical and automotive accessories and other fields.
Solarstock will continue to innovate and compete globally. We expect to install 10, 000 distributed photovoltaic power stations on roof and export 70, 000 units of portable solar generator kits by 2020.
Guangdong Solarstock New Energy Technology Co., Ltd. is absorbed in lithium battery energy storage and solar power generator manufacturing for years. We have our own R&D department which has professional working experience in solar system projects. And product's performance and technology has reached international advanced level, with FCC, CE, UL, RoHS and others certification, and also won many patents, such as: No. 4091934 & No. 4174443 & No. 4265306.
Our products are sold in more than 40 countries such as South Africa, European, Australia, Middle East, etc. Solarstock will keep innovation and design more and more green energy solar products in future.
