Data sheet module 225 Watts
Module type 225-MONO
Cell characteristics
Number of cells 60
Cell type Mono
Cell dimensions 156*156mm
Module characteristics (STC) Standard Test Conditions: 1000W/m2, 250C, AM1.5)
Peak power (Pmpp) 225Wp
Peak power voltage (Vmpp) 29.5 V
Peak power current (Impp) 7.63 A
Open circuit voltage (Voc) 36.5 V
Short circuit current (Isc) 8.42 A
Solar cell efficiency 16.20%
Maximum system voltage 1000 V
Power tolerance +/- 5%
Temperature coefficients
Power -0.47%/
Open circuit voltage (Voc) -0.38%/
Short circuit current (Isc) +0.10%/
Physical characteristics
Dimensions (mm) 990× 1640× 50 mm
Weight 20 kg
Packing configuration 21 PCS per carton
Frame Anodized aluminium
Output terminal Lead wire with waterproof connector
Peak power warranty 25years≥ 80% of minimal guaranteed power
Temperature ratings -40 to +90 operating temperature
-40 to +90 storage temperature

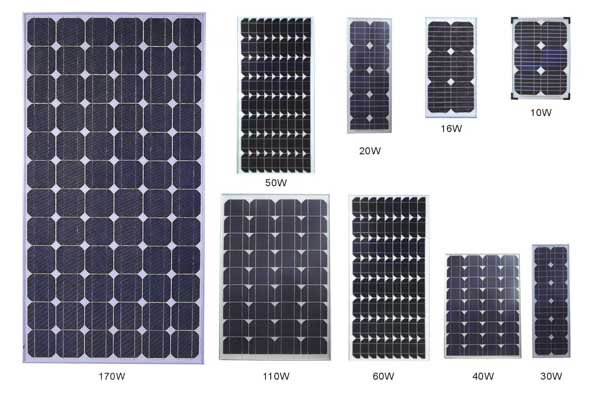

Wakin Solar is a manufacturer of solar panels. Wakin Solar water heater offers pre-packaged solar PV system for both do-it-yourself customer and professional installer. Each system includes the primary components required when installing a solar PV power system. It is our longing goal to keep our products low-cost to ensure that we are making renewable energy products more affordable for our customers. Any question, please do not hesitate to contact me.
