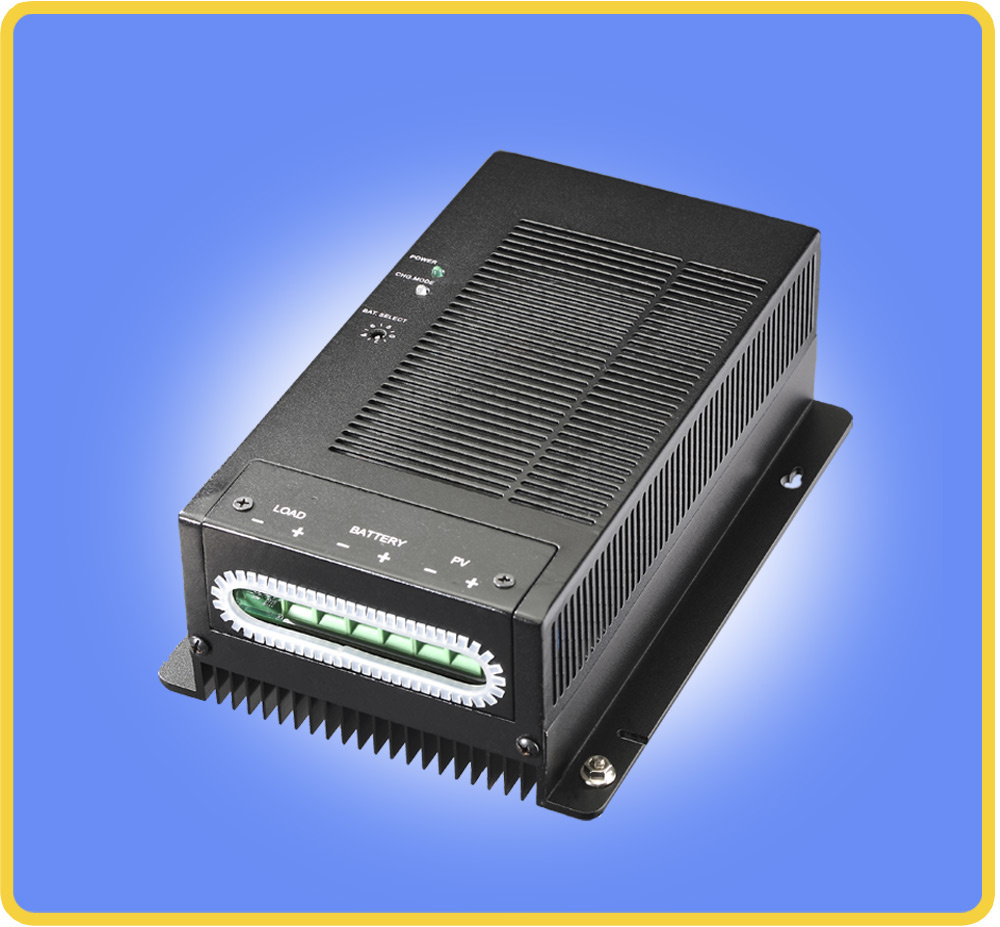

12V/24V Solar Charge Controller
Features
High converting efficiency higher than 99.5% for minimizing energy loss
1 Build-in MPPT tracker for optimizing the power transformation
2 Reversed current protection for preventing equipment damage
3 Automatic battery temperature compensation for long-term reliability
4 Capable of selecting different charging mode for various type of batteries
5 Capable of connecting additional DC load for wider applications
6 Three stage charge control system (bulk, absorption, and float mode) with temperature compensation
7 LED indicators display charge status in real time
8 Pulse Width Modulation (PWM) topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced battery performance
|
MODEL |
SMS-40A |
|
Rated Voltage |
12/24 VDC |
|
Power |
40A |
|
Load current |
15A, can up to 40A |
|
Input voltage range |
15-55VDC |
|
Max. PV open circuit array voltage |
55VDC |
|
Typical idle consumption |
At idle < 10mA |
|
Overload protection (DC load) |
2.0*Inom> 5s 1.5*Inom > 20s 1.25*Inom temperature controlled |
|
Bulk charge |
14.6V(default) |
29.2V(default) |
|
Floating charge |
13.4V(default) |
26.8V(default) |
|
Equalization charge |
14.0V(default) |
28.0V(default) |
|
Over charge disconnection |
14.8V |
29.6V |
|
Over charge recovery |
13.6V |
27.2V |
|
Over discharge disconnection |
10.8 V (default) |
21.6V(default) |
|
Over discharge reconnection |
12.3V |
24.6V |
|
Temperature compensation |
-13.2mV/degree |
-26.4mV/degree |
|
Lead acid battery settings |
Adjustable |
|
NiCad battery settings |
Adjustable |
|
Load control mode |
1. Low Voltage Reconnect (LVR): Adjustable 2. Low Voltage Disconnect (LVD): Automatic disconnection 3. Reconnection: Includes warning flash before disconnect and reconnection |
|
Low voltage reconnect |
12.0-14.0 Vdc |
24.0-28.0 Vdc |
|
Low voltage disconnect |
10.5-12.5 Vdc |
21.0-25.0 Vdc |
|
Ambient temperature |
0-40 degree(full load) 40 to 60 degree (de-rating) |
|
Altitude |
Operating 5000 m, Non-Operating 16000 m |
|
Protection class |
IP21 |
|
Battery temperature sensor |
BTS - optional remote battery temperature sensor for increased charging precision |
|
Terminal size (fine/single wire) |
#8 AWG |
