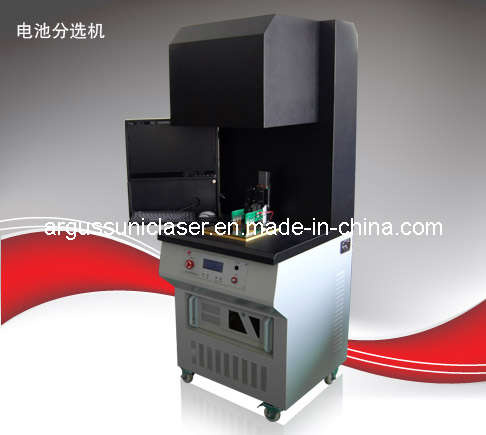

Equipment Performance
The equipment is specially use in the filtration of solar energy mono-crystalline silicon and the poly-crystalline silicon cell pieces.
Through stimulates the solar spectrum lamp-house, carries on the testing and surveys to the cell module related electrical parameter, according to the measurement result classifies the cell piece.
It has unique apparatus of modifying, to input the compensate parameter, it will carries on automatically/manual temperature compensation and compensate with the light intensity, and auto matically measures and modifies the temperature.
Based on the windows operation surface, and humanized-design testing software, it records and displays test curve(I-V curve, P curve)and the test parameter(Voc, Isc, Pm, Im, FF, EFF), the test of sequence number is automatically produced and preserved to the assigned folder.
|
Model specification |
SCT-B |
|
simulation photosource |
pulse xeon lamp |
|
Test area |
300mm*300mm |
|
The range of luminous intensity |
70-120mW/ cm2 |
|
Data acquisition speed |
2ms |
|
Data acquisition quantity |
8000data point |
|
luminous intensity irreqularity |
3% |
|
Test system |
Pcmachine, A/D control card, Display1-v curve and P curve |
|
Test parameter |
Voc, Isc Pm Im Vm FF EFF |
Wuhan Sunic Photoelectricity Equipment Manufacture Co., Ltd., was established in 1997, and has been asserted as a premium high-tech enterprise by Wuhan government. After 12 years of development, the group has become the nations largest enterprise in the laser technology field, We have been granted self-operation export and import rights enabling great opportunities in the support of international and domestic trade. Here at Sunic Photoelectricity we specialize only in the development, manufacture and service of quality laser technology.
Product Introduction: Sunic Photoelectricity has been bringing forth new innovations in laser technology constantly and now have more than 30 various laser machines for a variety on industries such as solar equipment, laser scribing machine, laser marking, pneumatic marking machine, laser cutting machine, laser engraving machine and so on. Our laser experience has enabled us to greatly revolutionize industries in the fields of solar energy, electron, leather clothing, advertising, craftwork, automobile motorcycle, hardware, tools, measuring and cutting tool, hot-water heating, cleaners and polishes, food beverage and medicine, medical treatment, seal, printing, engraving and packing industry, upholster etc.
Service Network: Sales of laser scribing machines has exceeded 85% of the local market. It is the appointed products of the foreign-aid project of national Commission of Foreign Trade and Economic Cooperation. Sunic Photoelectricity has more than 40 international distributors as well as offices all over mainland China. Currently we have branches in Dongguan, Guangdong Province. Our product is also exported to U. S. A, Japan, South Korea, South Africa and Southeast Asia, Taiwan, Hong Kong, Australia etc. This is evidence of the pride we take in our products and services as we move forward into future advancements in laser technology.
