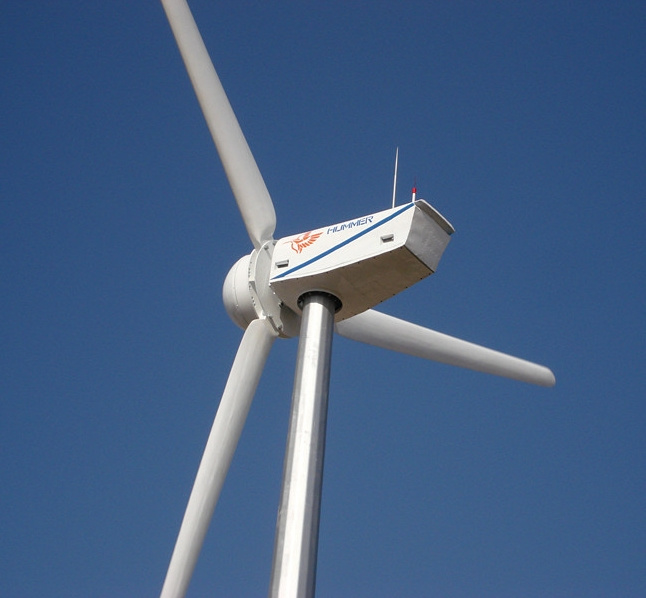

Small Wind Turbine Wind Power Generator 50kw 60kw

Small Wind Turbine Wind Power Generator 50kw 60kw
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Features of 50kW Wind Turbine Generator


1. SCF Supercritical generator

Hummer's 50KW wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 20% to 30% of the traditional one, and the production efficiency is 10% to 30% higher. This ensures that the generator functions perfectly in small wind condition.

2. High quality

Hummer 50kW wind turbine adopts the NSK bearings which are produced by the renowned bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. As well as enabling smooth and quiet rotation, they also perform an important function by taking on the motor's load.

3. Smart control

Hummer 50kW wind turbine's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.

4. Low noise

The design of the rotor blade of Hummer 50kW wind turbine absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.

5. Triple braking protection

Hummer 50kW wind turbine generally adopts the yawing system and the electromagnetic braking system to regulate the rotation of the wind turbine. Besides, customer can order the hydraulic braking system as well as a third protection. It is easy and convenient to shut down the whole system both manually and automatically.

Model No.H16.5-50KW
Configuration3 Blades, Horizontal axis, Upwind
Rotor Diameter16.5m
 Direction of RotationClockwise looking upwind
Blade MaterialFiberglass reinforced composite
Rated Power50kW @ 11m/s
Maximum Output Power50kW
Battery Bank Voltage400 Vdc
System Output Voltage380 Vac three phase
Cut-in Wind Speed3m/s
Rated rotating rate70 r/min
Working Wind Speed3-25 m/s
Survival Wind Speed50 m/s
AlternatorPermanent magnet alternator, SCF technology
Alternator Weight1200kg
Generator Efficiency>0.92
Energy monitoring & User controlSiemens PLC controller with touch screen
GearboxNone, Direct drive with front generator design
Over Speed RegulationAuto Yawing & Hydraulic Braking & Pitch control
Shutting Down MethodManual & Automatic electromagnetism Braking
 Warranty 2 years

Prod Model: H16.5-50kW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rotor Blade Material: Fiber Glass
Cut-in Wind Speed: 3m/S
Working Wind Speed: 3m/S- 25m/S
Over Speed Control: Hydraulic Brake, Yaw, Pitch Control
Survival Wind Speed: 50m/S
Generator Type: Permanent Magnet Alternator
Generator Efficiency: >0.92
Tower: 18m Freestanding Tower
Inverter: CE Certified
Control System: Siemens PLC Controller
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Phase: Three Phase
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
