Application area of Wind Turbine Generator (H2.7-500W):

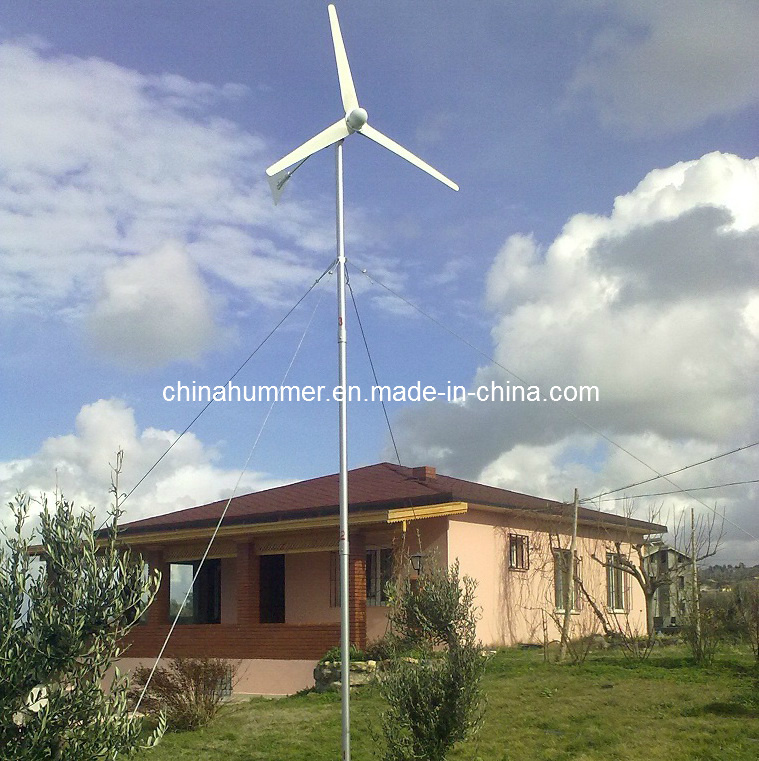

1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;
Structure and component parts:
1. Generator Part
It is composed of the patented SCF generator, the nose cone, and the protection cover. Hummer adopts the state-of-the-art SCF supercritcial generator, which is installed in the hub, easy to radiate heat and reduce wind resistance. Made of high-efficiency magnetic materials, special copper alloy, high-strenghth stainless steel and aeronautic aluminum alloys, which is extremely light in weight and small in size, but with higer power producing efficicency.
2. SKF Bearings
Two SKF bearings ensure the reliability the longevity of our generator. Wide temperature ranges: Operation in the high temperature (150-350º C). Long life span, reach up to 60000-100000 hours. User may not change the bearing during the wind turbine using. It can greatly reduce the maintenance costs.
3. Flange & Blades
The flange is made of fine steel, used to fix the blades to the rotor. The blades are made of glass reinforced plastic, efficiently turn the wind energy into the mechanical energy. Every set of the three blades has passed the strict balance test before the shipping. It is important to fix the blades together which belongs to one set to the flange and never mix them up with other blades which belongs to another wind turbine.
4. Furling Mechanism
The mechanism is composed of the 360 degree rotation yaw shaft, the tail rod and the rudder blade, which are made of the manganese stell and aluminum alloy. It combines the high strength and the lightness and is able to react to the gusts rapidly.
5. Multi-function "3 in 1" Inverter Controller
Hummer "3 in 1" inverter as a multi-function controller is made especially for 500W and 1000W systems. It combines the functions such as rectifying AC into DC, charging the batteries, inverting DC to AC to power the electrical instruments, and dumping the extra energy which may overload and burn the system, thus protecting the whole system.
6. Off-grid Inverter & On-grid Inverter
Hummer off-grid inverter adopts SPWM (Sinusoidal Pulse Width Modulation) technology, is able to invert DC with higer efficiency into AC with stable frequency and voltage, filters the noise as well. It is used in the off-grid power system.
Hummer on-grid inverter adopts MPPT (Maximum Power Point Tracking) technology and IGBT (Insulated Gate Bipolar Transistor), is able to invert DC with a high power producing capacity and a wider AC voltage output range. It connects to the public grid and there is no need for any power storage device.
7. Rectifier/Dump Load Controller & Dump Load Box
The controller controls the process of which the alternative current produced by wind turbine into direct current and eventually charges the battery bank with DC. It also controls the switching on and off of the dump load to protect the system against the risk of being overloaded with too much power.
Metal box design of the dump load radiates the heat of the resistance inside quickly via the air convection. So there is no need for an extra fan.
Company strong strength:
1) High Technology--Won gold award of 37th Eureka World Invention Exposition in Brussels;
2) High Quality--CE, BV, ISO Certificate;
3) Hight Service--Long time warranty with Unique Service department.
Currently product range:
1) 500W-100kW wind turbine Off-grid /Grid-tied;
2) 400W-600W Wind-Solar LED street light and traffic light;
3) Wind-Solar hybrid generating system.
4) Wind-Solar-Diesel hybrid generating system.
Model No. |
H2.7-500W |
Configuration |
3 Blades, Horizontal axis, Upwind |
Rotor Diameter |
2.7m |
Direction of Rotation |
Clockwise looking upwind |
Blade Material |
Fiberglass reinforced composite |
Rated Power |
500W @ 7m/s |
Maximum Output Power |
1000W |
Battery Bank Voltage |
24 Vdc |
System Output Voltage |
110/220 Vac single phase |
Cut-in Wind Speed |
3 m/s |
Working Wind Speed |
3-25 m/s |
Survival Wind Speed |
50 m/s |
Alternator |
Permanent magnet alternator, SCF technology |
Alternator Weight |
6.5kg |
Generator Efficiency |
>0.78 |
Gearbox |
None, Direct drive with front generator design |
Over Speed Regulation |
Auto Yawing |
Shutting Down Method |
Manual & Automatic electromagnetism Braking |
Warranty |
2 years for generator |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
