MAX Series Small Wind turbine Characteristics
Sunning focus on the research and development of small wind turbines from 300W-1600W and hybrid generating system for many years,with superior quality and pretty competitive price,so far,we offer wind & solar system mainly for CCTV power supply,street lighting projects and remote family power supply.Sunning design and supply complete off-grid solar & wind power systems for a wide variety of applications :
MAX 400W Small Wind Turbine Technical Specifications |
Rated output power | 400W |
Maximum outpower | 500W |
Start-up wind speed | 1.5M/S |
Cut-in wind speed | 2.0M/S |
Rated voltage | 24V |
Rated RPM | 650 |
Rated wind speed | 12M/S |
Rated current | 15A |
Rotor diameter | 1.7M |
Body | Cast aluminum |
Blades | 5 PC Nylon Fiber |
Overspeed Protection | The controller of Electromagnetic braking magnetic damping and blades stall |
Working temperature | -40°c~120°c |
Survival Wind Speed | 35 m/s |
Type of generator | Brushless three phase permanent magnet generator |
Connection | Flange connection |
Controller | PWM controller |
Certificate | ISO9001:2008 CE RoHs |
Warranty | 3 year limited warranty |
Low start-up wind speed
Low wind speed serie small wind turbine for home generate more than 60% effective power than the same rotor diameter wind generator annually.
High-efficient Generator
Three-phase permanent magnet synchronous wind generator, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class H insulation.
Innovative Noise Reduction Technology
Start and product electricity at the 1.5m/s, noise only at 40db at 13m/s/.
Perfect Wind Wheel System
The wind turbine wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably...
Unique Design Of The Rudder
Wind Generator rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation.

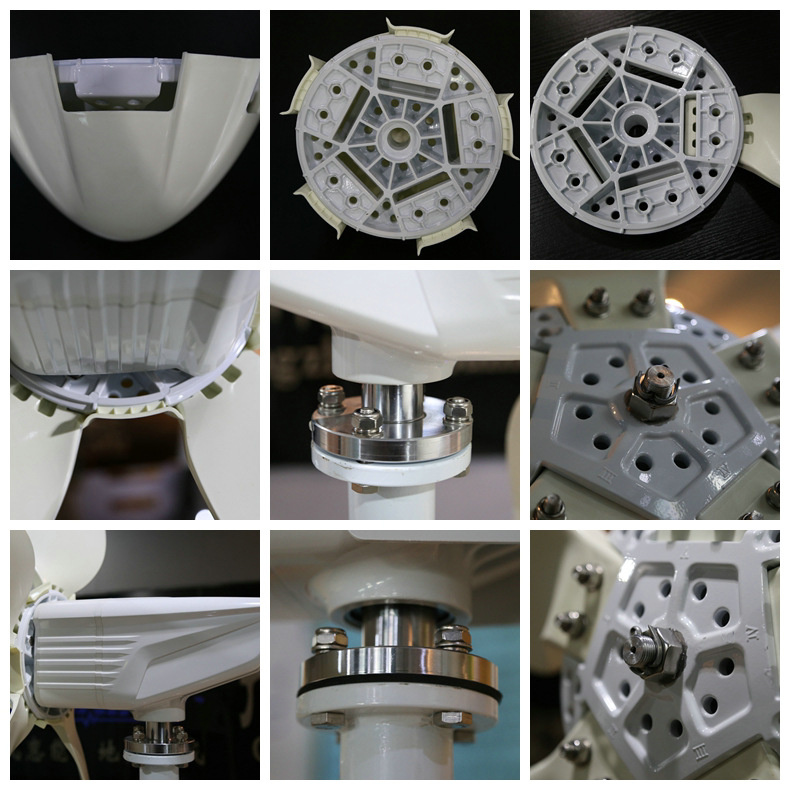

The Small wind turbine 400w detail:

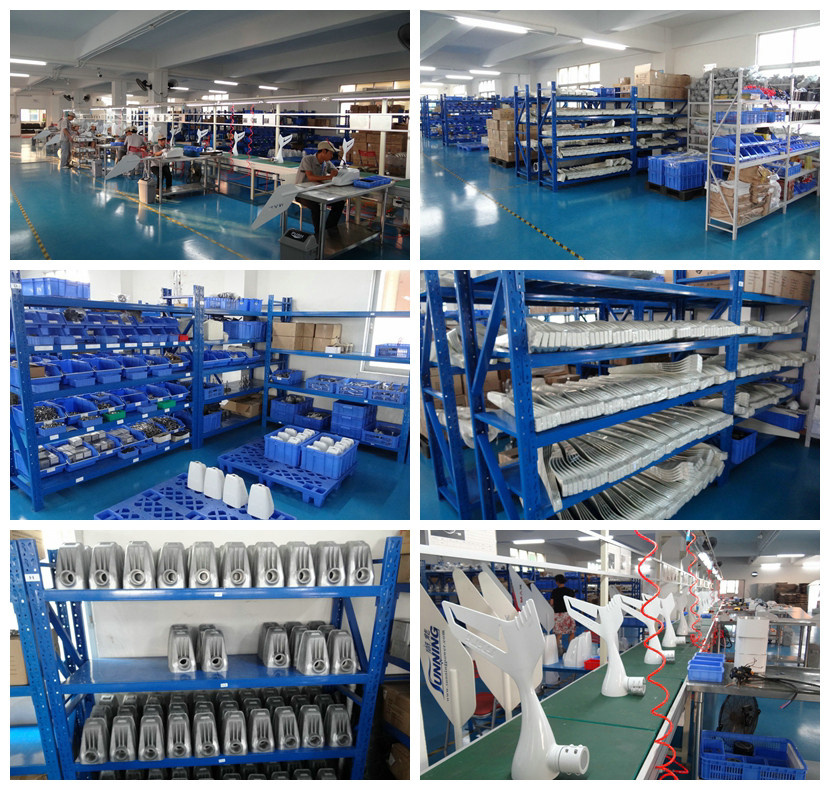

Our factory
About our team
Our wind turbine is widely use at the area of street light system, off grid CCTV system, outdoor advertisement, small house power etc.
If you need more detail, please contact us at once
