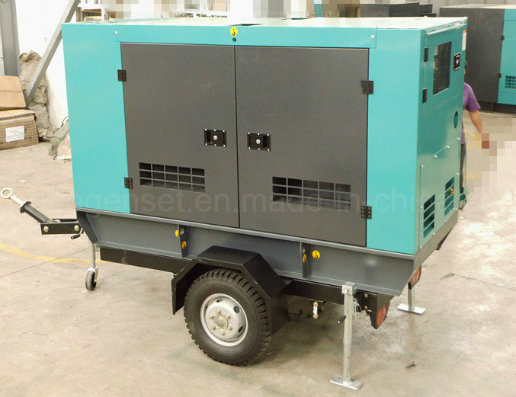

Small Silent 50kw Diesel Generator with Trailer for Move
| Price: |
US $ 10200/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description
1.International Warranty Service
2. Short delivery time
3. With ISO9001& CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
| KVA | KW | KVA | KW |
| OCL-63 | 63 | 50 | 60 | 48 | 4BTA3.9-G2 | LTG224D1 | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wires
Generator set specifications| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 215(12.5) |
| Starting Battery Capacity ,A/hrhhr | 60*2 |
| Total Coolant Capacity ,L | 24 |
| Fuel Capacity (base tank),L | N/A |

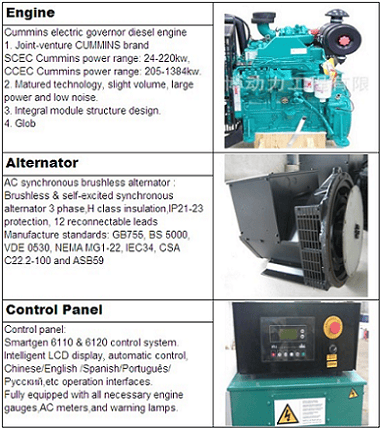

Engine Data| Model | 4BTA3.9-G2 |
| Type | In-line 4 Cylinder, 4 Cycle |
| Displacement ,L | 3.9 |
| Compression Ration | 16.5:1 |
| Aspiration | Turbo, Water / Air cooling |
| Fuel System | AD type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 102*120 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 16.4 |
| Coolant Capacity, L | 24 |
Alternator Data| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |
Exhaust System| Exhaust air flow | 14.8m3/min |
| Exhaust Temperature | 497ºC |
| Max Back Pressure | 10kPa |
Air Intake System| Max Intake Restriction | 6.2kPa |
| Burning Capacity | 5.9m3/min |
| Air Flow | 158m3/min |
Lubricant System | Total Lubricant Capacity | 16.4L |
| Lubricant Consumption | ≤4g/kwh |
| Engine Oil Tank Capacity | 14.3L |
| Oil Pressure at Rated Speed | 350kPa |
Cooling System| Total Coolant Capacity | 24L |
| Thermostat | 83-95ºC |
| Max Water Temperature | 100ºC |
|
|
|
FAQ(Frequently Asked Question): 1. What is your warranty period?Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period. 2. Does your generator have global warranty?Yes, most of our products like Cummins diesel generator enjoy the global warranty service. And the alternator we use like Leateck also enjoy the global warranty service, so you do not need to worry about the aftersales service. 3. Can you accept OEM?Yes, we can accept OEM. 4. What is your payment terms? We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. 5. What is your delivery time? Our normal delivery time is 20 to 25 days. But if your order is some special engine and alternator, then the delivery time is longer. Contact Details:FOSHAN ORIPO POWER ENGINEERING CO.,LTD
Contact person:Janet
Mobile:+8618923200408
Fax:0757-28791208Web:en.oripo.com
| Prod Model: |
OCL-63 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Dimension: |
2500*1000*1602mm |
| Alternator: |
Leateck/Stamford |
| Insulation Grade: |
H |
| Protection Grade: |
IP21-23 |
| Start System: |
Electric Start |
| Controller: |
Smartgen |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
