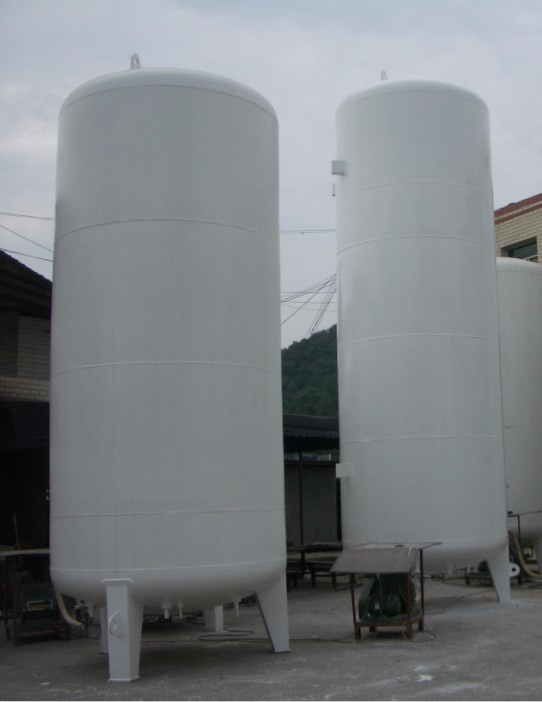

Liquid air separation plant
Specifications
1. Leading technical level, perfect technical development group.
2. Successful experience of made many plants
1. Small sized air separation plant: Product is oxygen and nitrogen, the size is KDON-60Y/60Y~KDON-500Y/500Y
2. Small-medium size air separation plant: Product is oxygen and nitrogen, the size is KDON-500Y/500Y~KDON-1000Y/1000Y
3. Full liquid air separation plant
4. Hight purity nitrogen generate plant
This plant adopts low pressure processing, cryogenic technique and rectifying to gain pure liquid oxygen, nitrogen from air. That is to use the theory of turbo-expander chilling cycling to liquefy air. According to different boiling point of liquid oxygen and liquid nitrogen, re-distilling in the rectification tower, gain oxygen of 99.6% purity and 99.9% purity of nitrogen or above. According to the need, changing the operation can gain part liquid oxygen, liquid nitrogen or medical oxygen.
We can also design products according to users' demand.
|
Model contents |
KLN-
8Y |
KLN-
30Y |
KDON-
100Y/100Y |
KDON-
200/200Y |
KDON-
300Y/300Y |
KDON-
500Y/500Y |
KDON-
800Y/800Y |
KDON-
1000Y1000Y |
|
Lo2 flow |
L/h |
-- |
-- |
100 |
200 |
300 |
500 |
800 |
1000 |
|
Lo2 purity |
%(o2) |
-- |
-- |
99.6 |
99.6 |
99.6 |
99.6 |
99.6 |
99.6 |
|
Lox pressure |
Mpa |
-- |
-- |
~0.03 |
~0.03 |
~0.25 |
~0.25 |
~0.25 |
~0.25 |
|
LN2 flow |
L/h |
8L/h |
30L/h |
Or 100 |
Or 200 |
Or 300 |
500 |
Or 800 |
1000 |
|
LN2 purity |
%(N2) |
99.9 |
99.9 |
99.999 |
99.999 |
99.999 |
99.999 |
99.999 |
99.999 |
|
LN2 pressure |
Mpa |
Ordinary pressure |
Ordinary
pressure |
~0.025 |
~0.025 |
~0.4 |
~0.4 |
~0.4 |
~0.4 |
|
Start-up time |
h |
1 |
2 |
5-8 |
8-12 |
-16 |
-22 |
-20 |
-26 |
|
Operating period |
year |
-- |
-- |
≥2 |
≥2 |
≥2 |
≥2 |
≥2 |
≥2 |
Hangzhou Union Industrial Gas-equipment Co., Ltd. Are a technology enterprise specialized in R&D, design and manufacture of various air separators and cryogenic application equipments. Our company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. On the basis of integration into advanced design concept and strict management procedure and the outstanding production technique and give the enthusiastic service support. Decisive adoption of new processes, new technology, the R&D and manufacturing capability of the company is enhanced and the development is oriented to the Saving Energy variety and perfection of the products.
The products of the company cover the fields of metallurgy, petrochemical industry, electronics, machinery, construction material, Medicine, New materials which have been well received all over the country and also been supplied to many Asian and African countries(Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania). The main products are: the medium and small size oxygen nitrogen plants, liquid oxygen and liquid nitrogen plants, oxygen and nitrogen liquefaction plants, high purity nitrogen generators, molecular sieve pressure swing adsorption plants and PSA (VPSA) oxygen (nitrogen) plants.
In addition to provide high-quality products, our company also undertakes technical consulting, engineering design, equipment installation, technical training and other services, and implementation of the turn-key project. Sincerely welcome your contact and visit to the company.
